Diamond - CT-1000 Bench Crimper
Diamond - CT-1000 Bench Crimper
Plymouth
68 Shops at 5 Way
Plymouth MA 02360
United States
Choose options
Diamond - CT-1000 Bench Crimper:

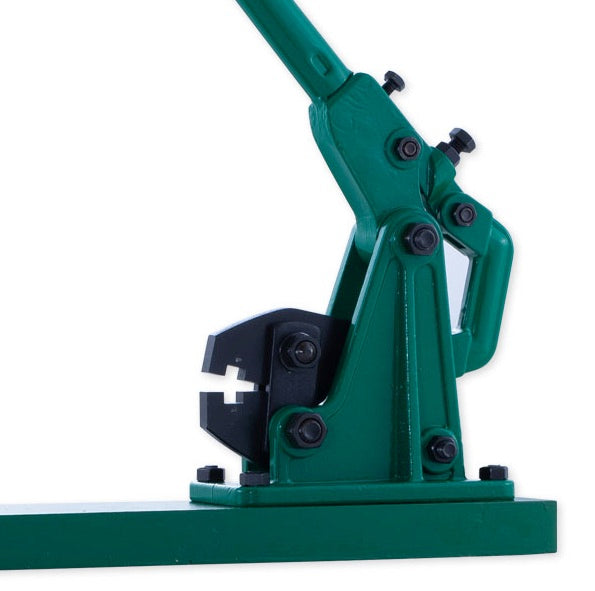

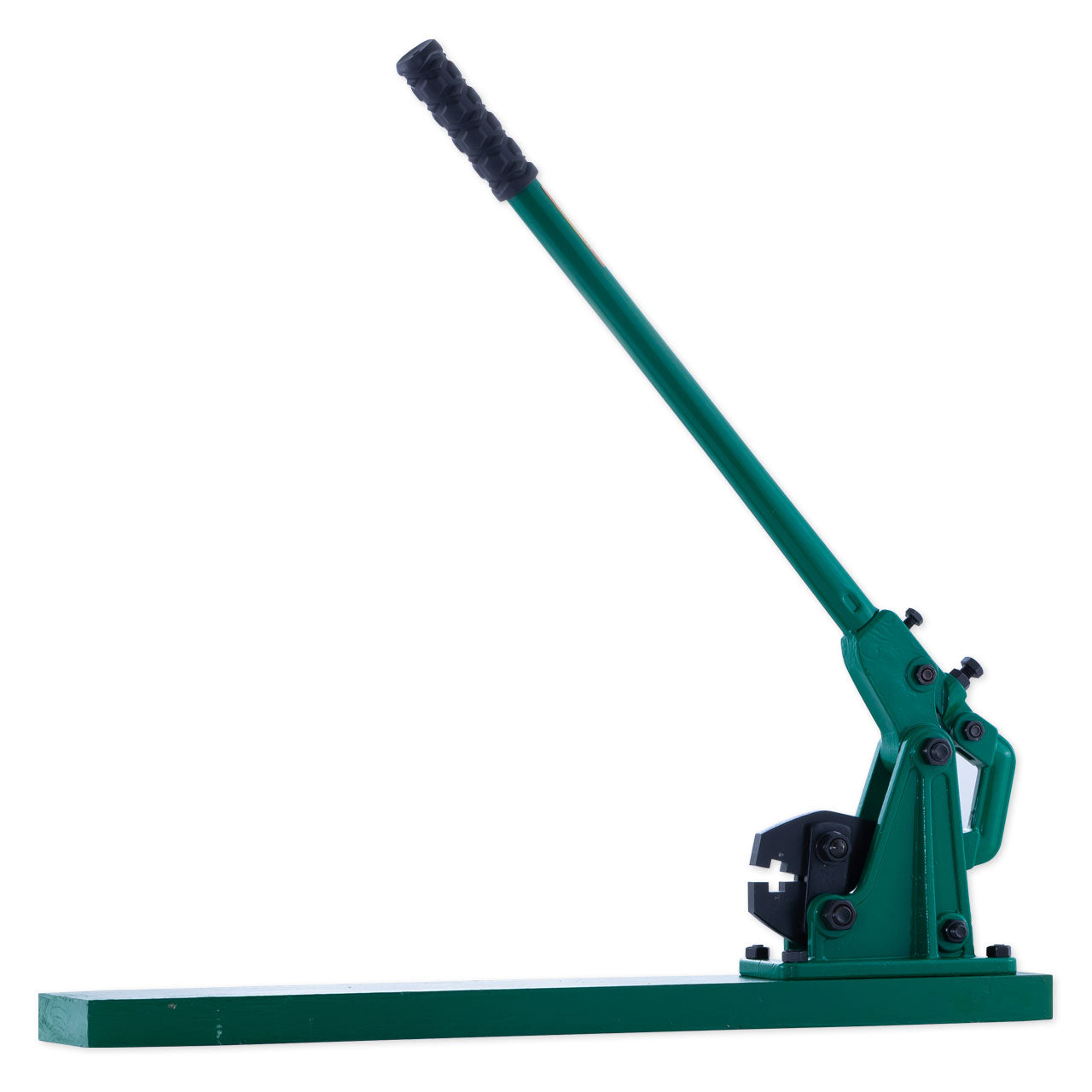

The CT-1000 Heavy Duty Bench Crimper is a fully adjustable crimping tool that accepts both pinned and glue-in dies for crimping long aluminum sleeves. It features all steel construction and is mounted to a sturdy wooden base.
Perfect for your rigging bench at home, or the tackle room on the sporty, this is a tool that ensures you have the best connection possible when money is on the line. Whether you're re-rigging spreader bars, stingers, marlin leaders, daisy chains, or any heavy tackle, you'll be at the top of your game with this tool.
*Note: Crimping dies sold separately
Features:
- Sturdy wooden base for stability on a work surface
- Interchangeable dies allow you to transition between different tests of gear
- Perfect for hitting long crimps in one motion
- Fully adjustable
Specifications:
Die Set | Hole Size | Sleeve Size | Monofilament Diameter | Appx. Mono LB Test |
G | 3.3mm | 1.5mm | 1.28mm-1.4mm | 100-200lb |
F | 3.6mm | 1.7mm | 1.4mm-1.7mm | 200-250lb |
E | 3.9mm | 2.0mm | 1.7mm-2.0mm | 300lb |
D | 4.3mm | 2.3mm | 2.0mm-2.2mm | 400lb |
