Shimano - SpeedMaster II Conventional Reels:
The extremely durable, high-performance SpeedMaster II boasts a high maximum drag power combined with a smooth, ultra-wide range of drag adjustability to make it a true fish-fighting machine.
The new SpeedMaster II is constructed with a rigid HAGANE Body to prevent misalignment of moving parts under the heaviest loads. Plus, a spare drag cam is included for optimal performance for anglers fishing with monofilament lines.
Features:
- HAGANE Body - The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
- S-Compact Body - S-Compact Body allows for all-day comfort and improved fishability by making the palming side plate up to 25% smaller than the A-Side plate.
- Super Free Spool - Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
- CoreProtect - Total Protection, the concept of CoreProtect is simple: to provide water resistance without creating a heavy rotational feeling. There are three key areas of the reel that require protection: the roller clutch, the body and the line roller.
- Cross Carbon Drag - The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
- S A-RB Bearings - S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
- Additional Drag Cam for Monofilament line to change drag curve (20II and 25II)
Specifications:
PRODUCT CODE | WEIGHT | POWERPRO LINE CAPACITY (lb/yds) | GEAR RATIO | MAX DRAG | MONO LINE CAPACITY (lb/yds) | RETRIEVE | HIGH GEAR RETRIEVE PER CRANK | LOWER GEAR RATIO | LOW GEAR RETRIEVE PER CRANK | BEARINGS |

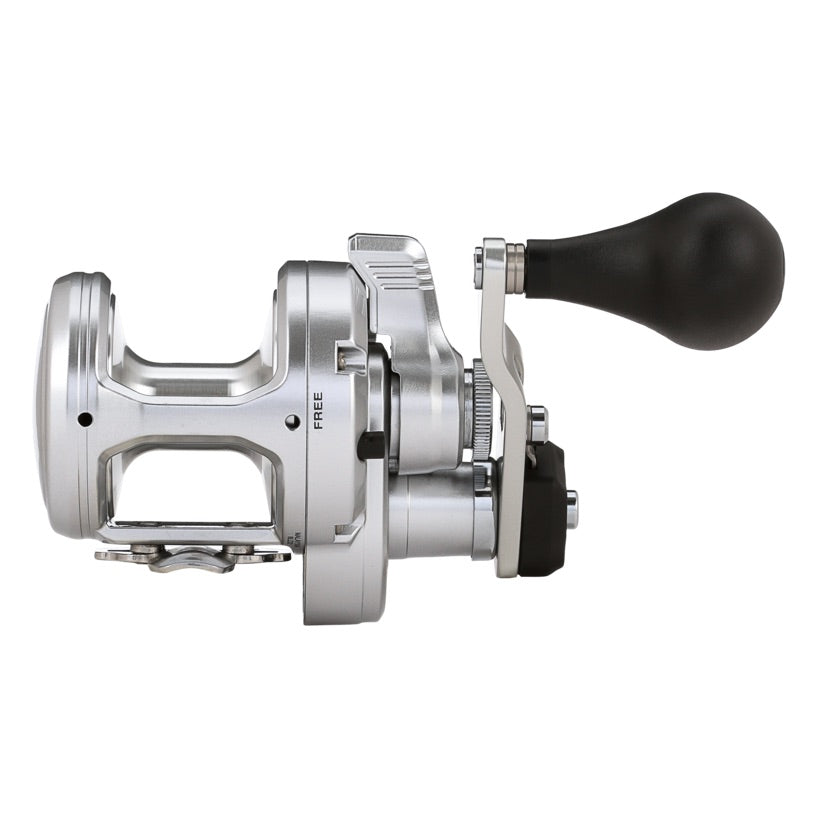

SPM8II | 18.5oz | 30-560, 40-440, 50-370 |
6.2:1 | 18lb | 15/280, 20/200, 25/165 | Right | 38in | 4.1:1 | 25in | 4 |
SPM10II | 19oz |
40-520, 50-440, 65-320 |
6.2:1 | 18lb | 20/270, 25/215, 30/180 | Right | 38in | 4.1:1 | 25in | 4 |
SPM12II |
25.7oz |
50/580, 65/400, 80/355 |
5.7:1 |
40lb |
20/350, 25/280, 30/230 |
Right |
42in |
3.1:1 |
23in |
4 |

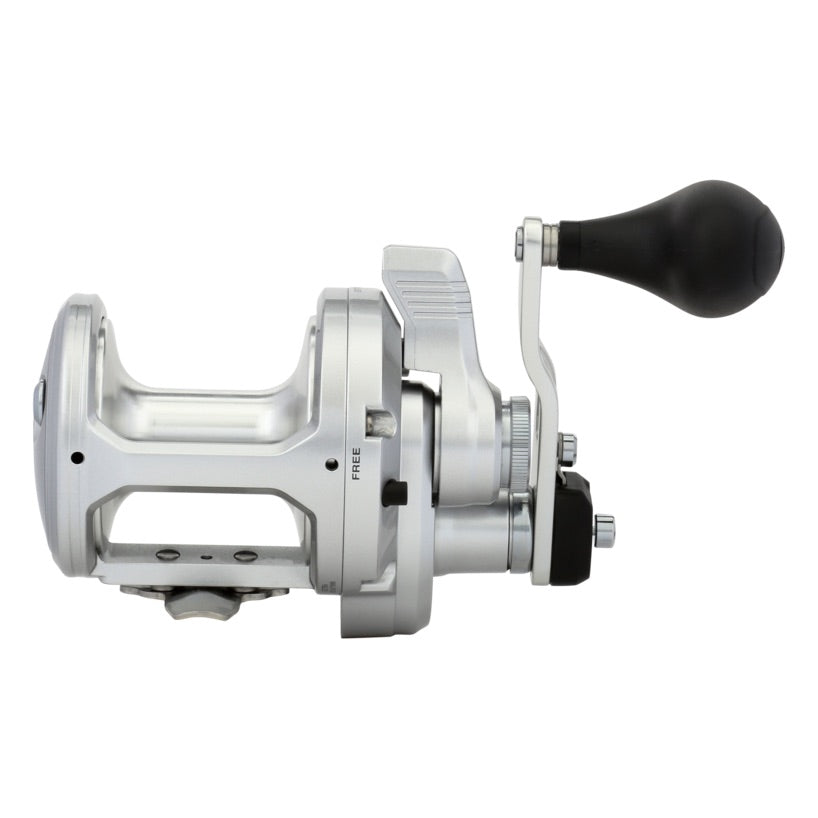

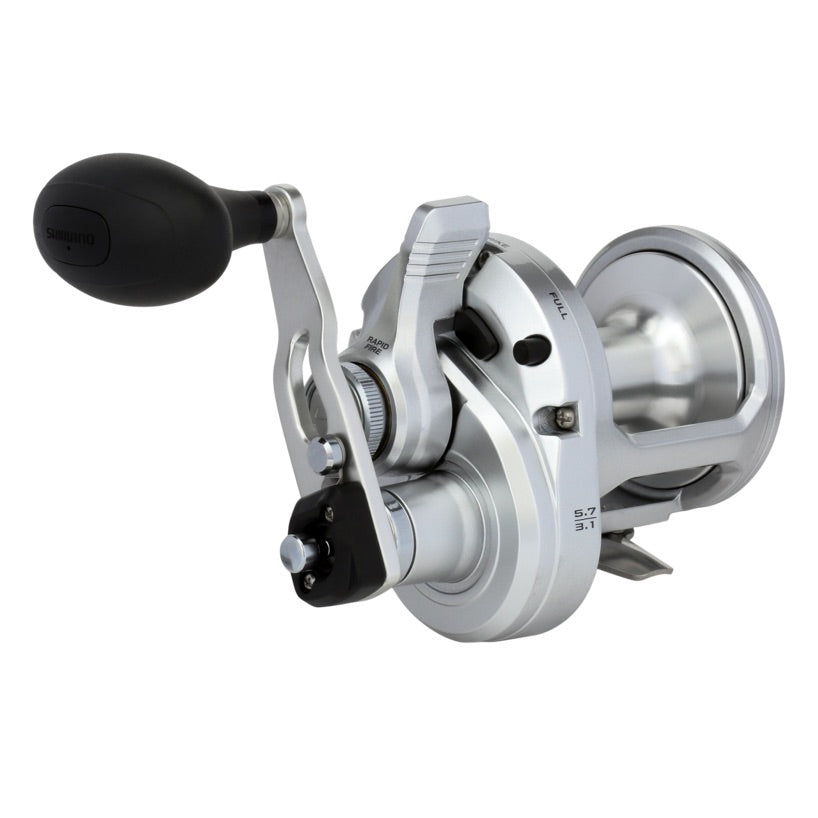

SPM16II |
26.5oz |
50/750, 65/550, 80/450 |
5.7:1 |
40lb |
20/440, 25/350, 30/300 |
Right |
42in |
3.1:1 |
23in |
4 |

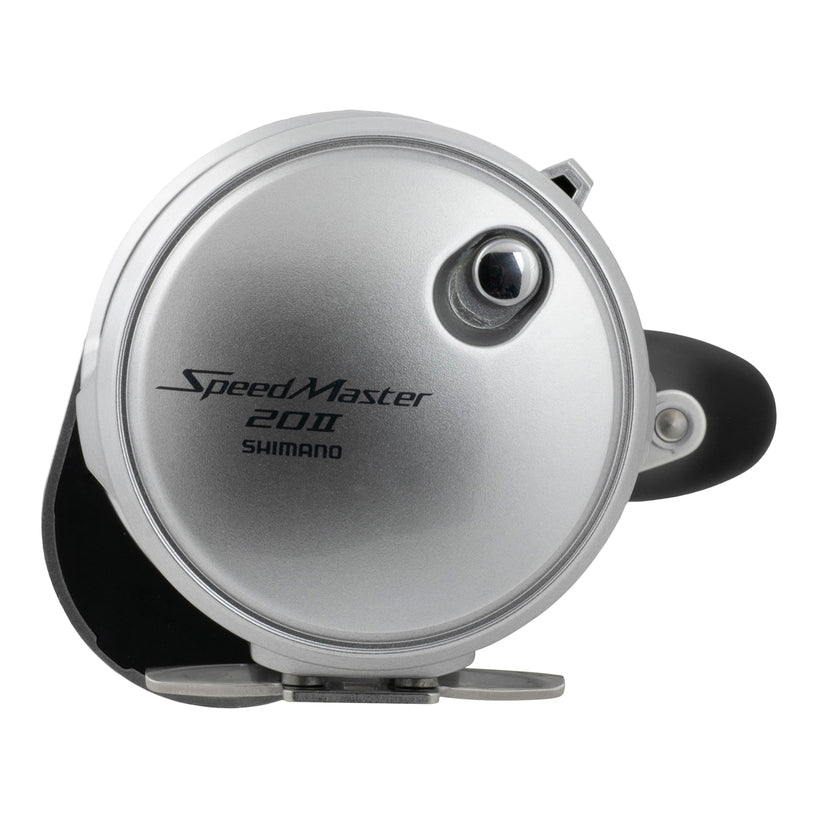

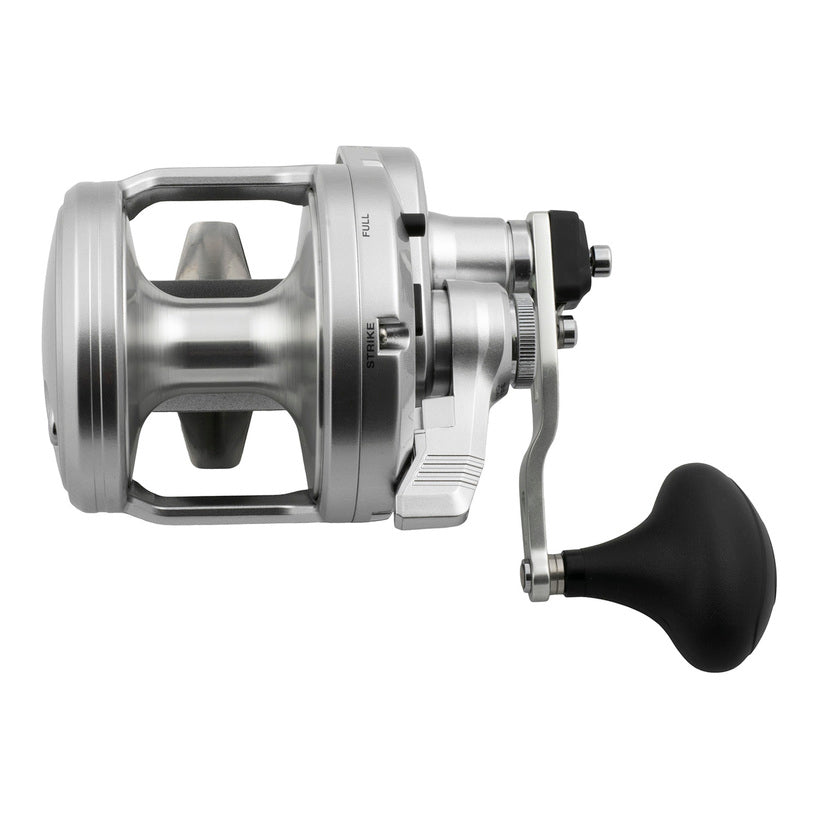

SPM20II |
34.6oz |
65/725, 80/575, 100/435 |
5.2:1 |
44lb |
30/470, 40/320, 50/260 |
Right |
47in |
2.3:1 |
23in |
4 |

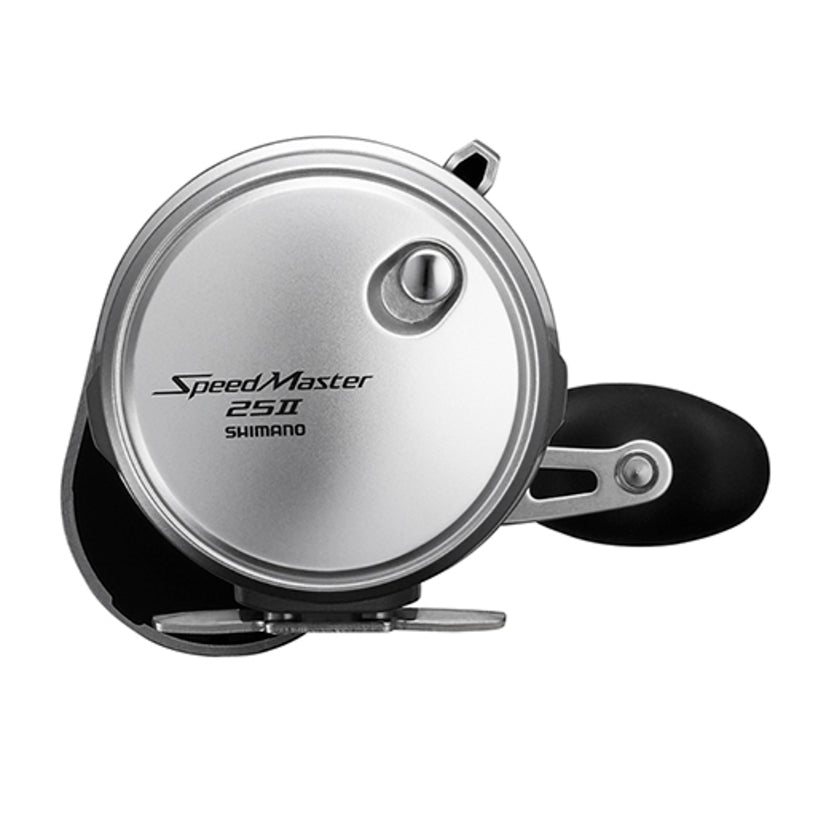

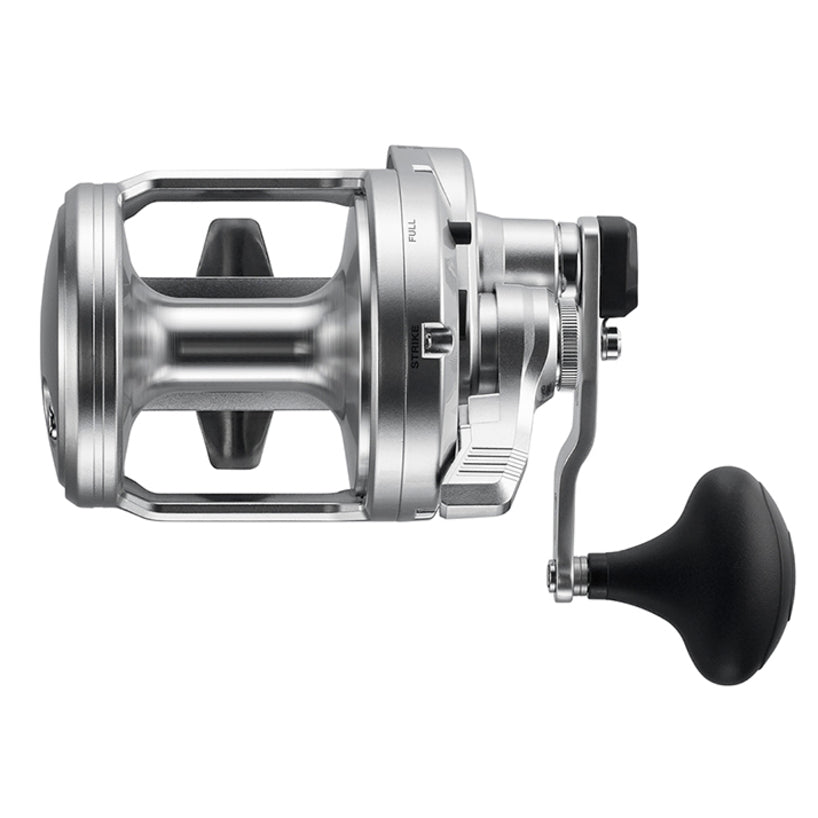

SPM25II |
36.2oz |
65/1010, 80/730, 100/470 |
5.2:1 |
44lb |
30/550, 40/420, 50/340 |
Right |
47in |
2.3:1 |
23in |
4 |
