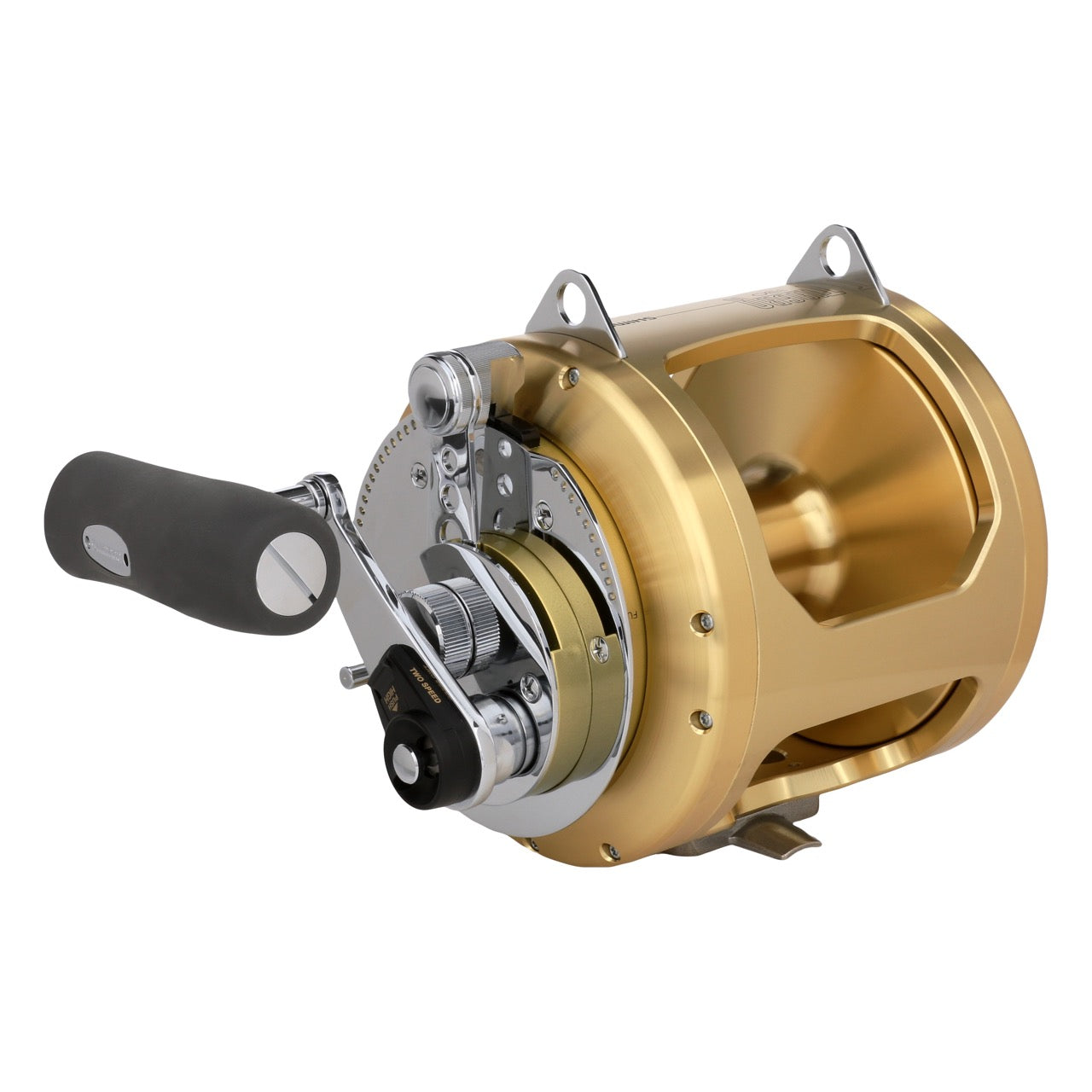

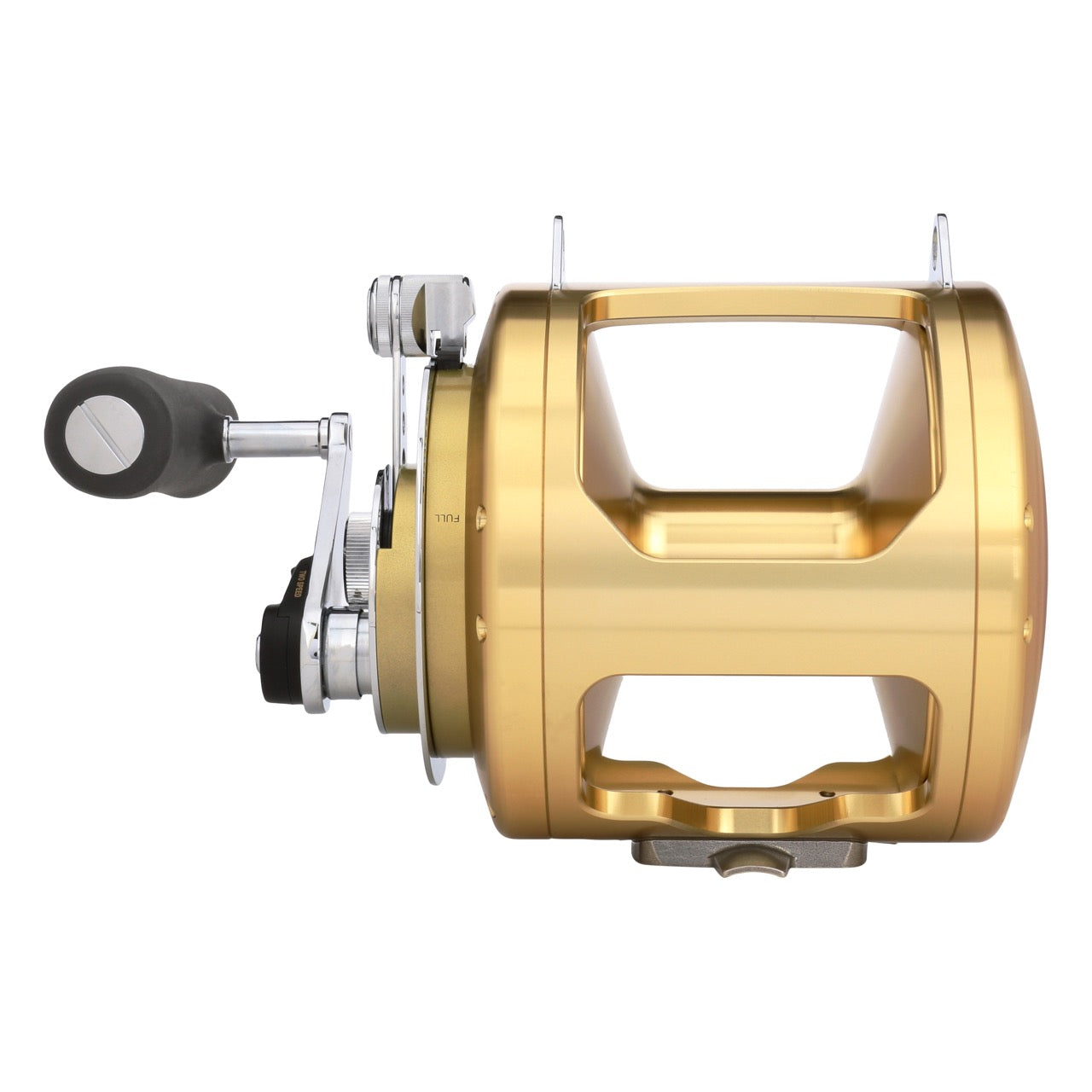

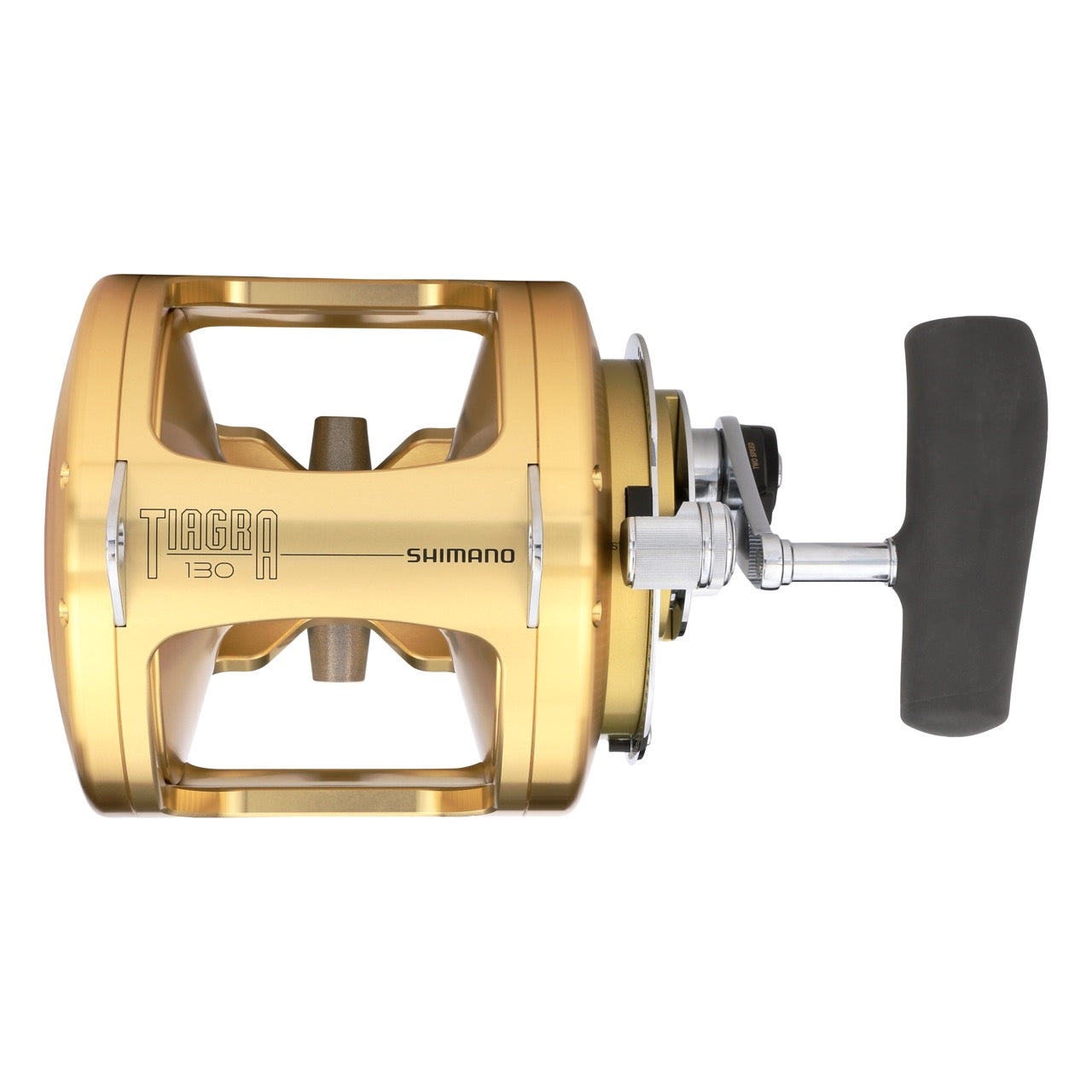

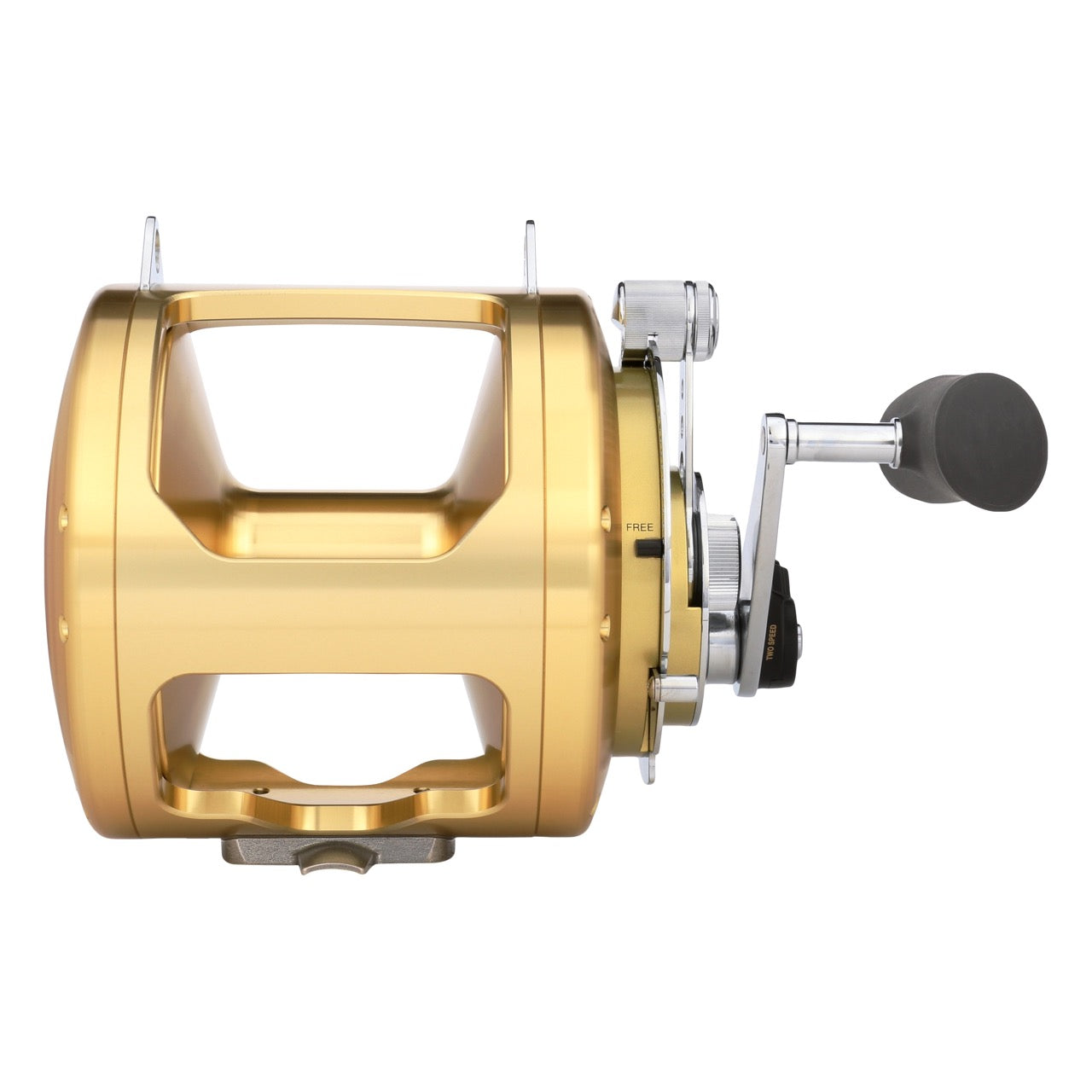

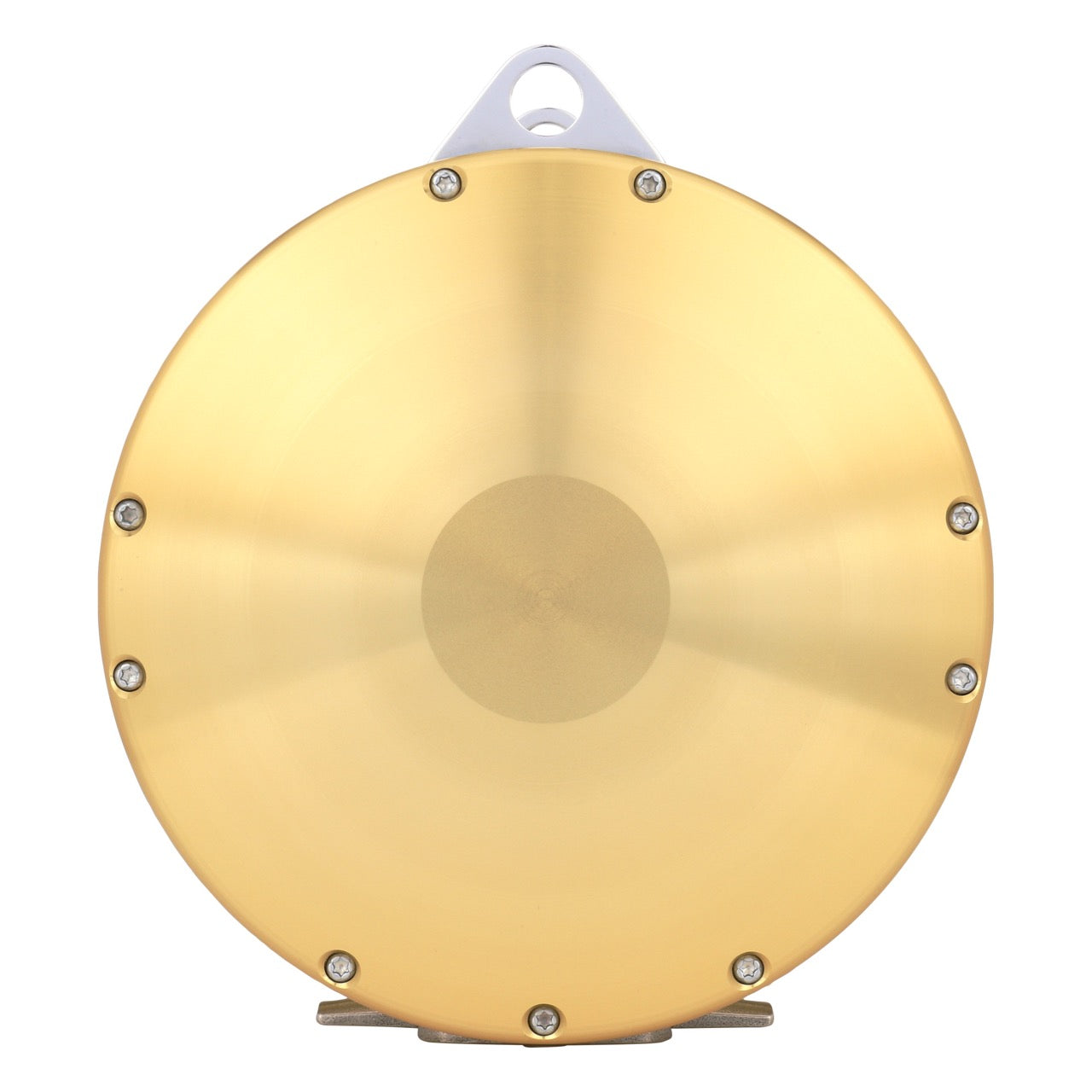

The number one choice of serious offshore anglers and captains, Tiagra reels feature an innovative hydrothermal drag system that virtually eliminates the drag setting variances that affect today's big-game reels. The Tiagra series offers the strength and reliability of a solid aluminum frame, making these reels ideal for fishing with heavier line for giant fish. These reels also perfectly suited for long-range fishing.

Features:

HAGANE Body - The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
HEG - HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.
Cross Carbon Drag - The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
EI - Shimano's proprietary surface treatment of the spool and body to provide more than double the corrosion resistance compared to a conventional surface treatment.
A-RB Bearings - A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing. These bearings will last at least 10 times longer than standard stainless-steel ball bearings in high salinity environments.

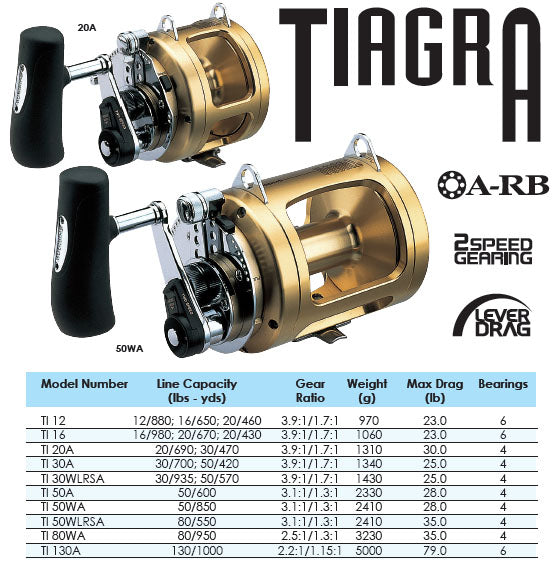

Specifications:

PRODUCT CODE	WEIGHT	POWERPRO LINE CAPACITY	GEAR RATIO	MAX DRAG	MONO LINE CAPACITY (lb/yds)	RETRIEVE	LINE RETRIEVE PER CRANK	LOWER GEAR RATIO	LOWER LINE RETRIEVE PER CRANK	BEARINGS
TI16	37.4oz	50/1210, 65/680, 80/520	3.9:1	31lb	16/980, 20/670, 30/430	Right	36in	1.7:1	16in	6
TI20A	49.7oz	50/1225, 65/720, 80/525	3.9:1	26lb	20/690, 30/470	Right	41in	1.7:1	18in	4

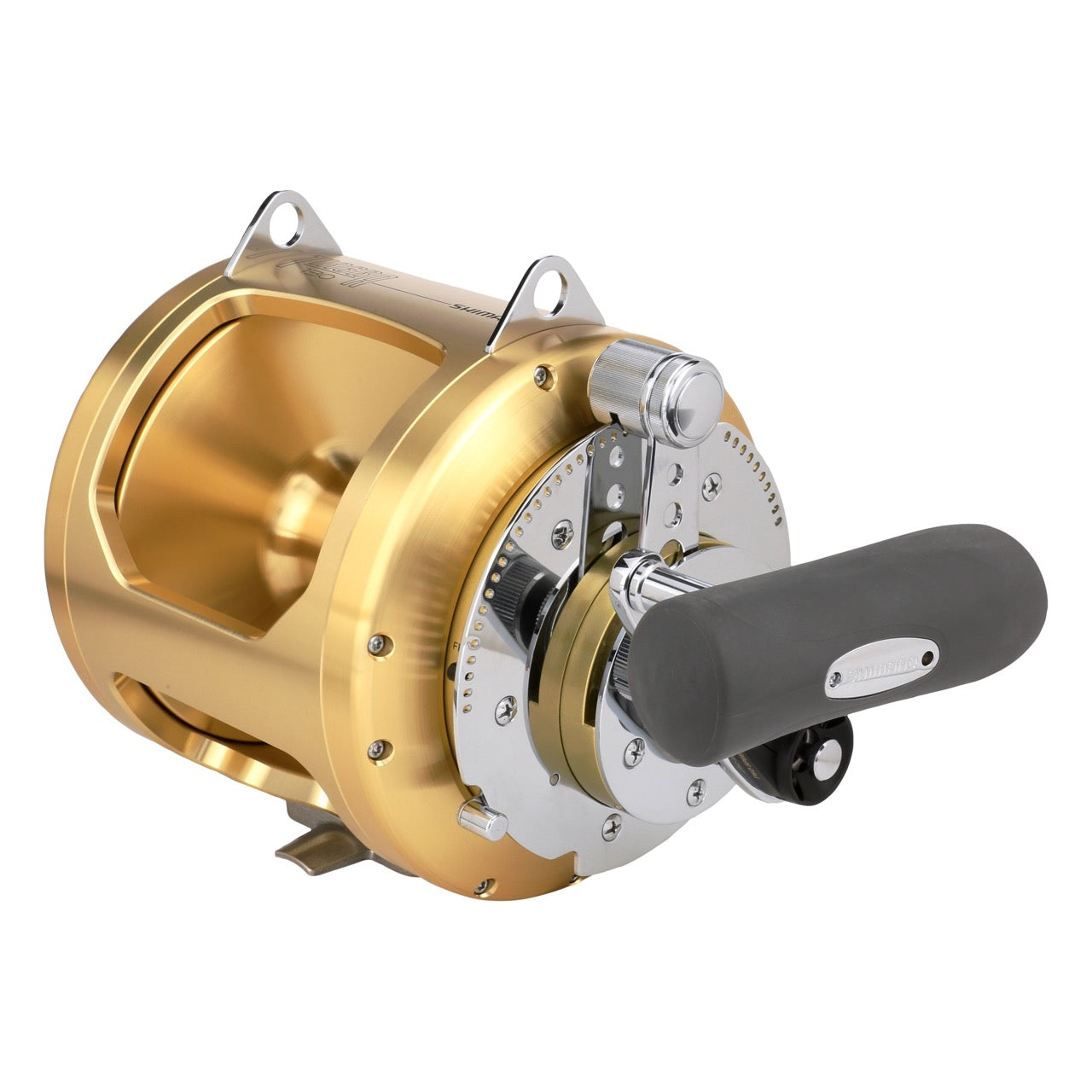

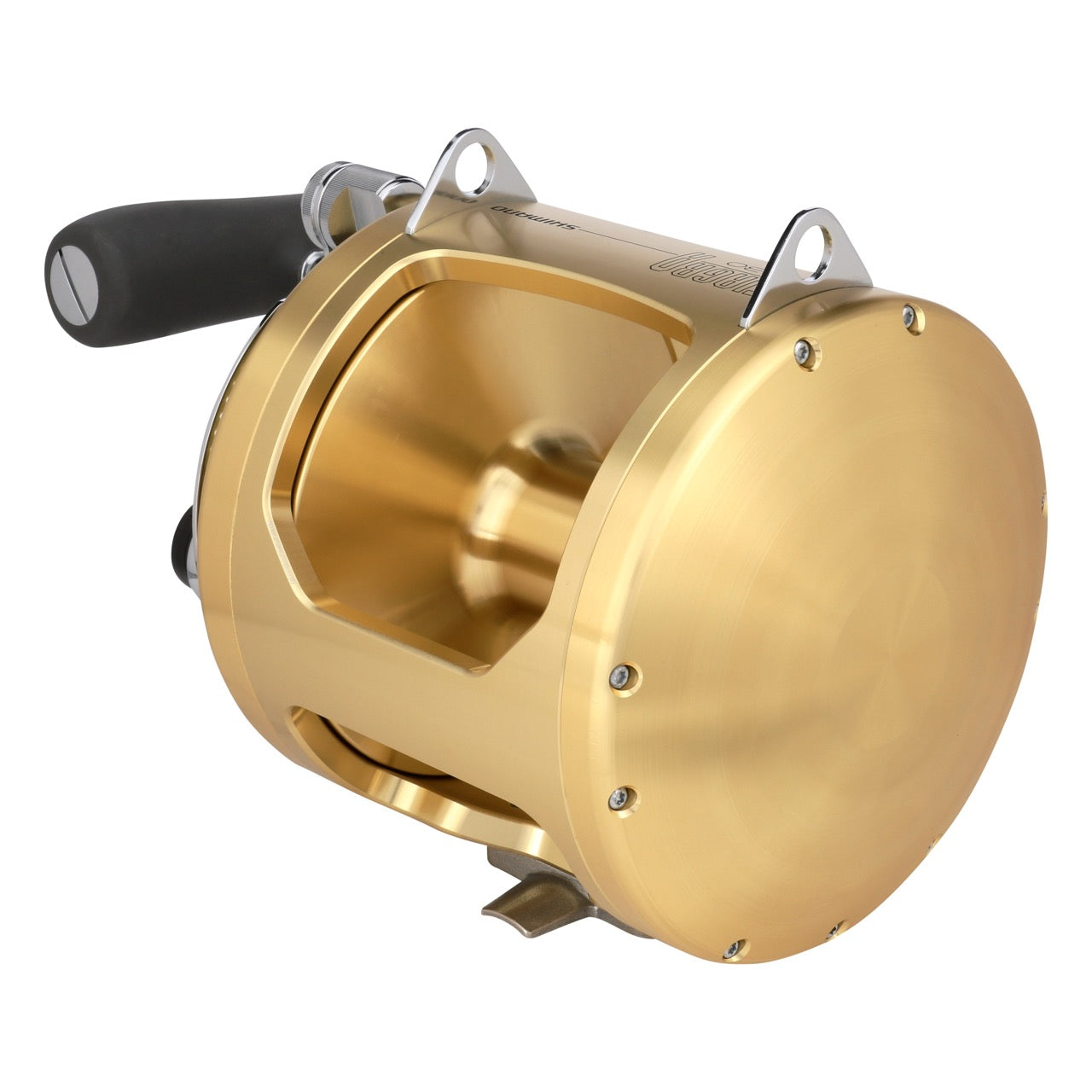

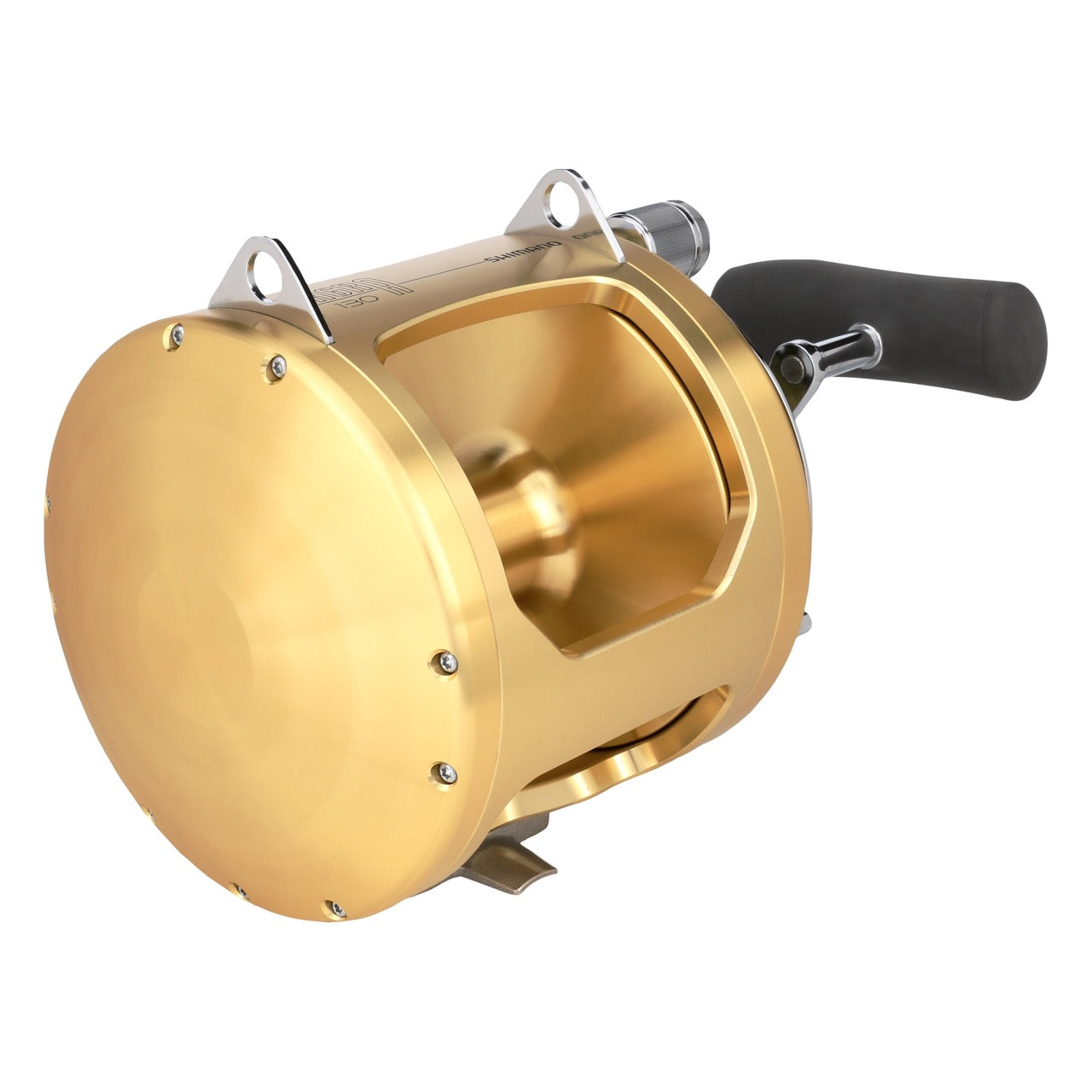

TI30A	52.4oz	50/1805, 65/1065, 80/770	3.9:1	35lb	30/700, 50/420	Right	41in	1.7:1	18in	4

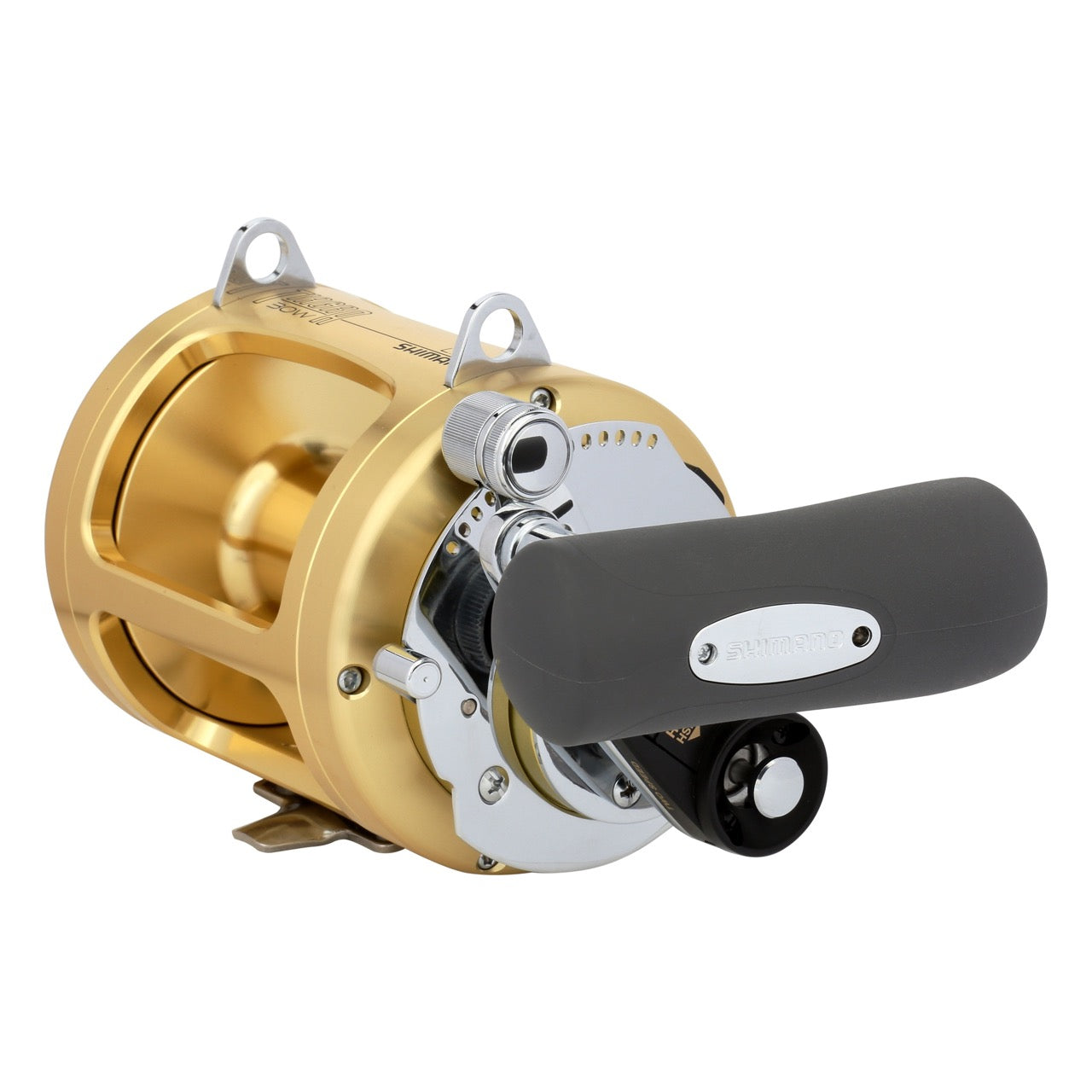

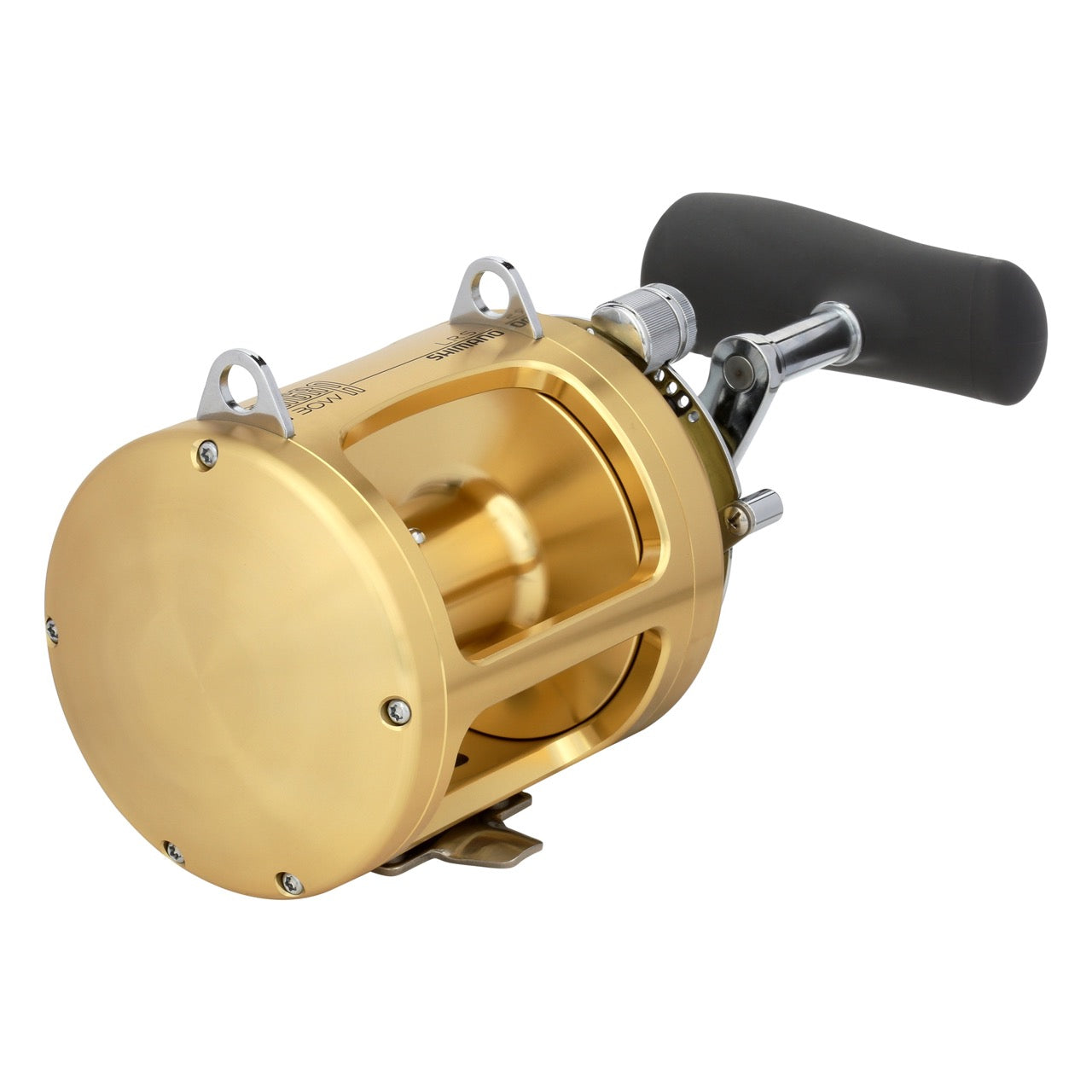

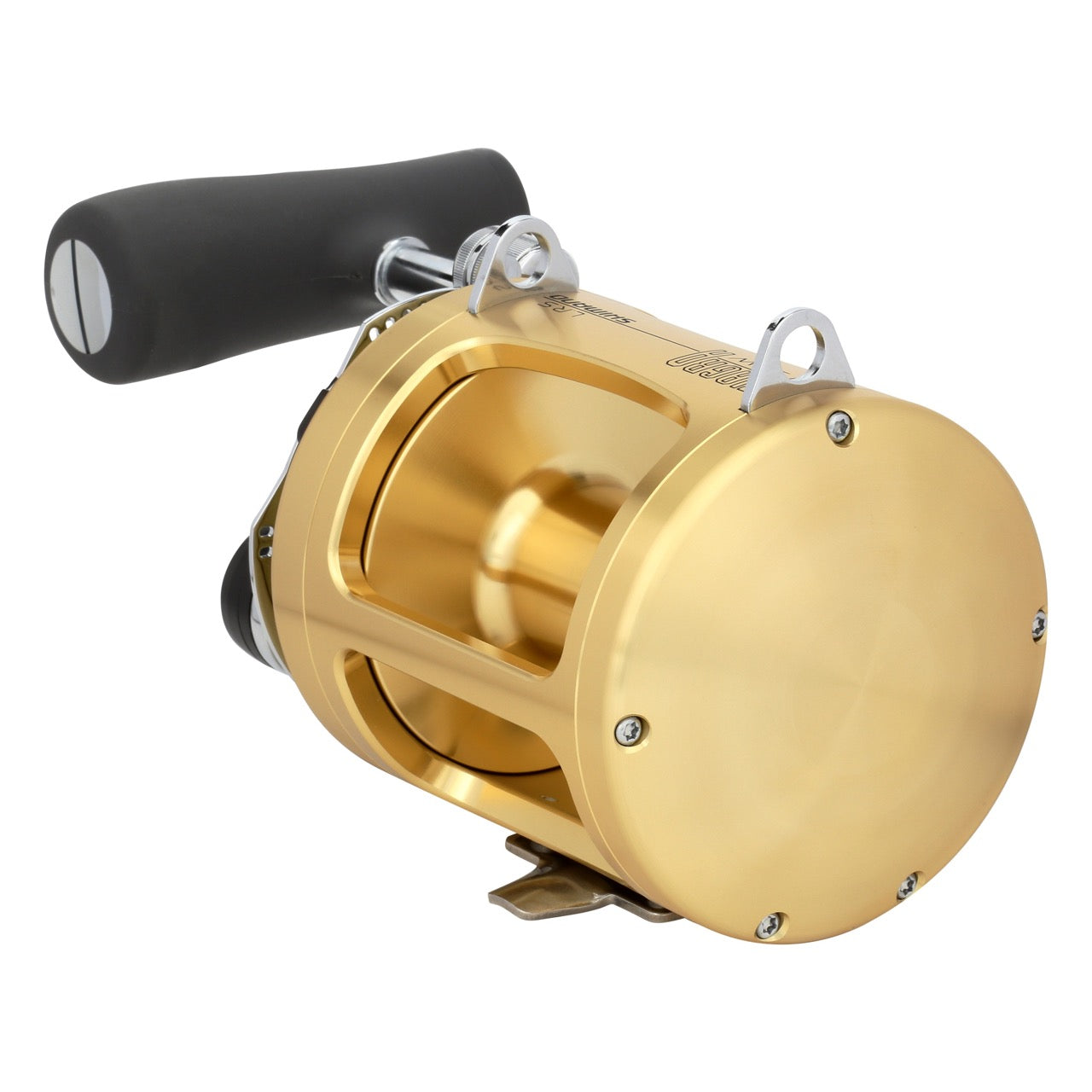

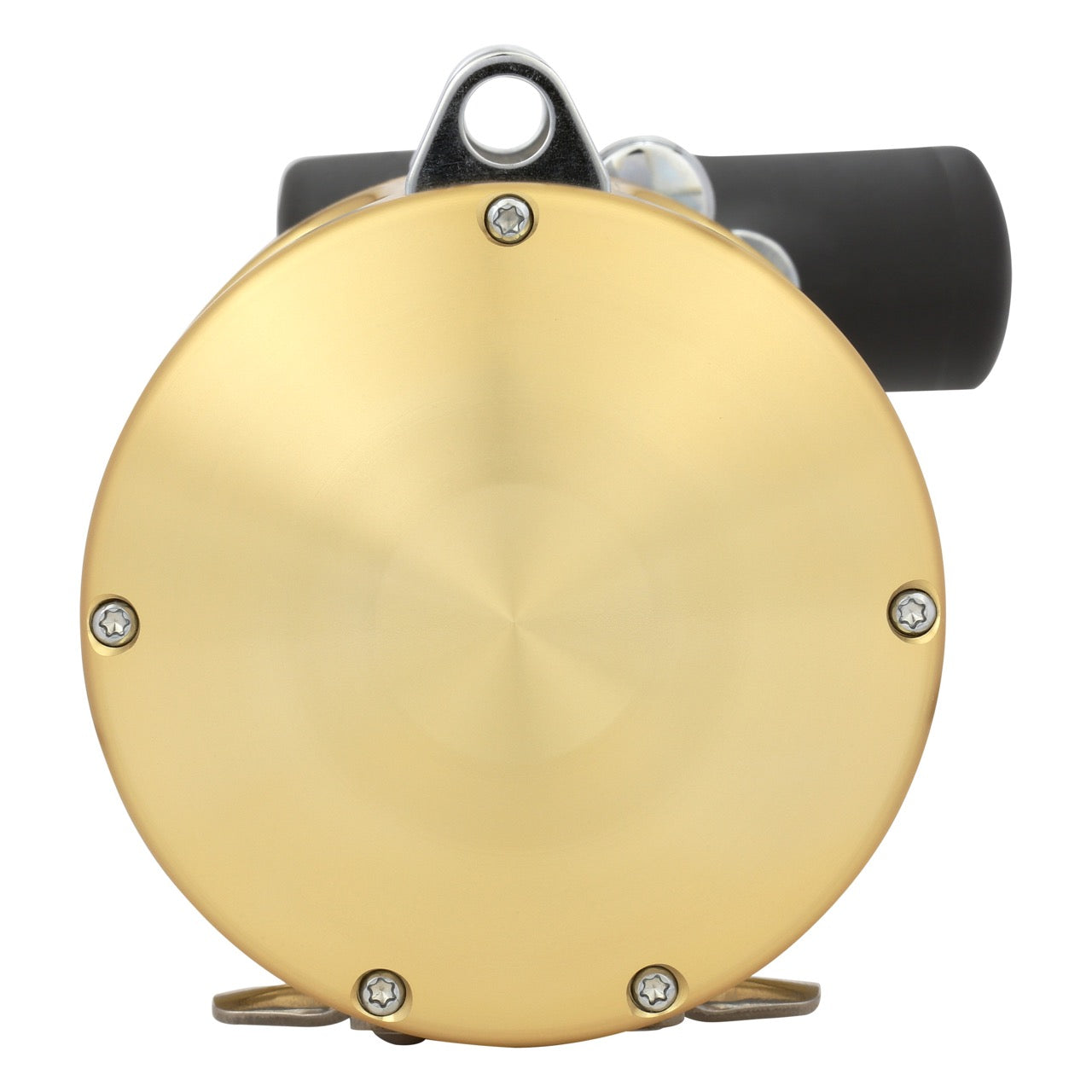

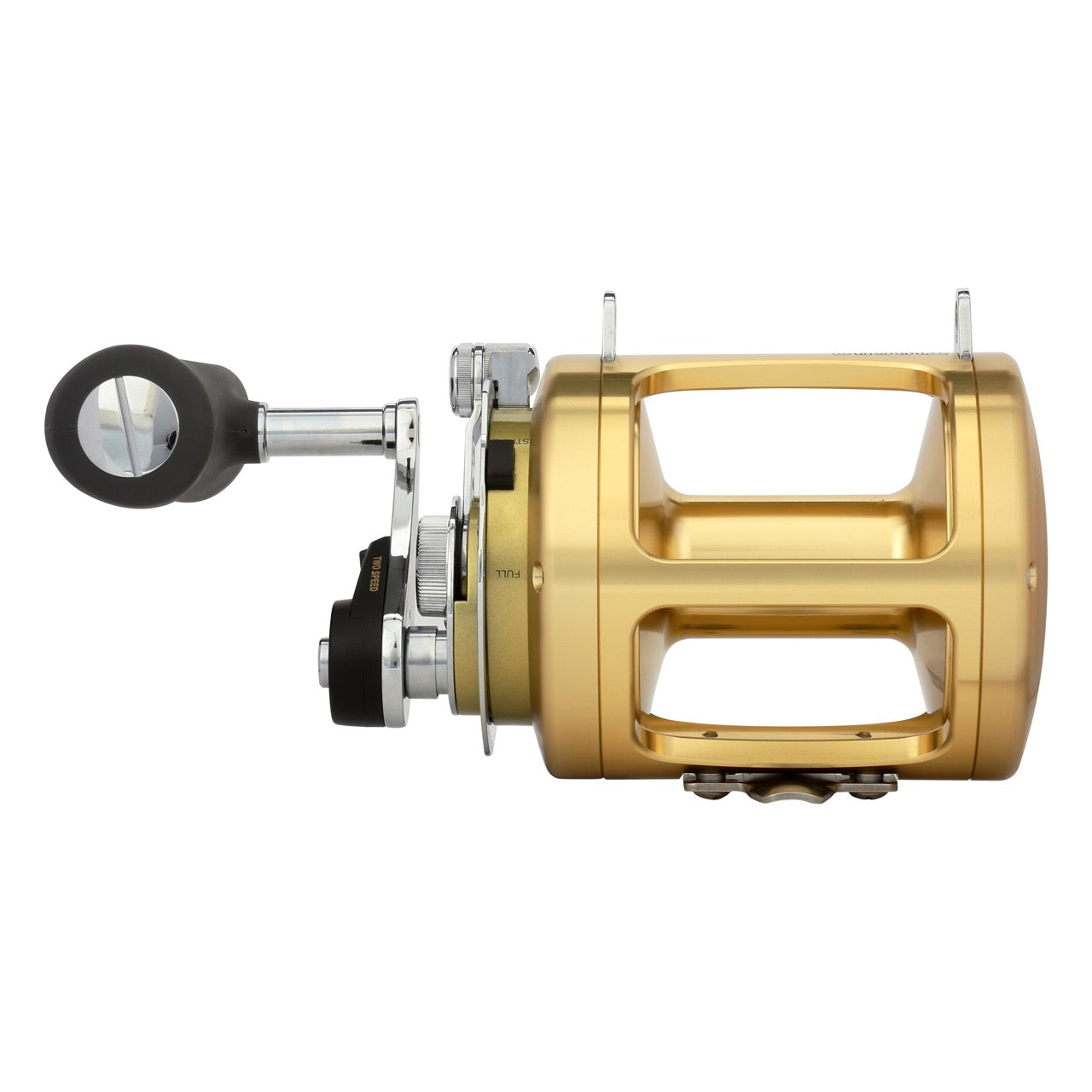

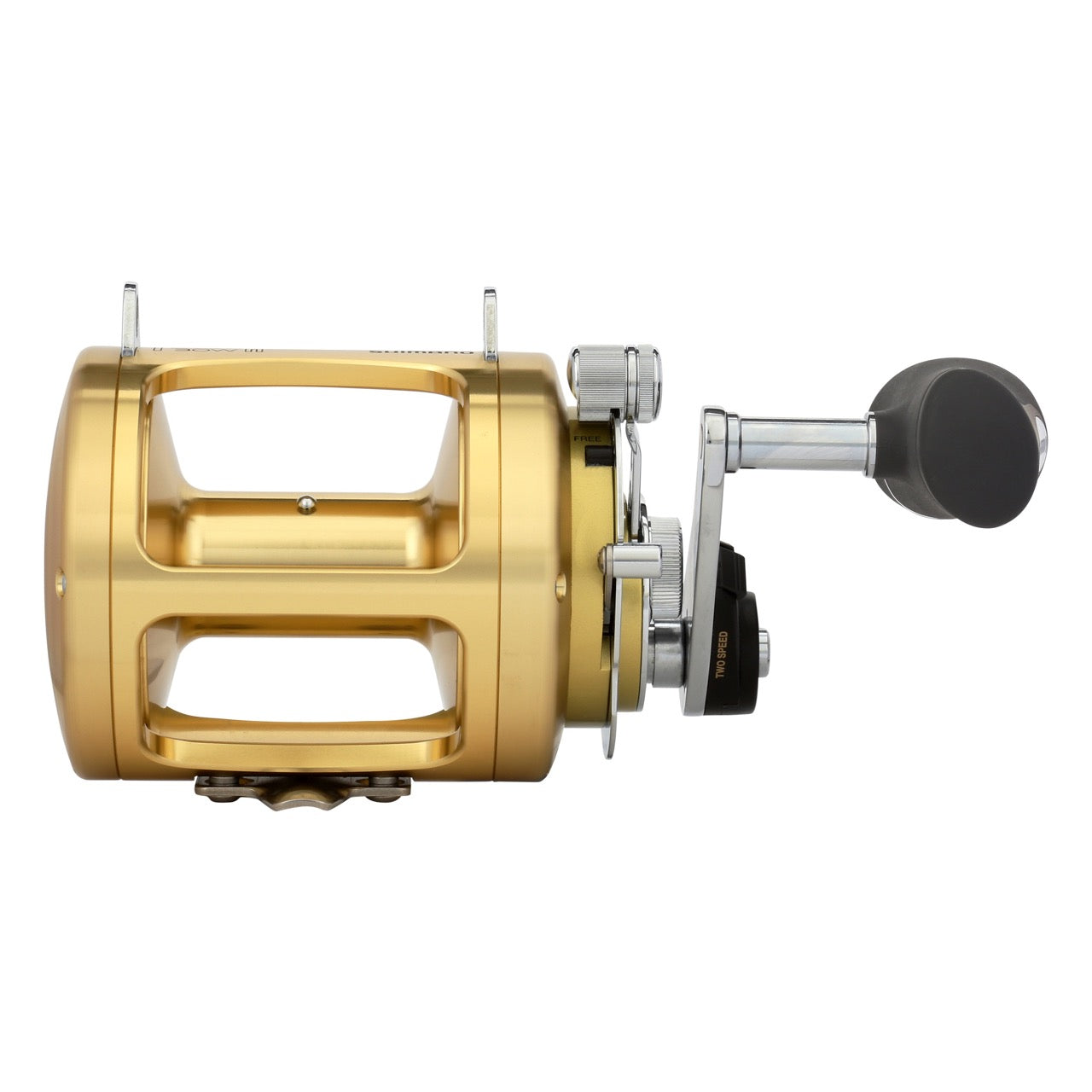

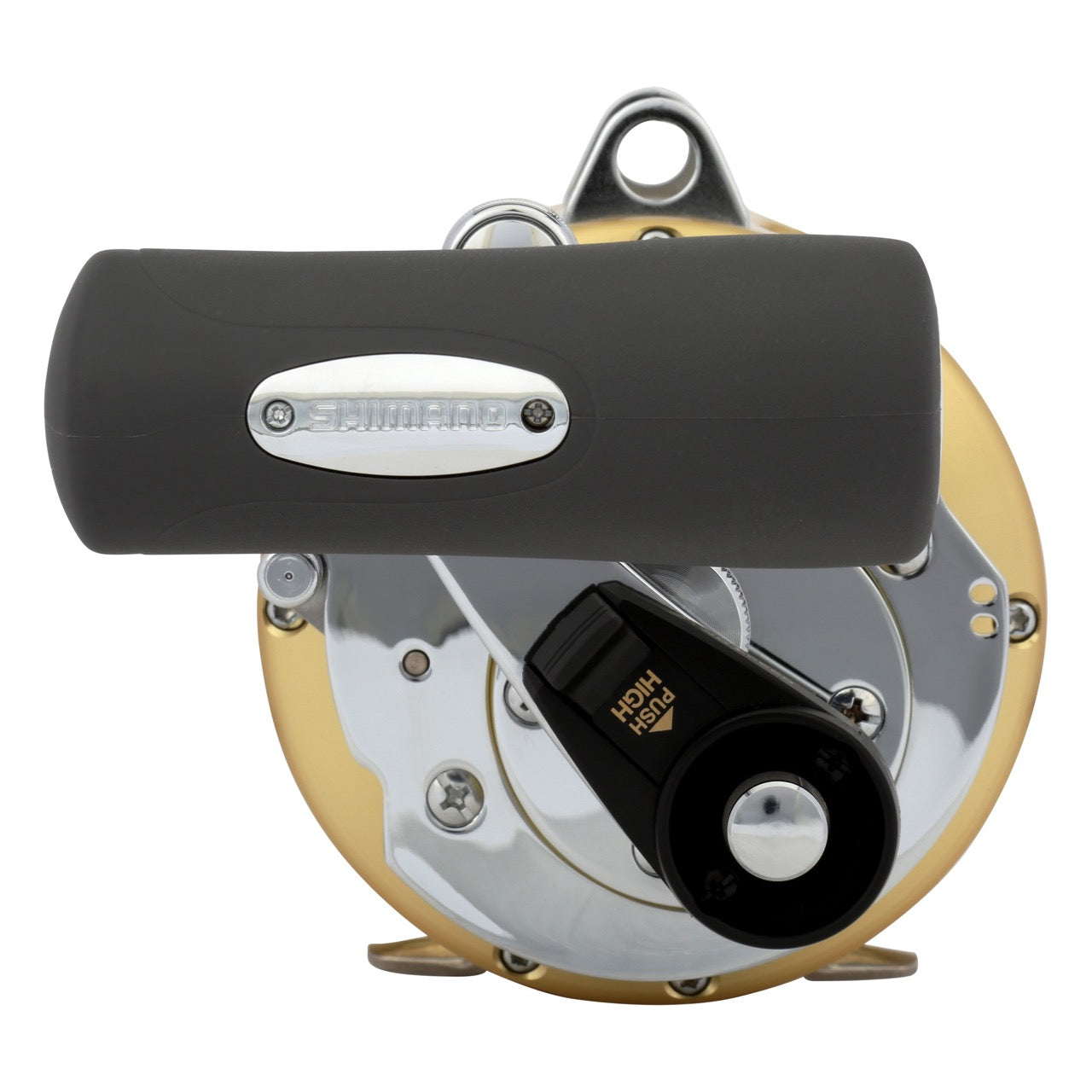

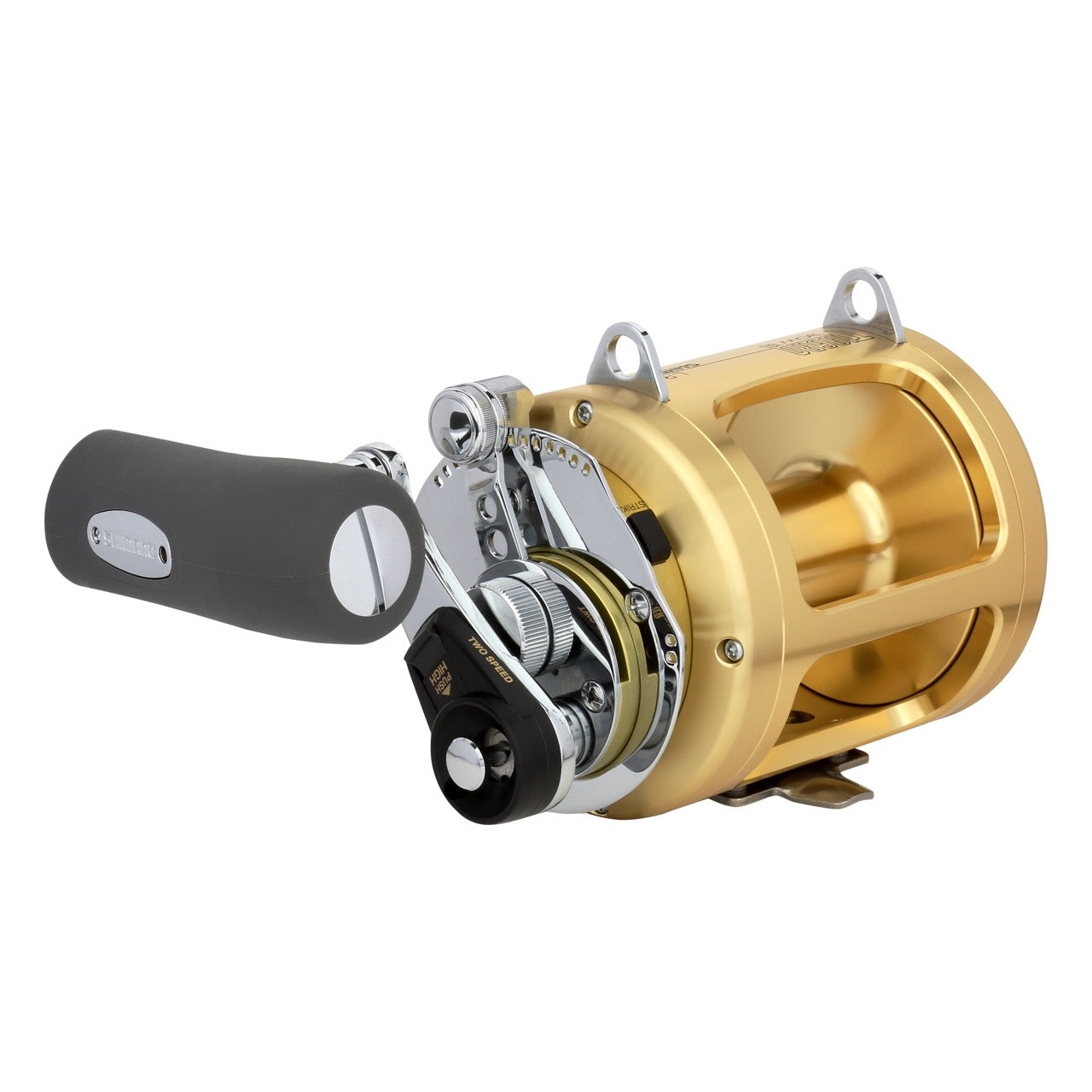

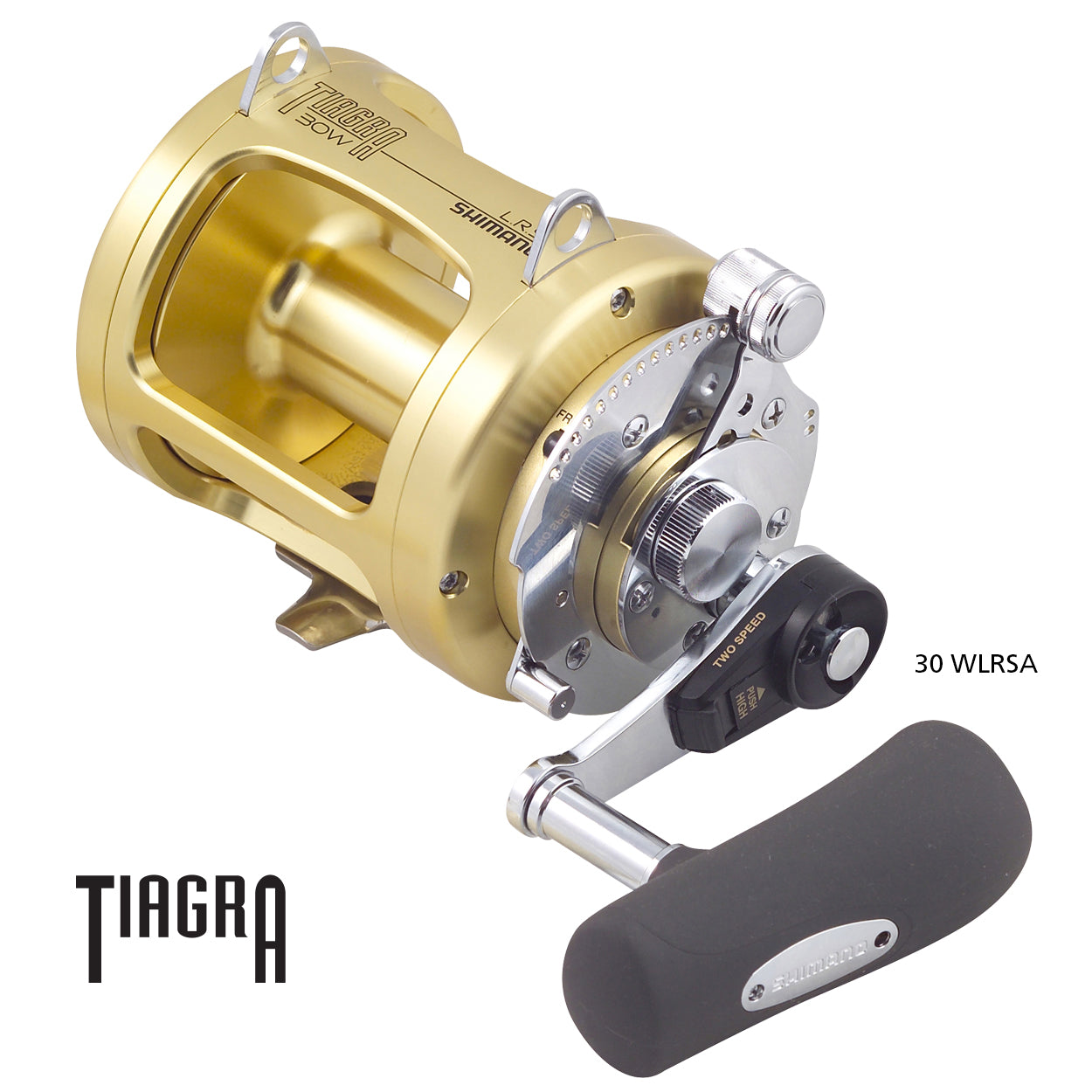

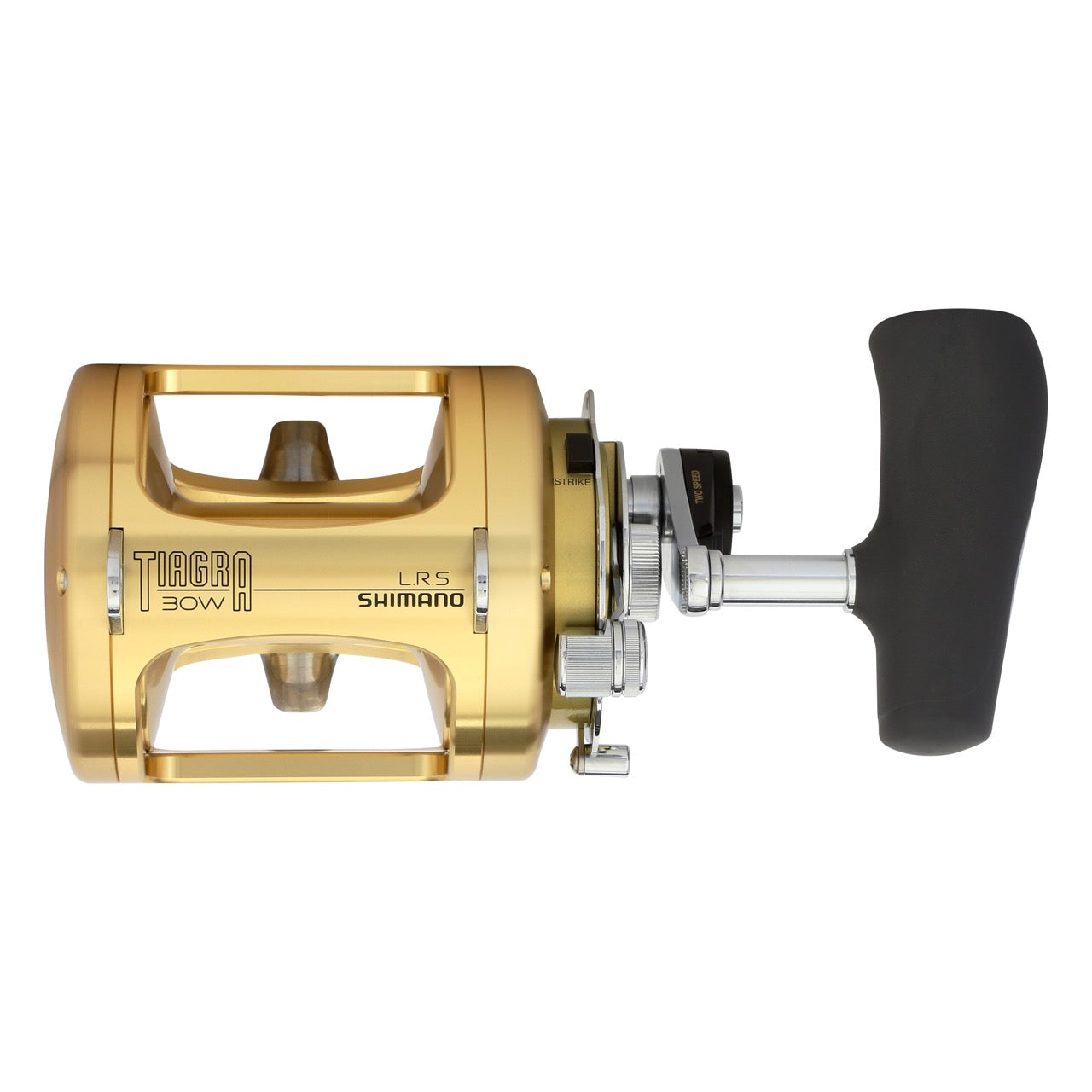

TI30WLRSA	55.6oz	65/1435, 80/1180, 100/865	3.9:1	35lb	30/935, 50/570	Right	41in	1.7:1	18in	4
TI50A	83.4oz	80/1135, 100/930, 150/865	3.1:1	26lb	50/600	Right	37in	1.3:1	15in	4

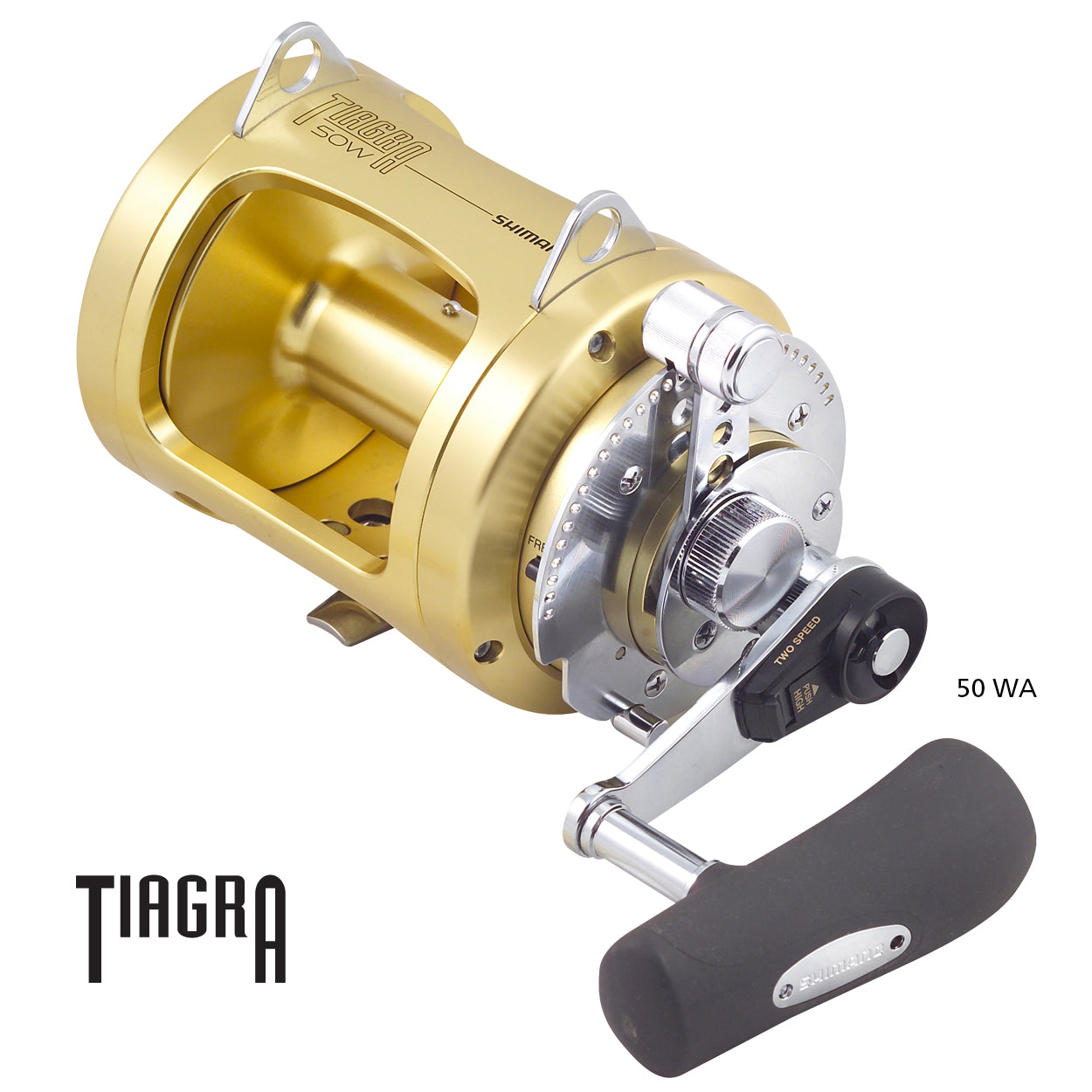

TI50WA	86.2oz	80/1575, 100/1235, 150/1180	3.1:1	26lb	50/850	Right	37in	1.3:1	15in	4

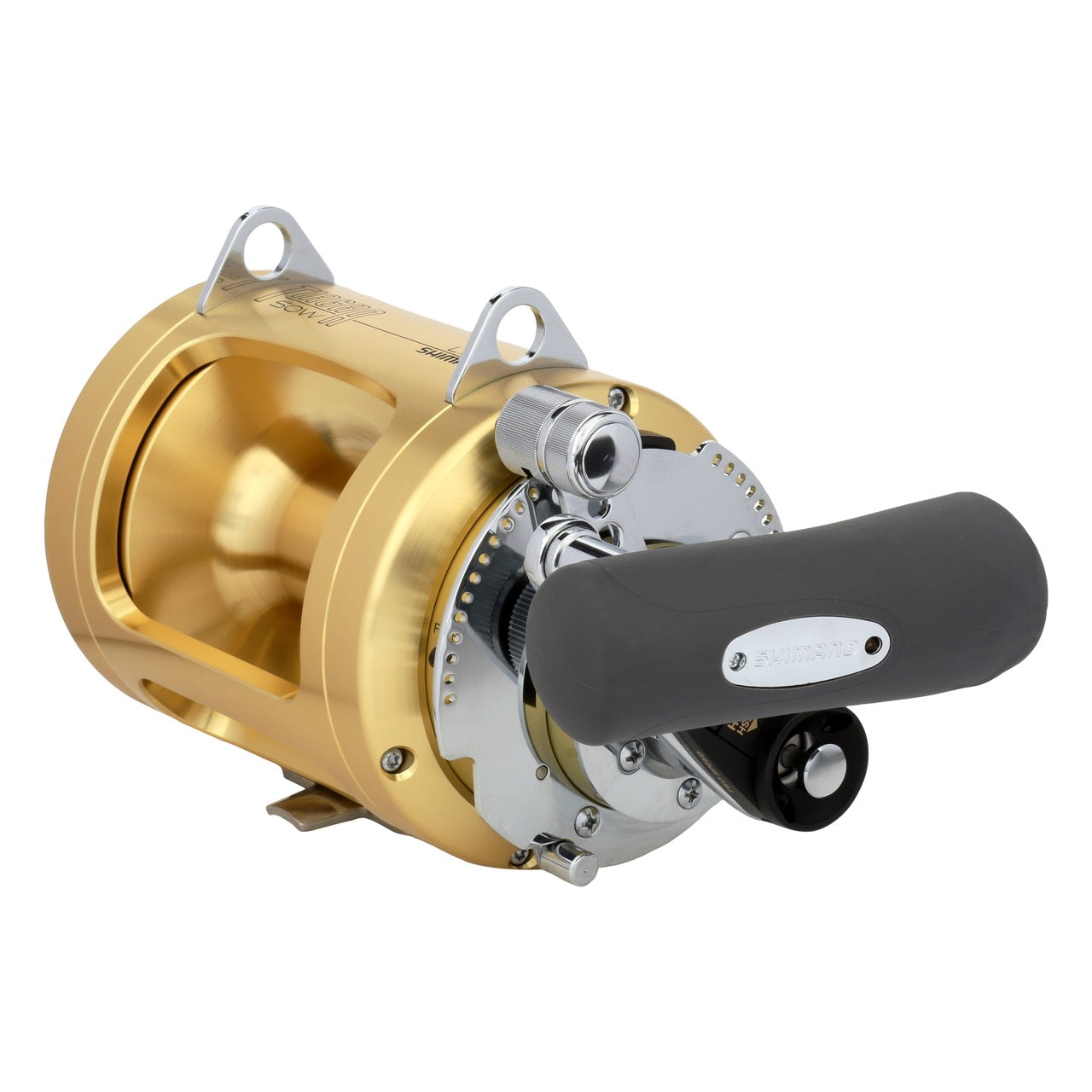

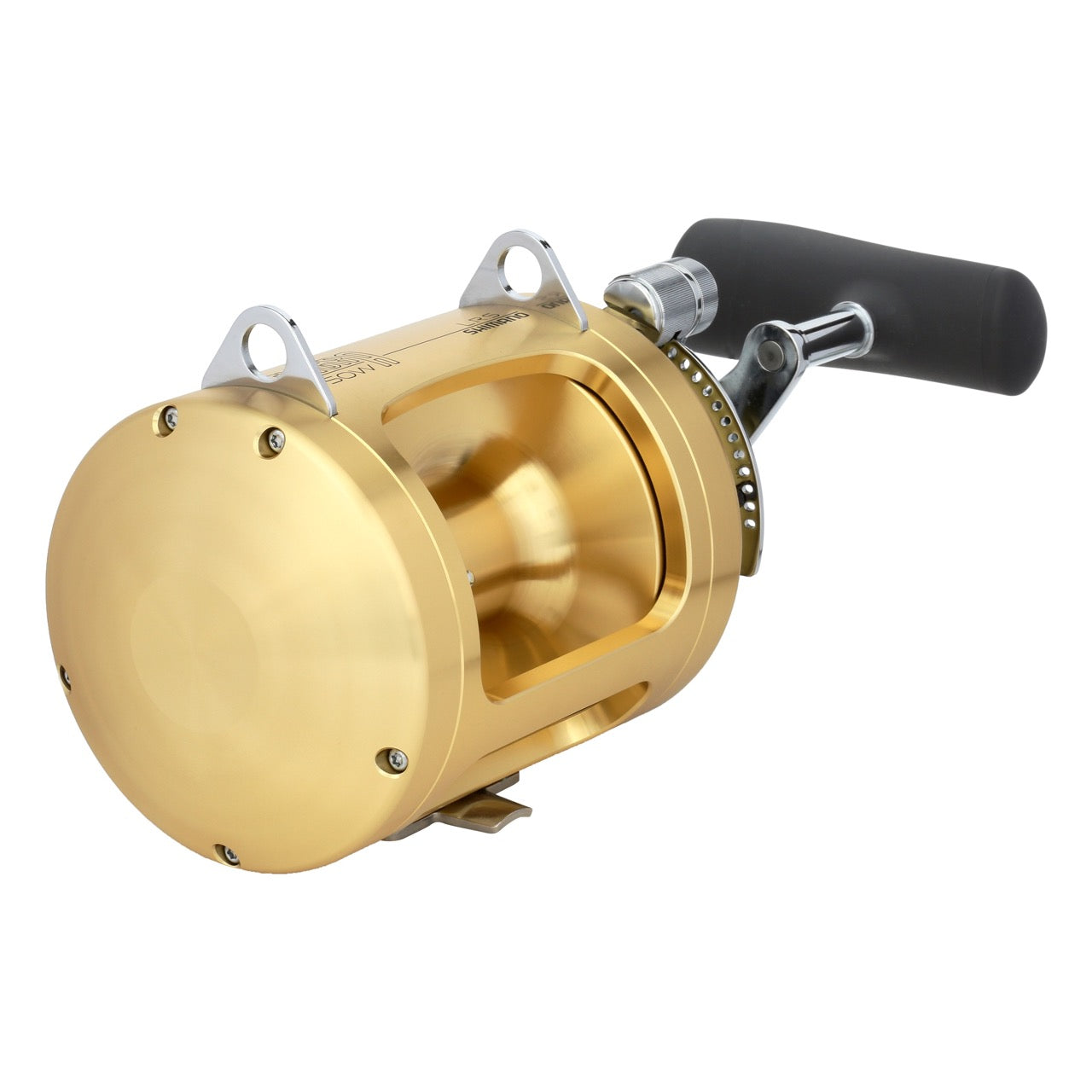

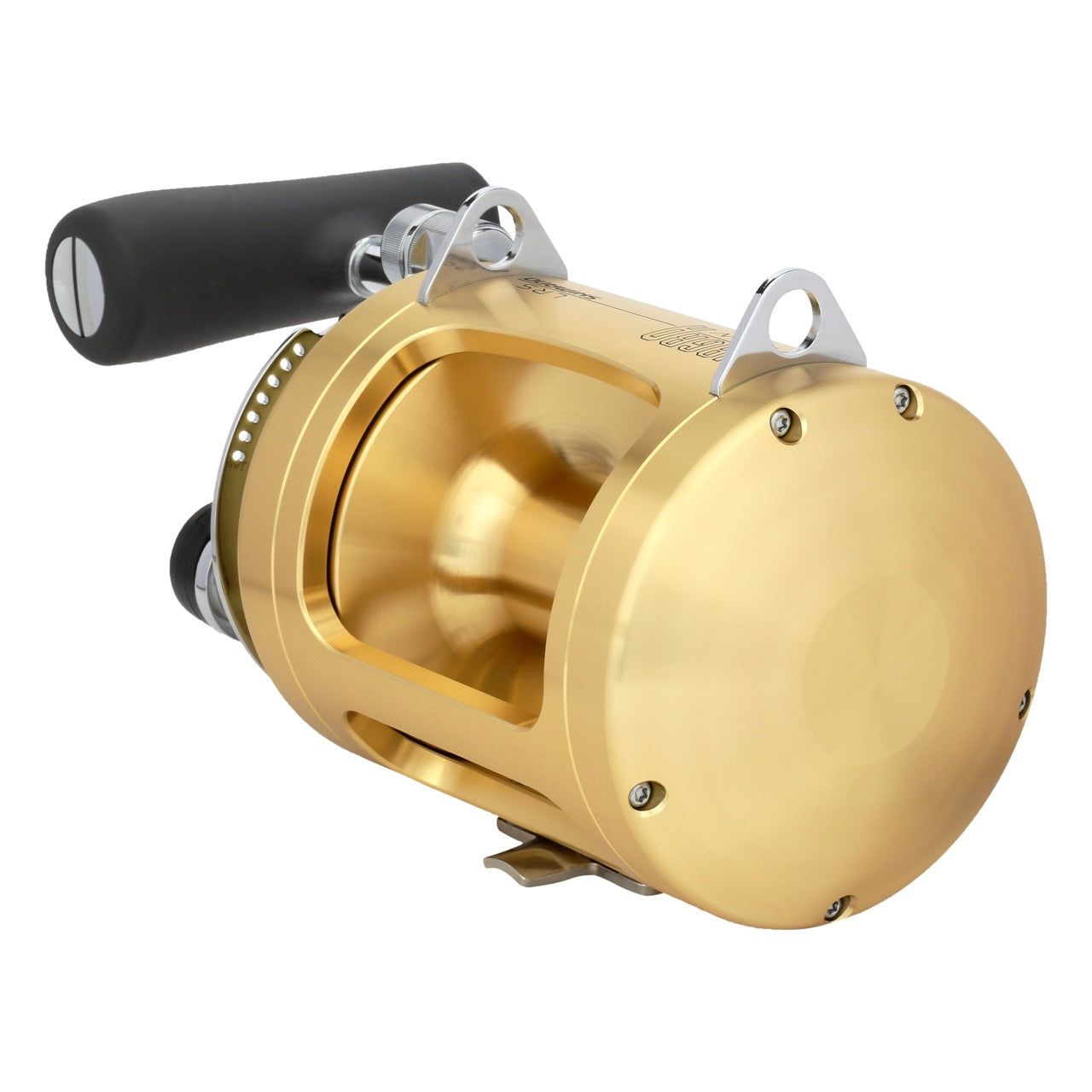

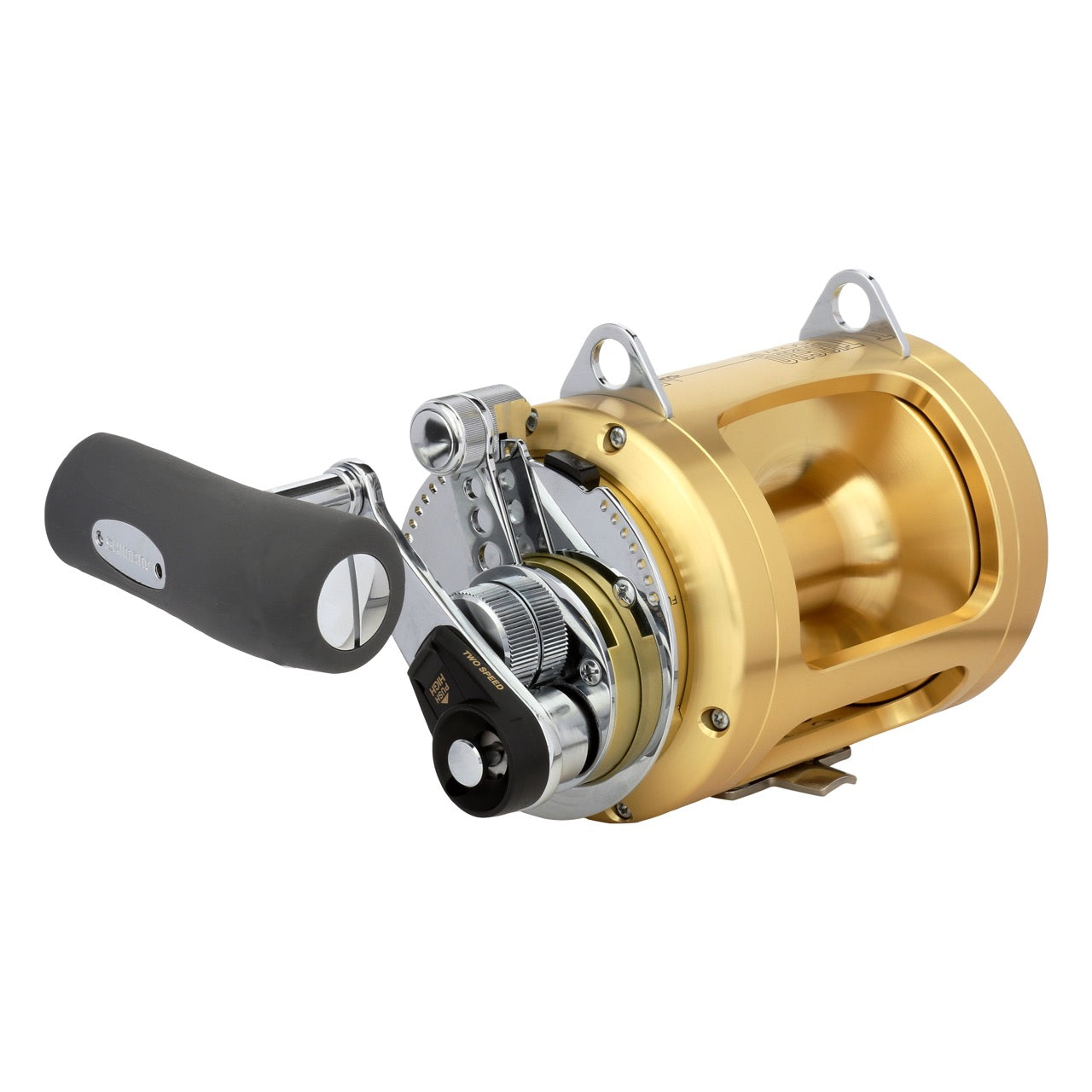

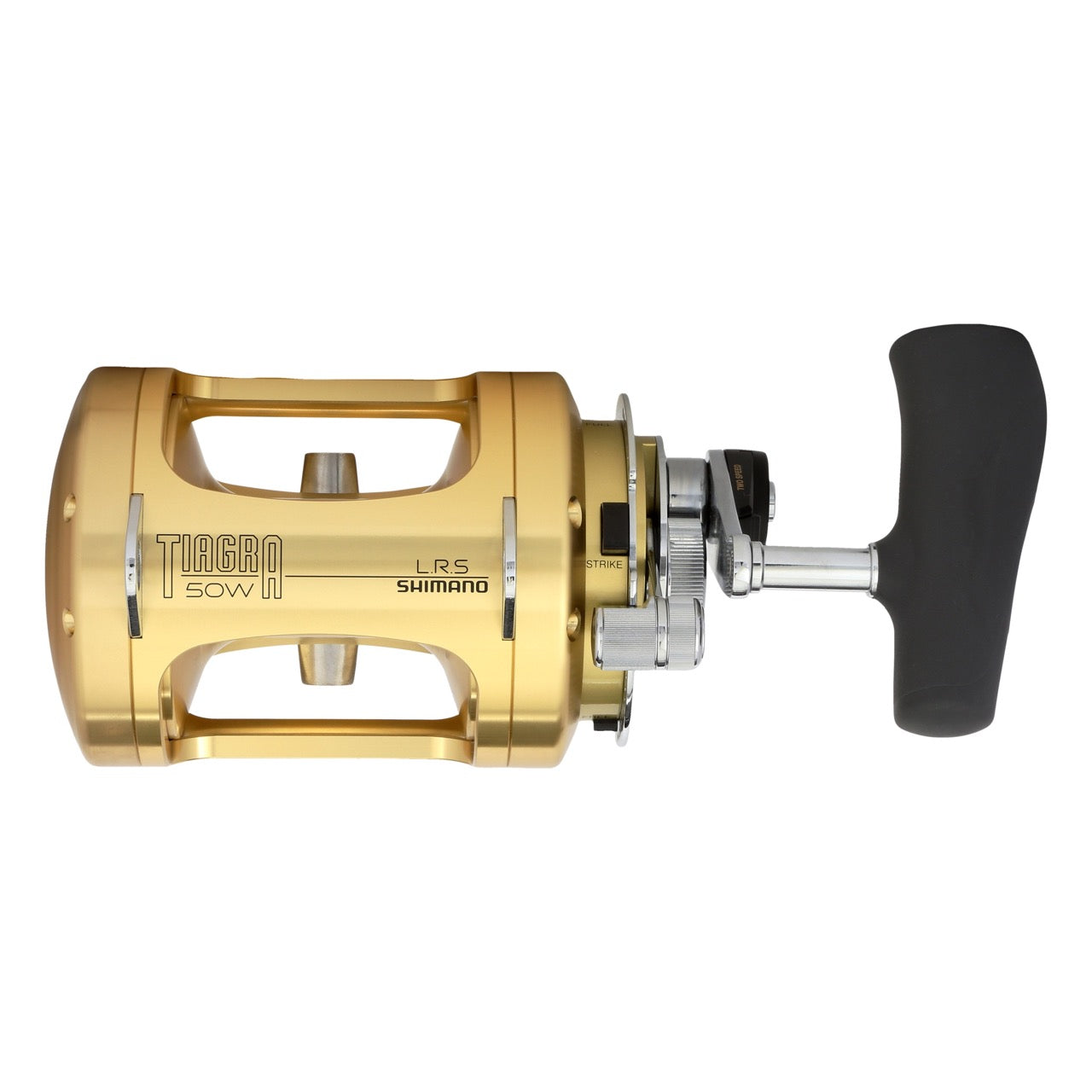

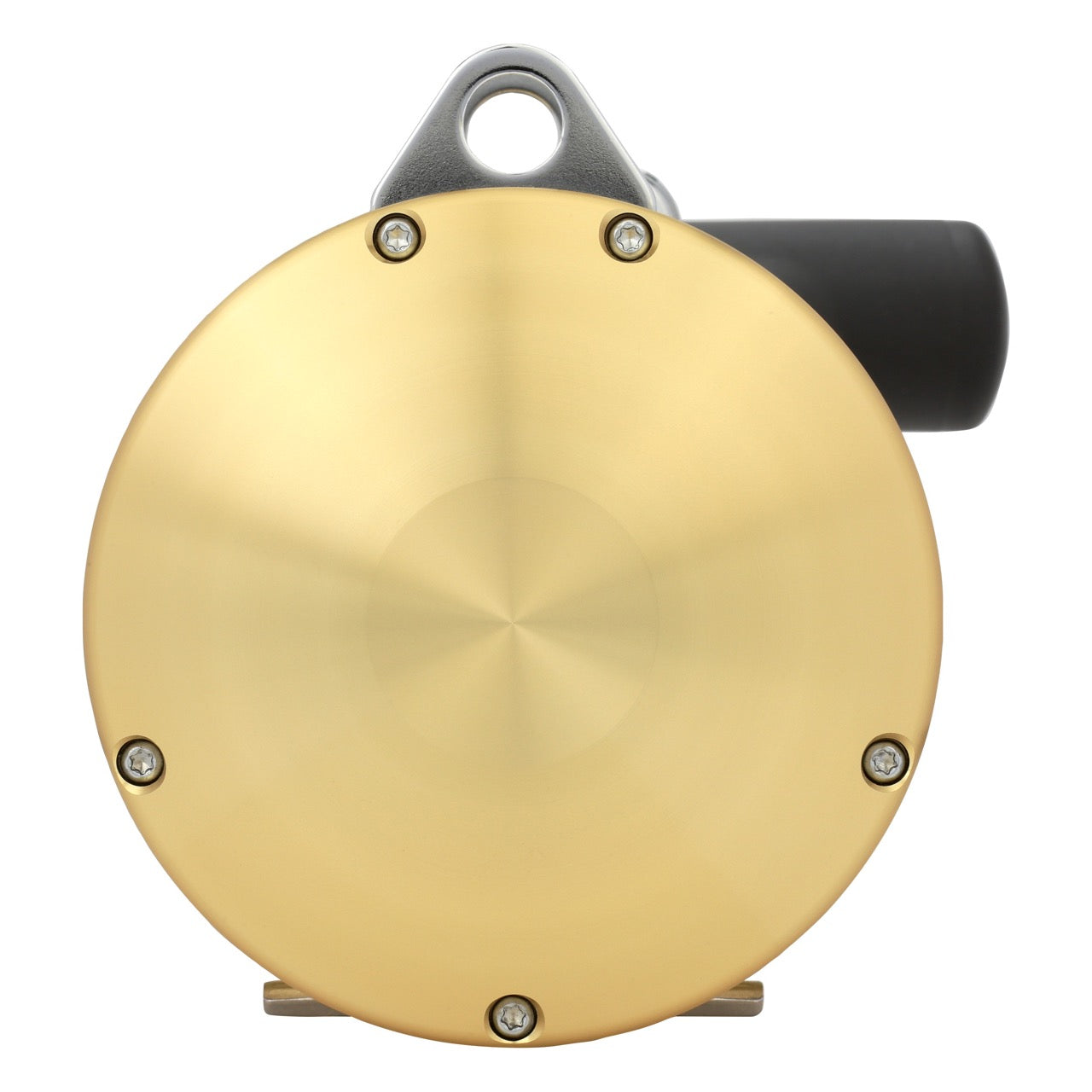

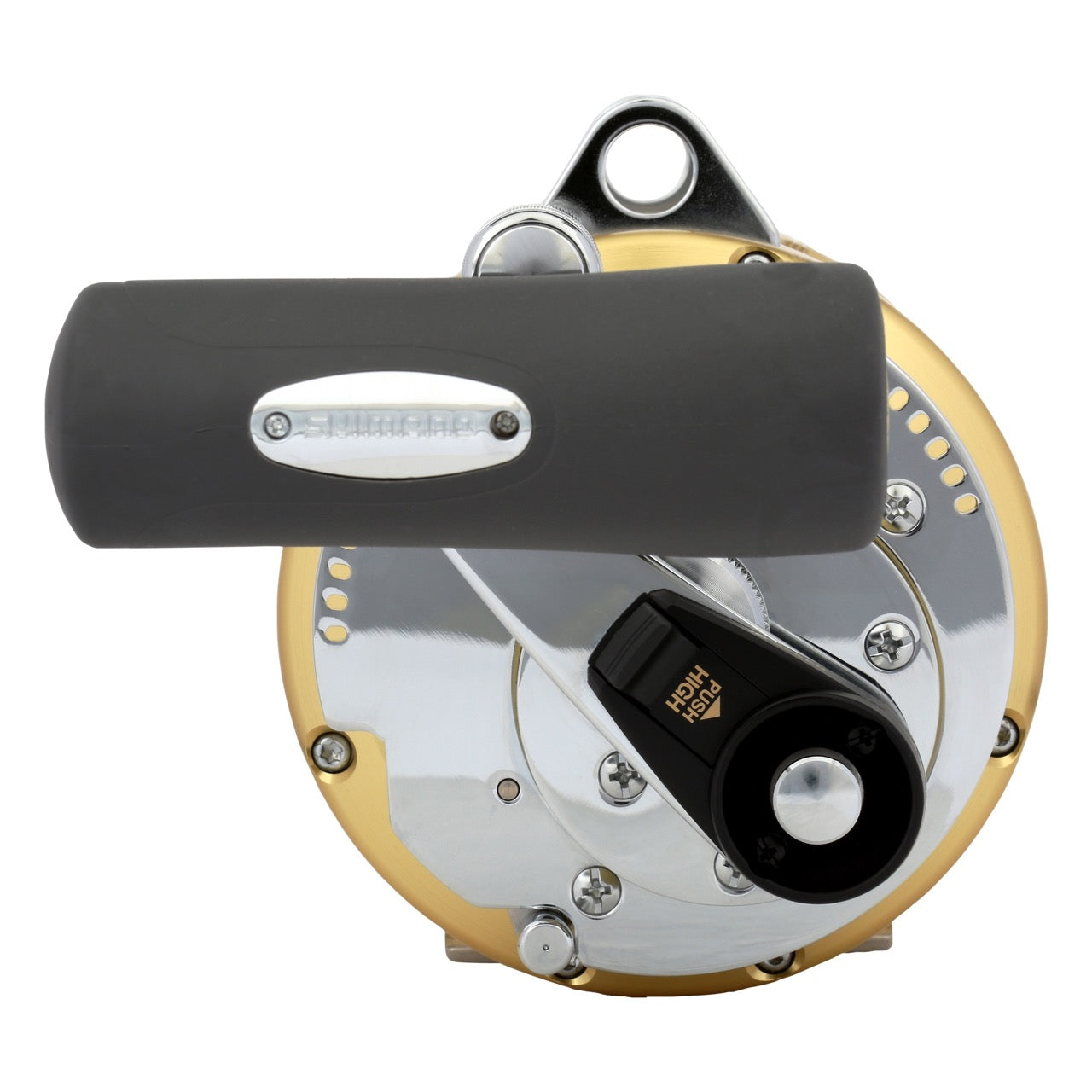

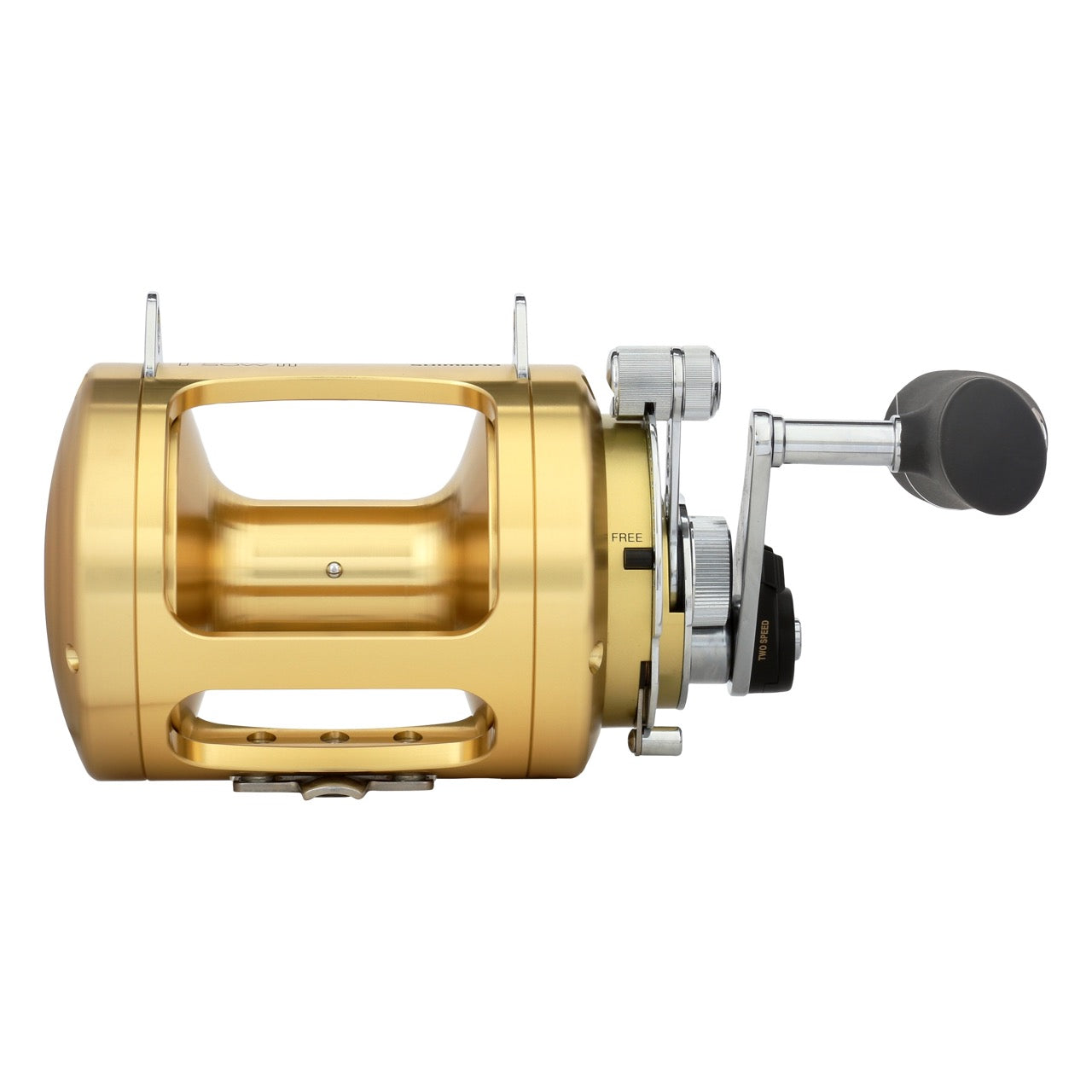

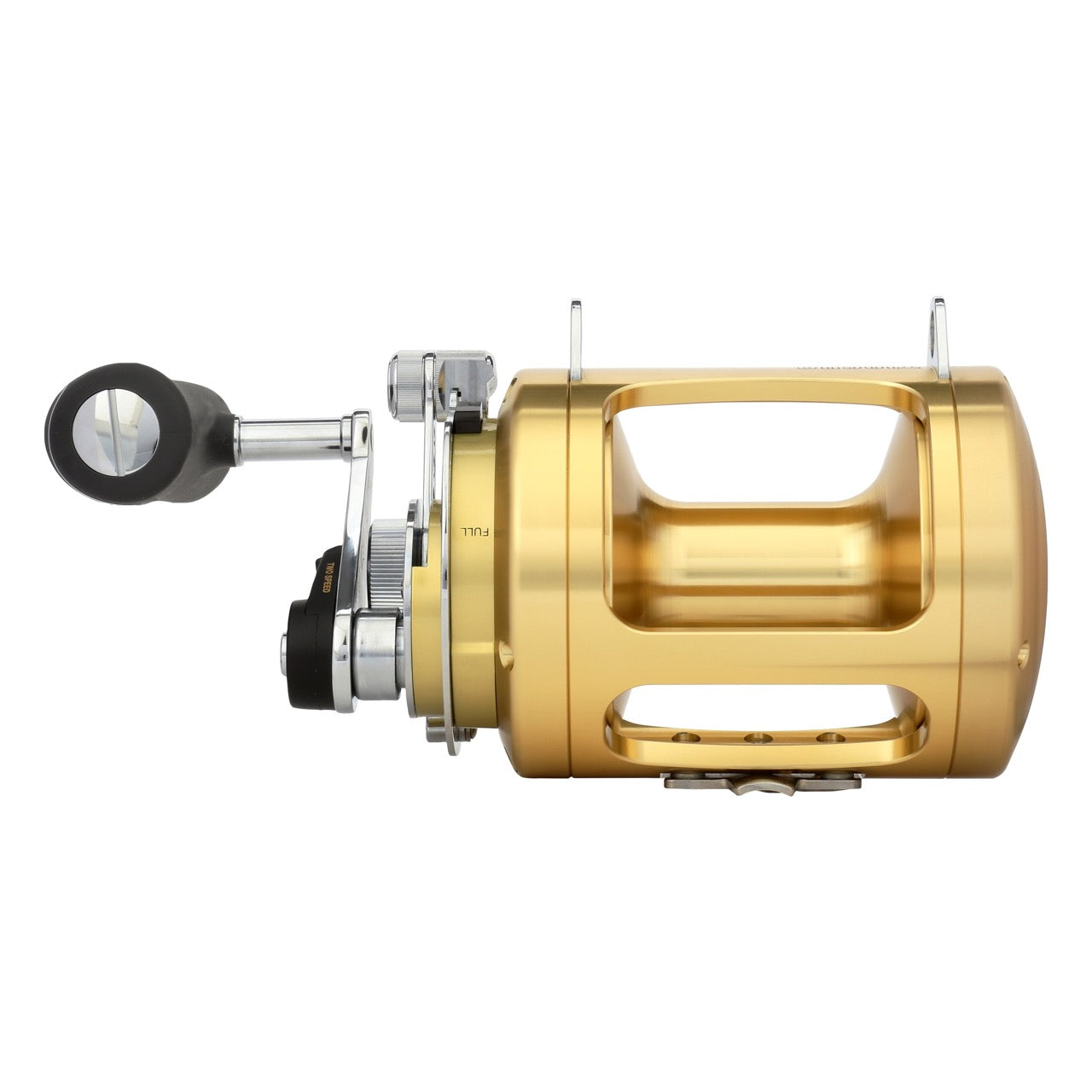

TI50WLRSA	86.2oz	80/1575, 100/1235, 150/1180	3.1:1	40lb	80/550	Right	37in	1.3:1	15in	4

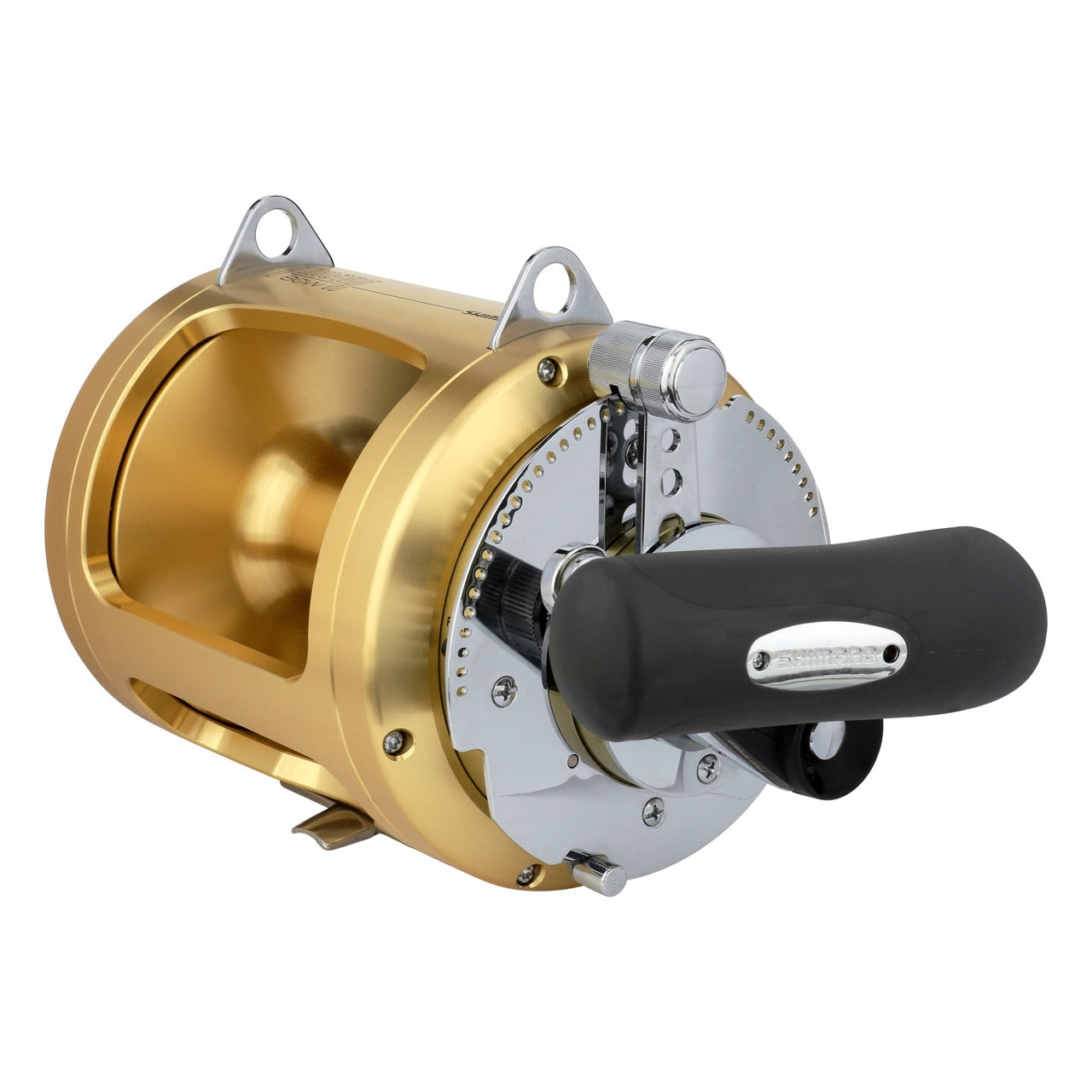

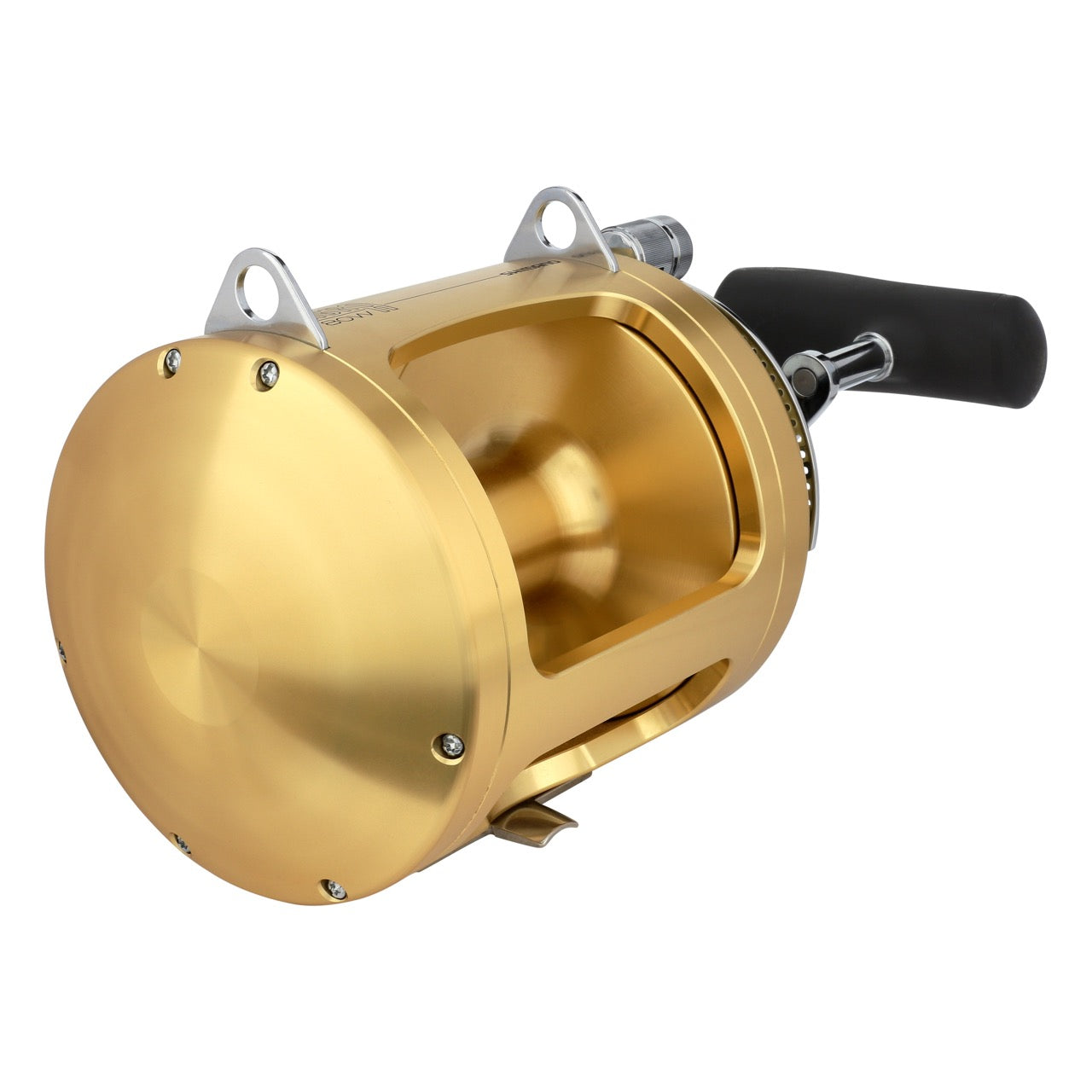

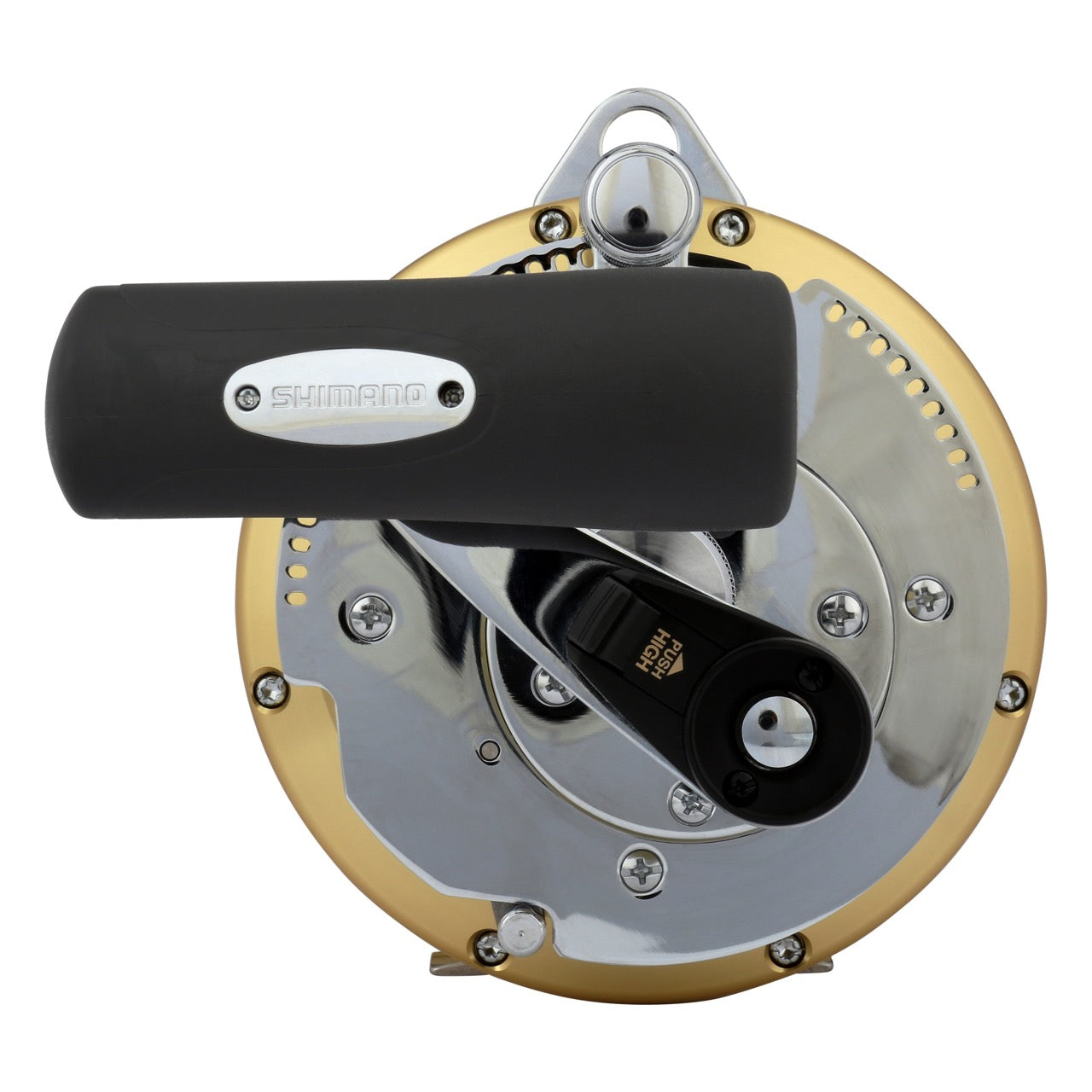

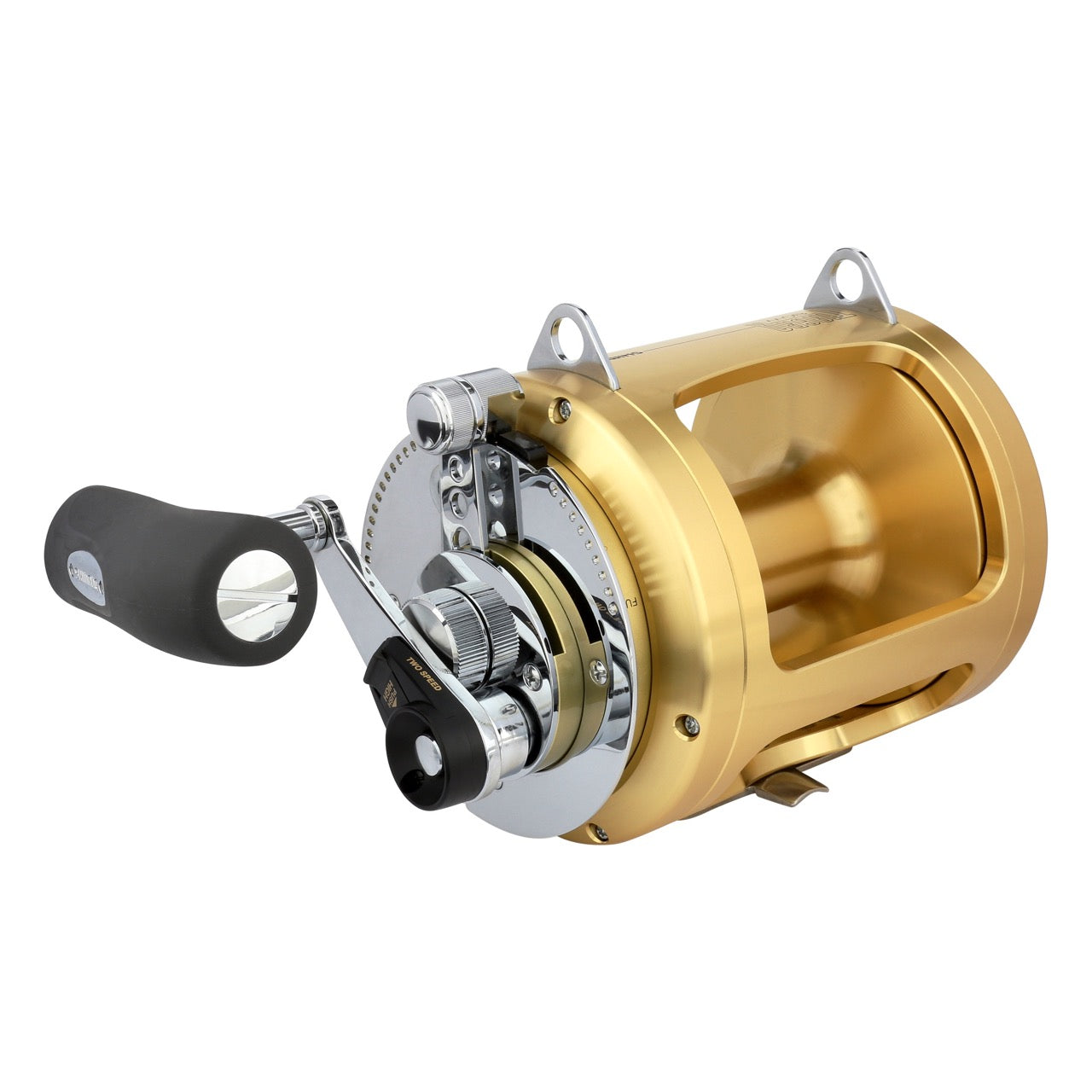

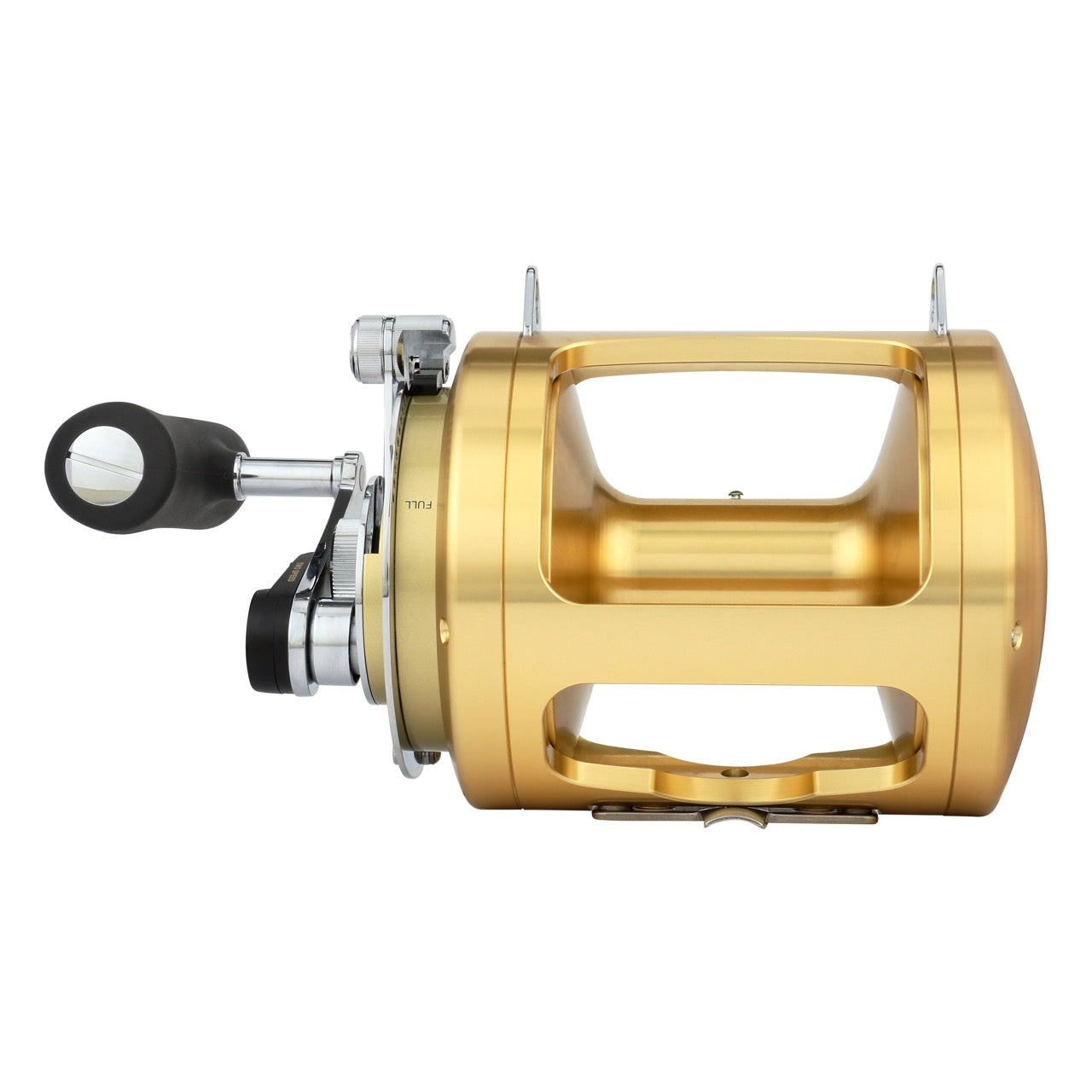

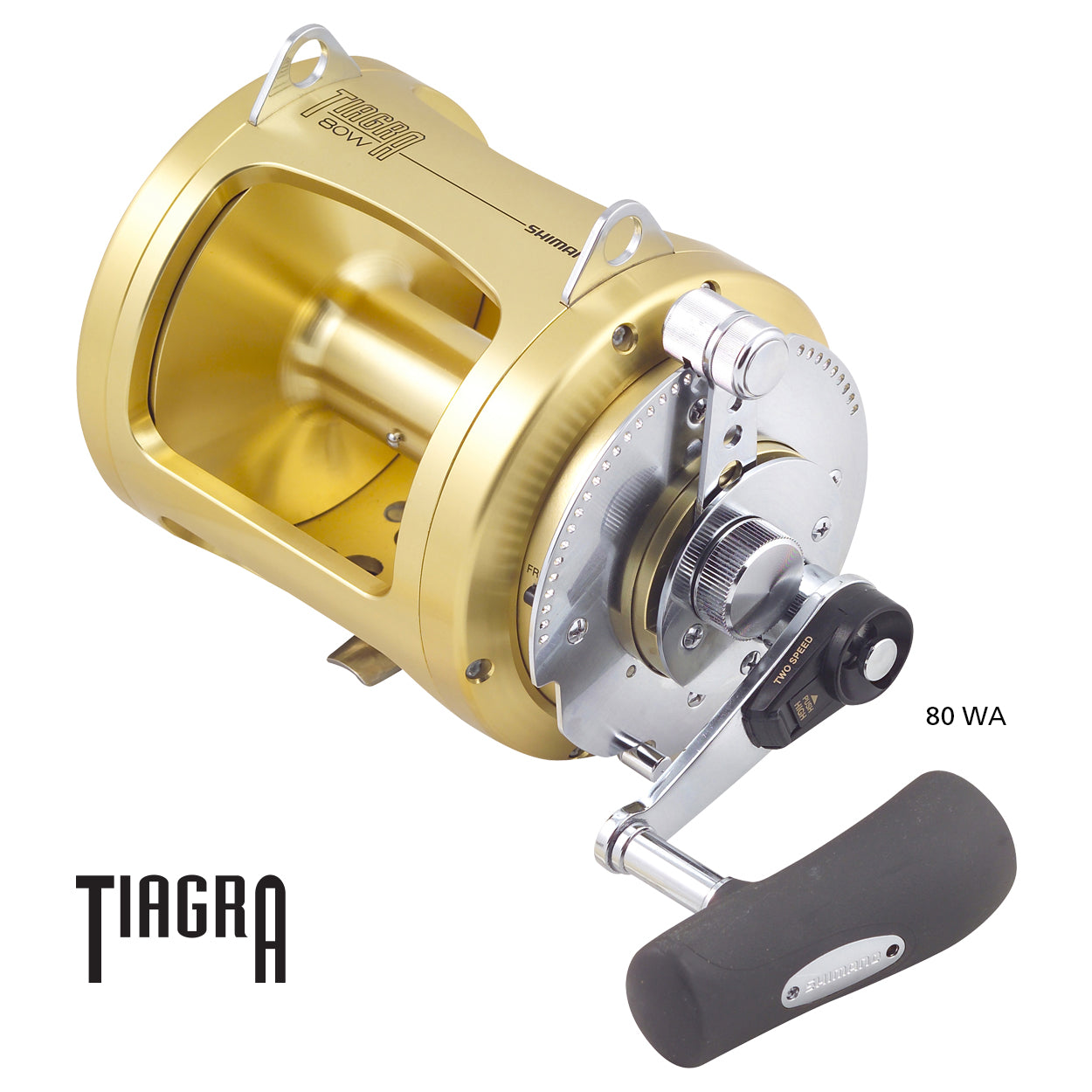

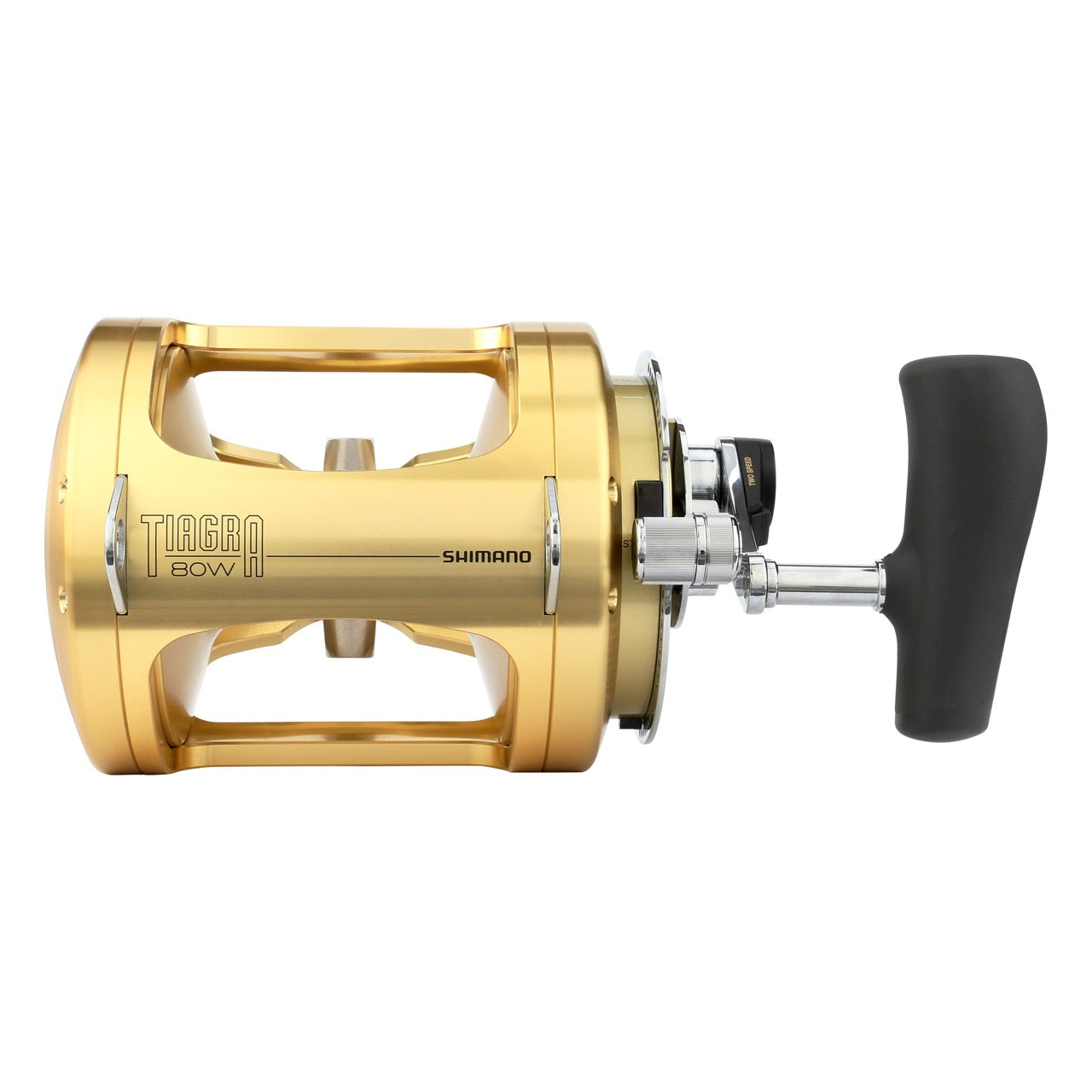

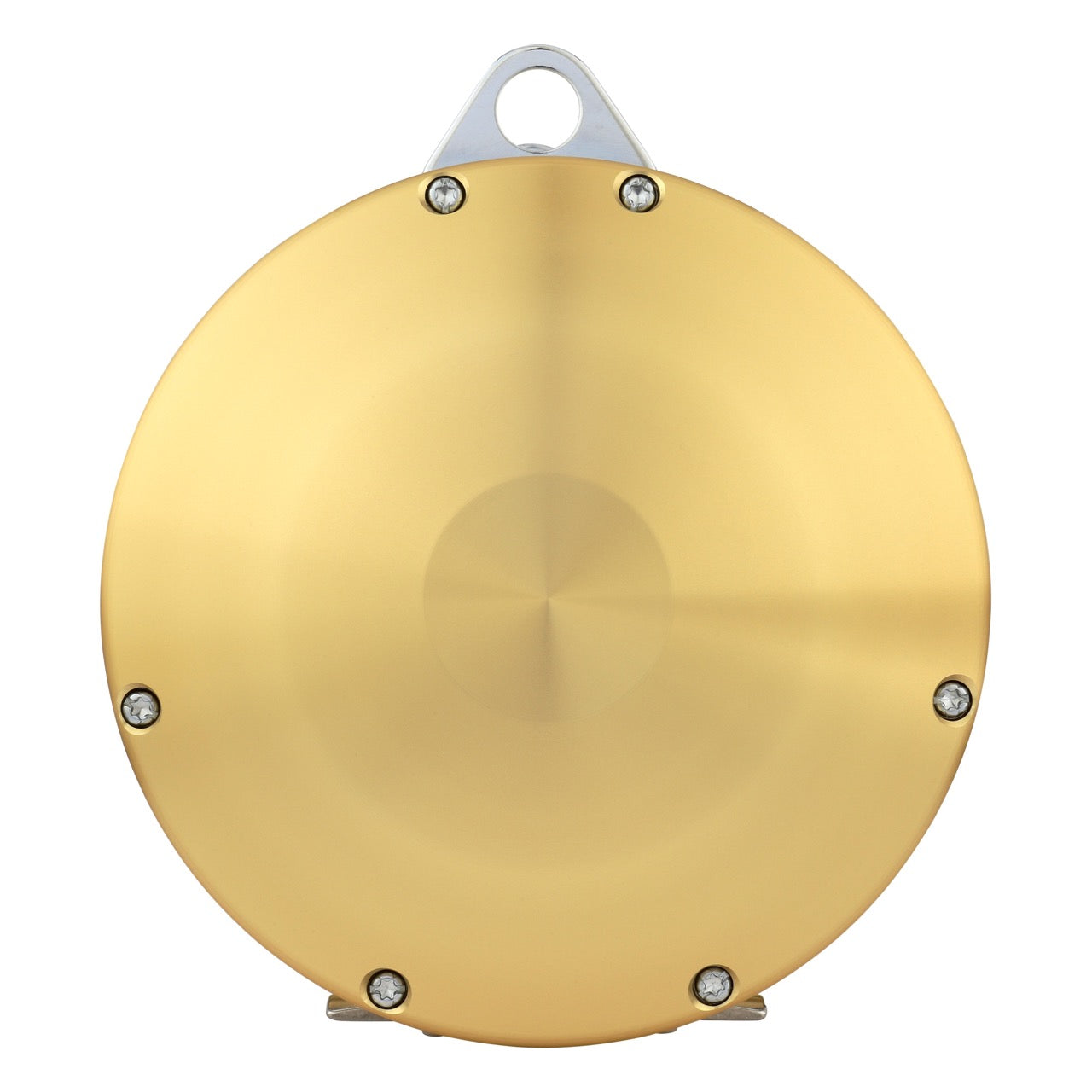

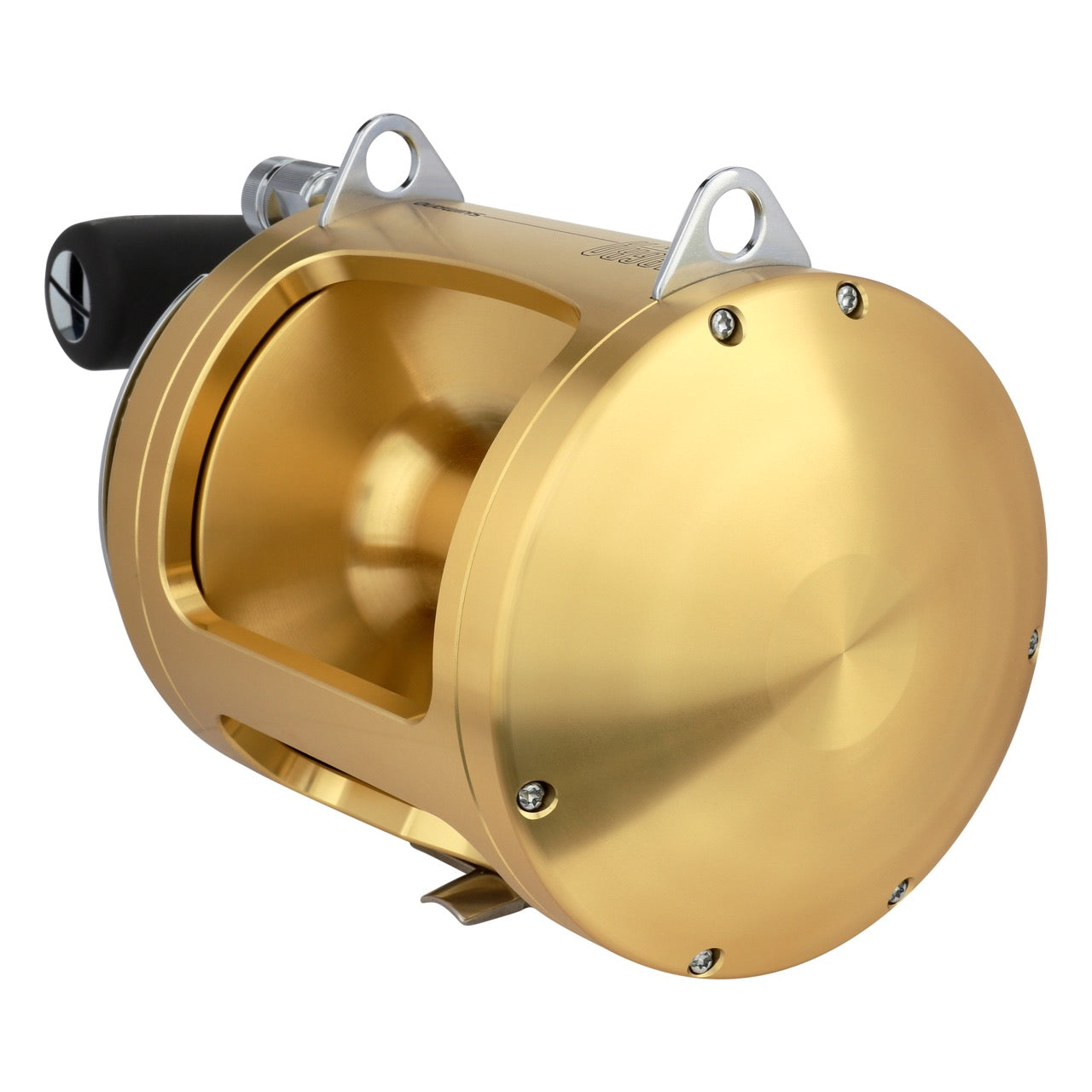

TI80WA	115.2oz	100/2445, 150/2365, 200/1920	2.5:1	40lb	80/950	Right	37in	1.3:1	15in	4

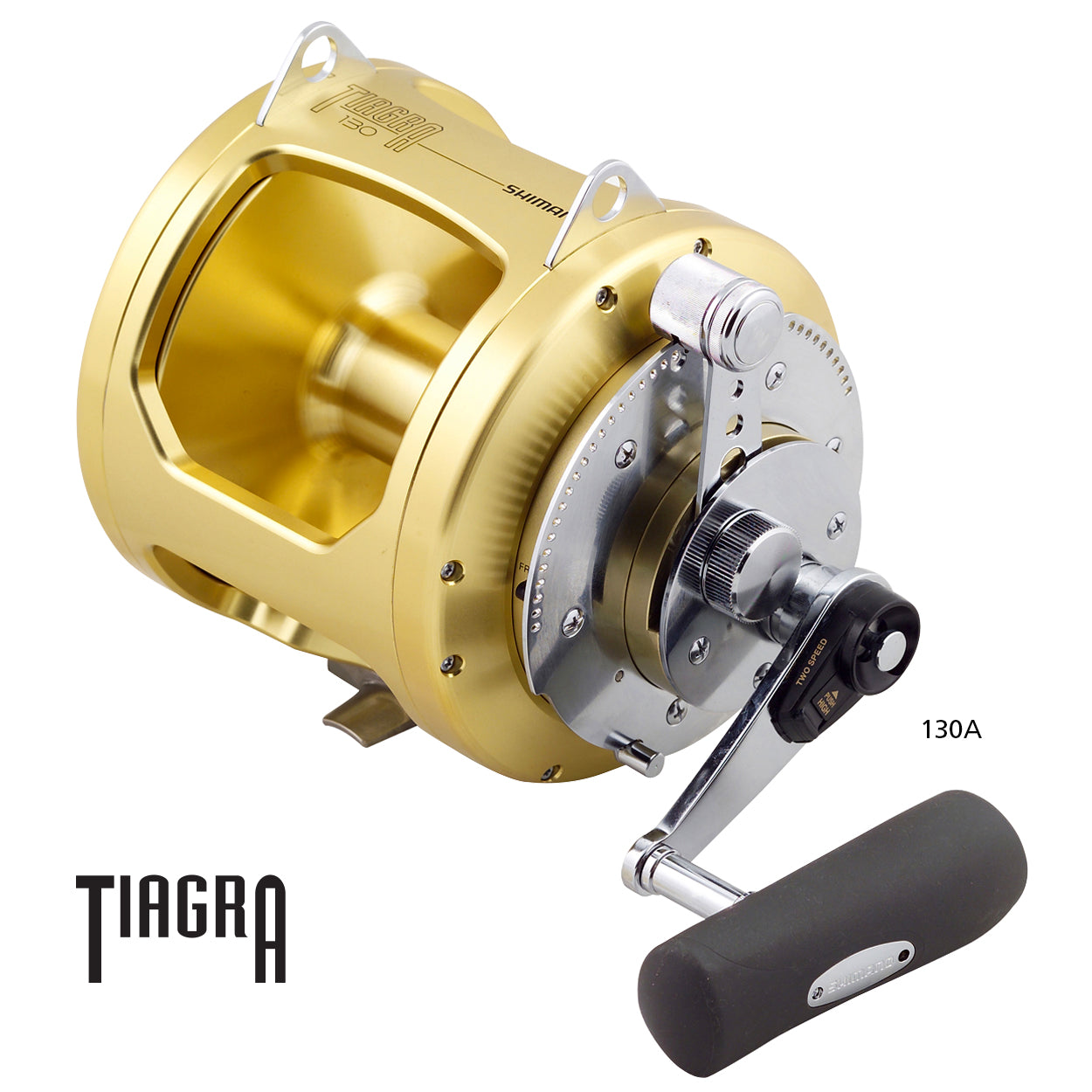

TI130A	174.1oz	150/3315, 200/2770, 250/1955	2.1:1	88lb	130/1000	Right	39in	1.15:1	22in	6
