Shimano Tiagra Two-Speed Lever Drag Reels

The Shimano Tiagra Two-Speed Lever Drag Reels are premium big game conventional reels engineered for demanding offshore fishing applications. Trusted by experienced anglers and professional captains, the Tiagra series combines powerful gearing, exceptional drag performance, and rugged construction for targeting Tuna, Marlin, Swordfish, and other large offshore gamefish. Designed for heavy line applications and long-range fishing, these reels deliver the strength and reliability needed for serious big game fishing.

Featuring Shimano's innovative hydrothermal drag system, the Tiagra minimizes drag setting variations caused by temperature changes during prolonged fights. The two-speed gearing system allows anglers to switch between high-speed line retrieval and increased cranking power when additional leverage is needed. Shimano's High Efficiency Gearing (HEG) system further improves power transmission through an oversized drive gear, pinion gear, and rigid drivetrain construction.

Built around a precision-machined aluminum HAGANE Body, the Tiagra provides exceptional rigidity to minimize flex under heavy loads. Shimano's Cross Carbon Drag system delivers smooth, consistent drag performance across a wide range of settings, while the proprietary EI surface treatment enhances corrosion resistance in harsh saltwater environments. Combined with corrosion-resistant A-RB bearings and heavy-duty internal components, the Tiagra Two-Speed Lever Drag Reels are built for dependable performance season after season.

Features:

HAGANE Body - The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
HEG - HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.
Cross Carbon Drag - The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
EI - Shimano's proprietary surface treatment of the spool and body to provide more than double the corrosion resistance compared to a conventional surface treatment.
A-RB Bearings - A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing. These bearings will last at least 10 times longer than standard stainless-steel ball bearings in high salinity environments.

Specifications:

MODEL	WEIGHT	BRAID CAPACITY	GEAR RATIO	MAX DRAG	MONO CAPACITY (lb/yds)	RETRIEVE	RETRIEVE PER CRANK	LOWER GEAR RATIO	LOWER LINE RETRIEVE PER CRANK	BEARINGS
TI16	37.4oz	50/1210, 65/680, 80/520	3.9:1	31lb	16/980, 20/670, 30/430	Right	36in	1.7:1	16in	6
TI20A	49.7oz	50/1225, 65/720, 80/525	3.9:1	26lb	20/690, 30/470	Right	41in	1.7:1	18in	4
TI30A	52.4oz	50/1805, 65/1065, 80/770	3.9:1	35lb	30/700, 50/420	Right	41in	1.7:1	18in	4

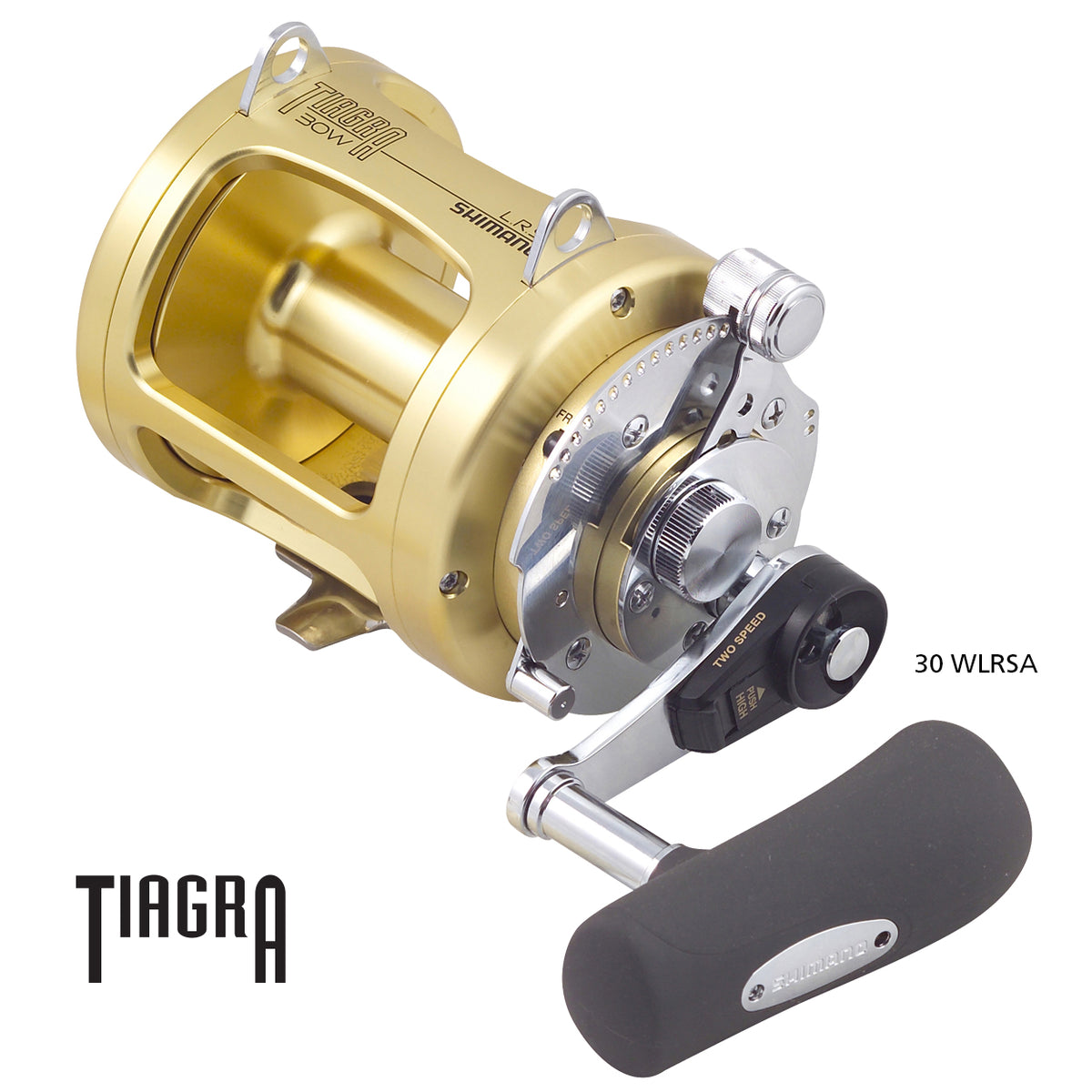

TI30WLRSA	55.6oz	65/1435, 80/1180, 100/865	3.9:1	35lb	30/935, 50/570	Right	41in	1.7:1	18in	4
TI50A	83.4oz	80/1135, 100/930, 150/865	3.1:1	26lb	50/600	Right	37in	1.3:1	15in	4
TI50WA	86.2oz	80/1575, 100/1235, 150/1180	3.1:1	26lb	50/850	Right	37in	1.3:1	15in	4

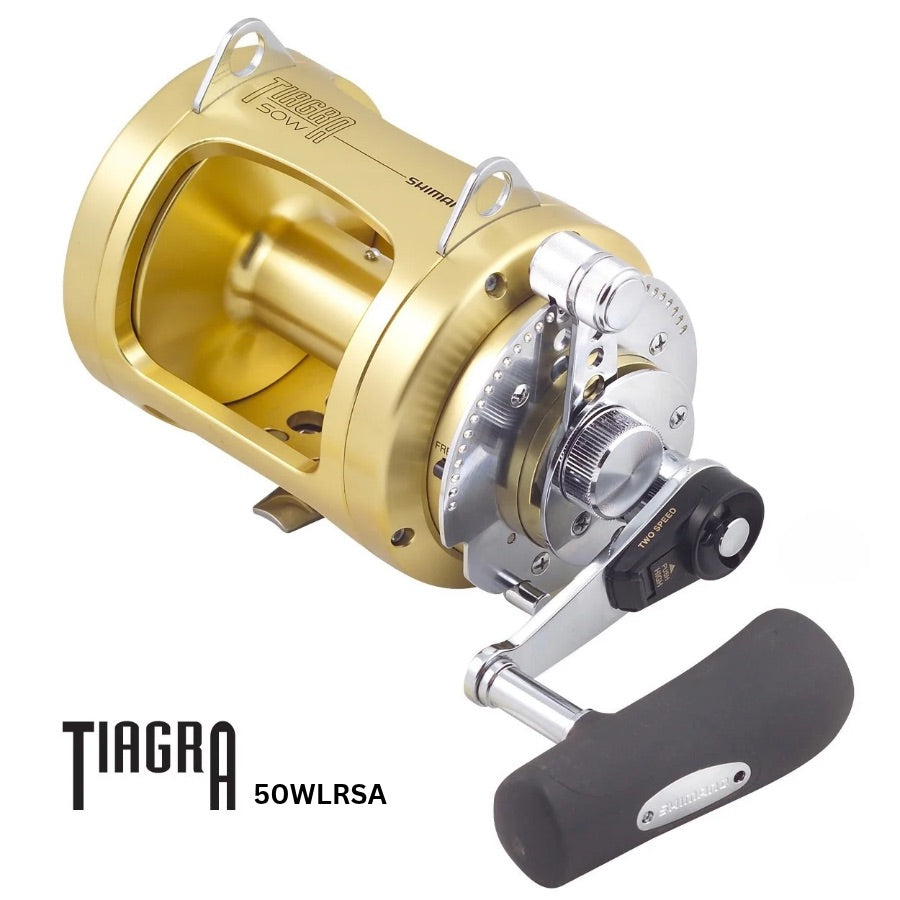

TI50WLRSA	86.2oz	80/1575, 100/1235, 150/1180	3.1:1	40lb	80/550	Right	37in	1.3:1	15in	4

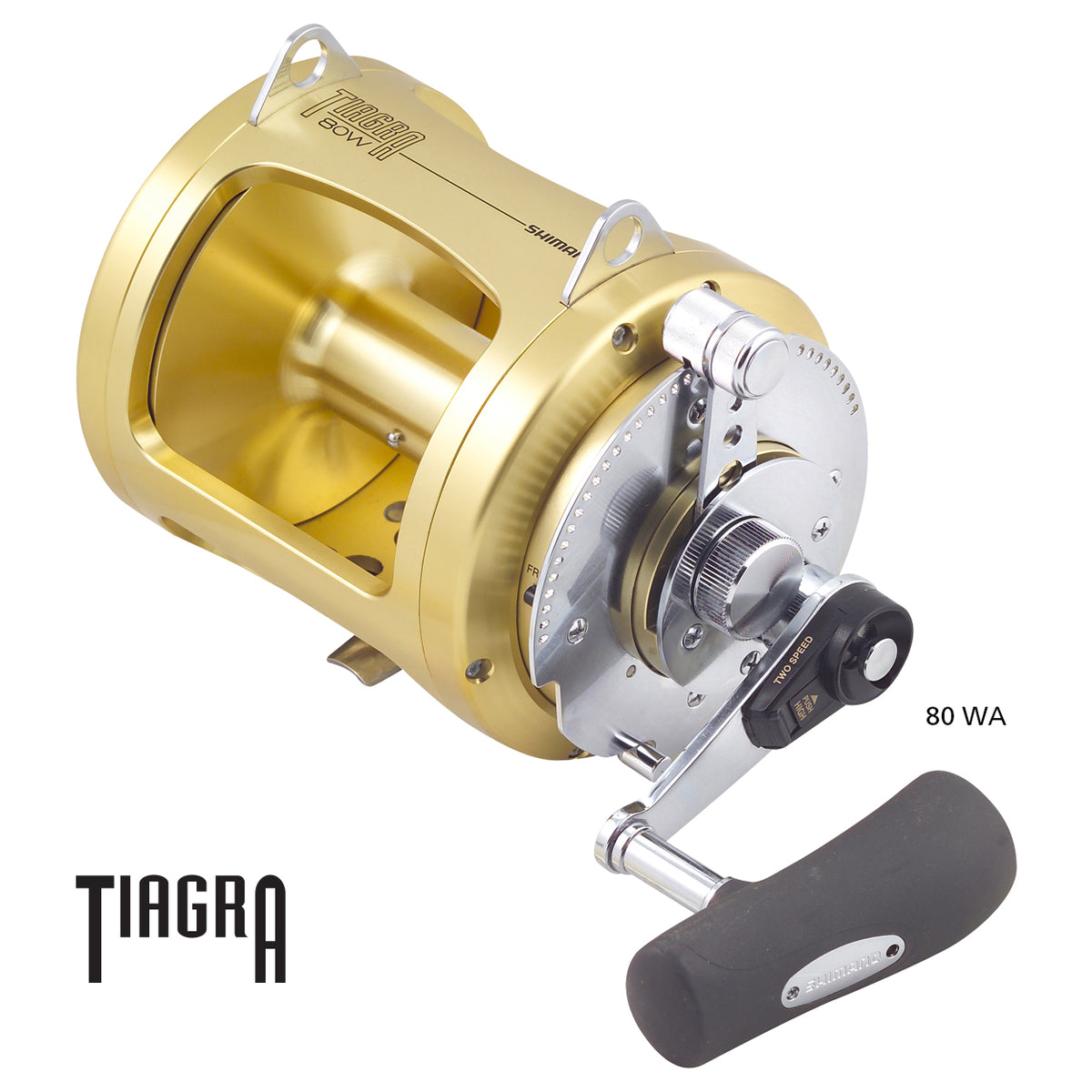

TI80WA	115.2oz	100/2445, 150/2365, 200/1920	2.5:1	40lb	80/950	Right	37in	1.3:1	15in	4

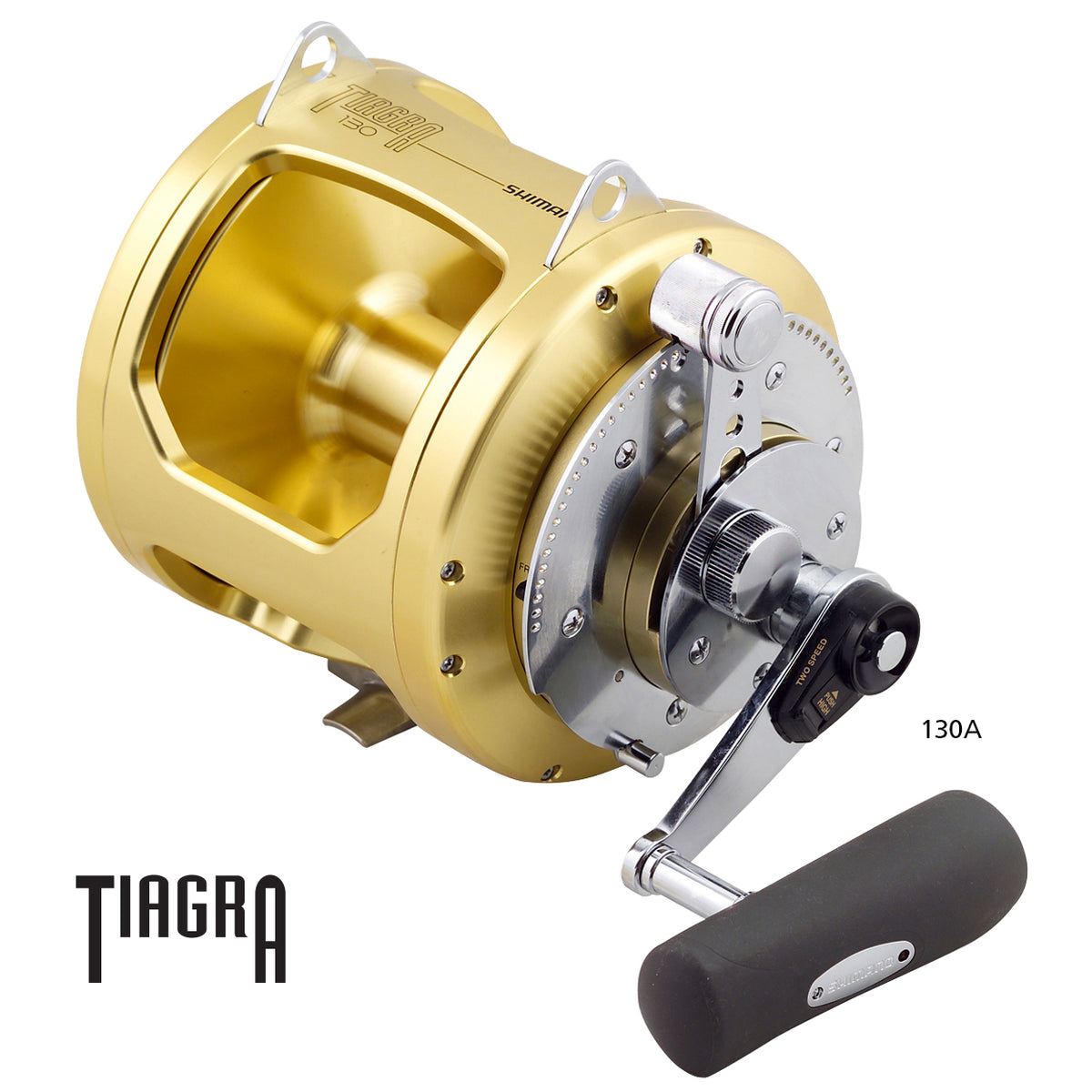

TI130A	174.1oz	150/3315, 200/2770, 250/1955	2.1:1	88lb	130/1000	Right	39in	1.15:1	22in	6
