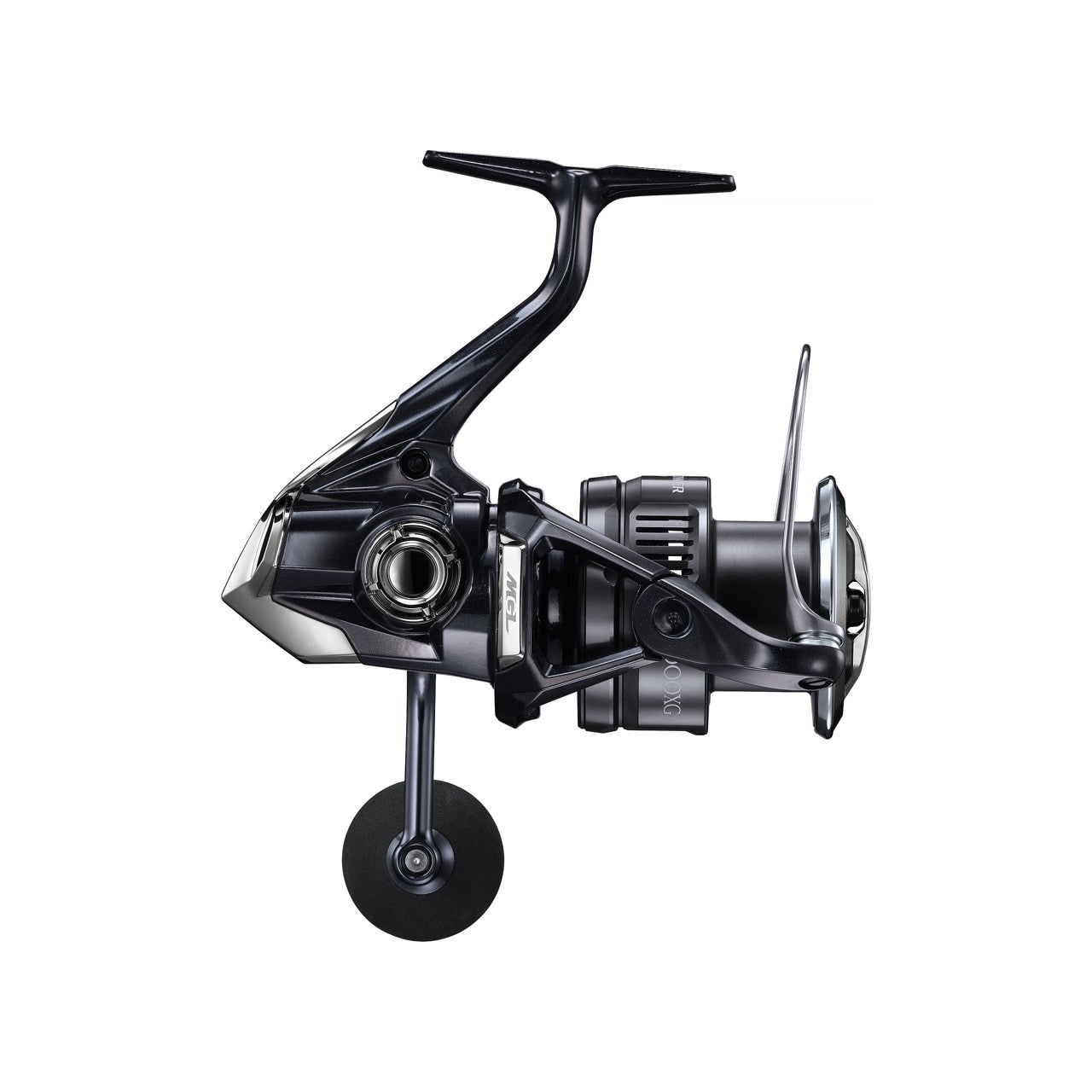

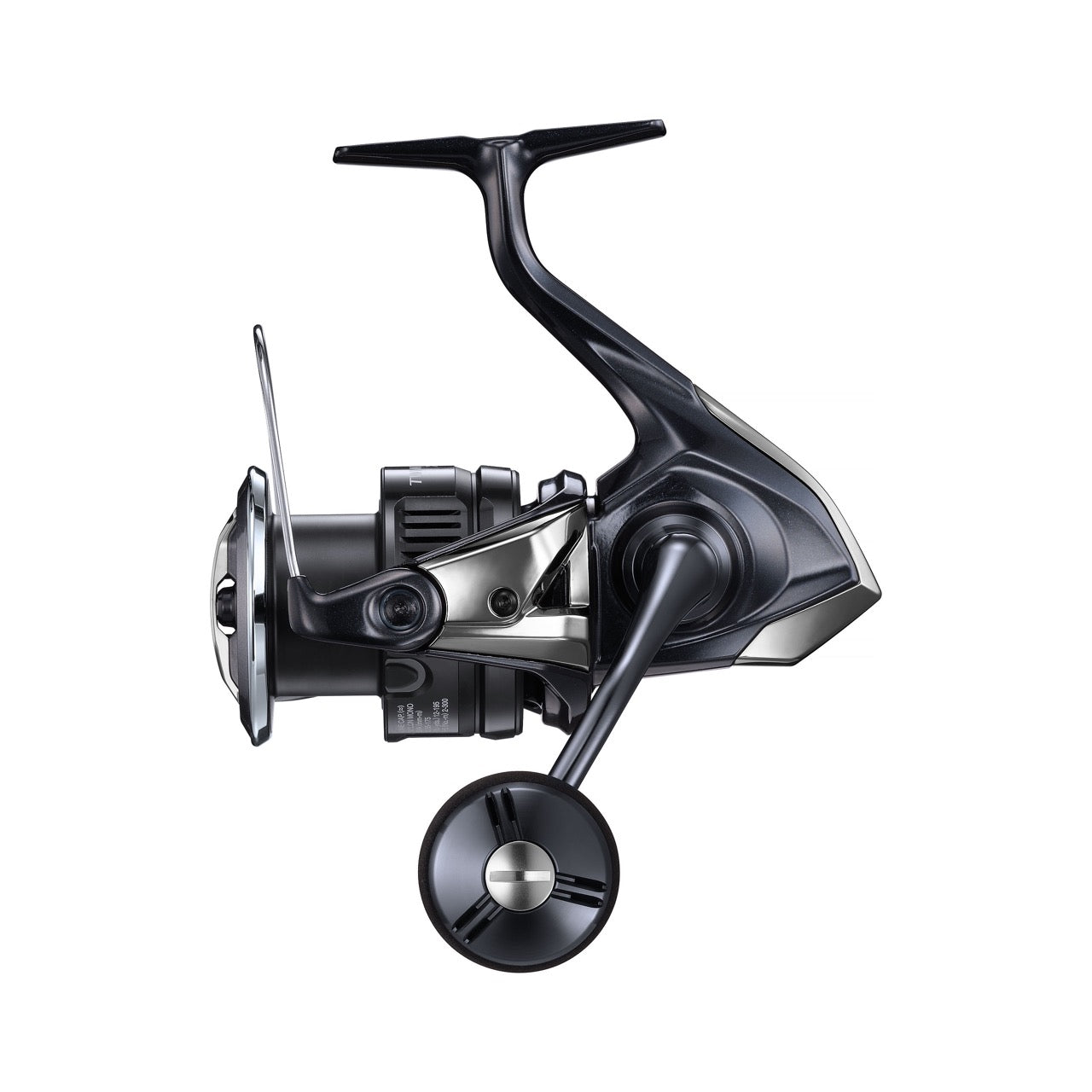

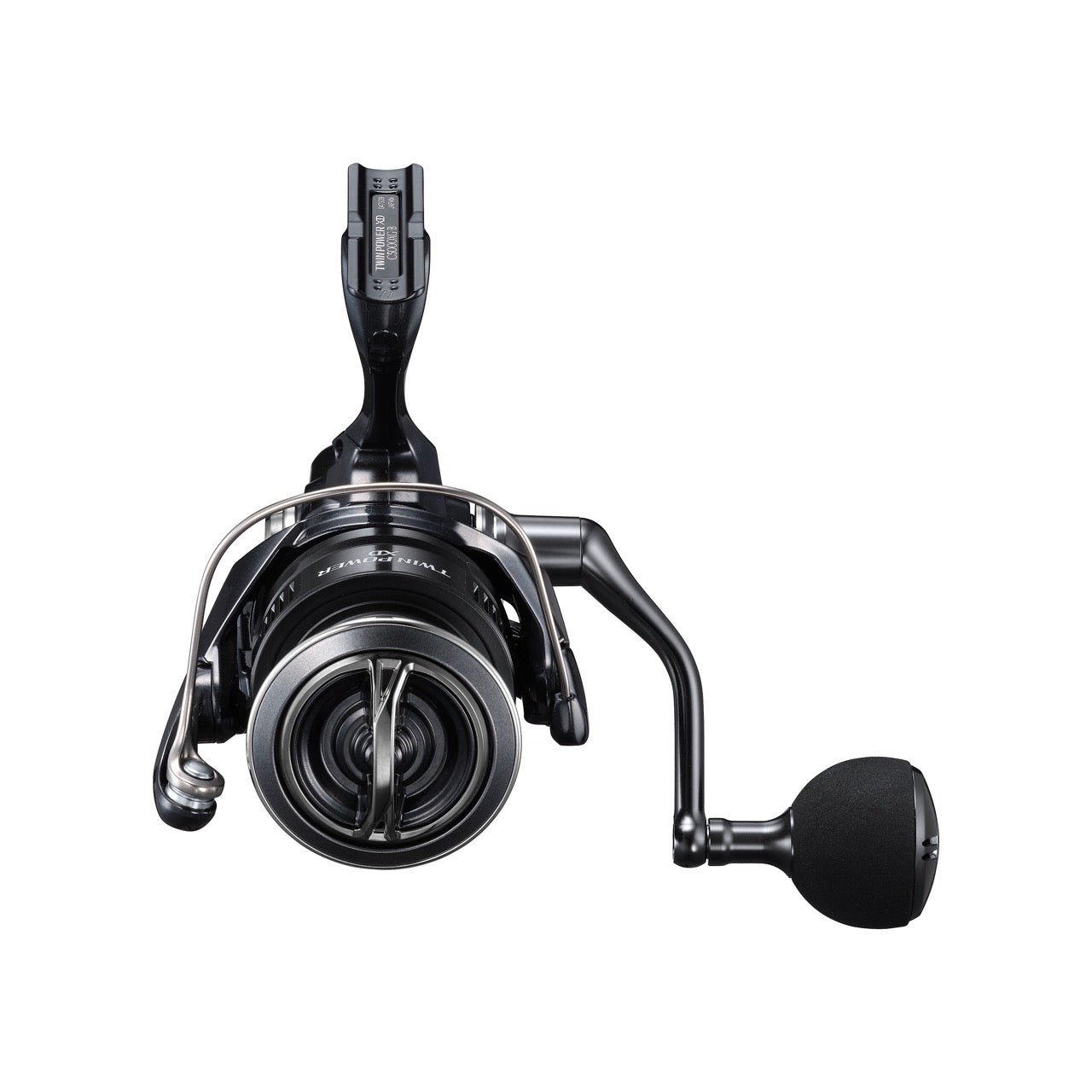

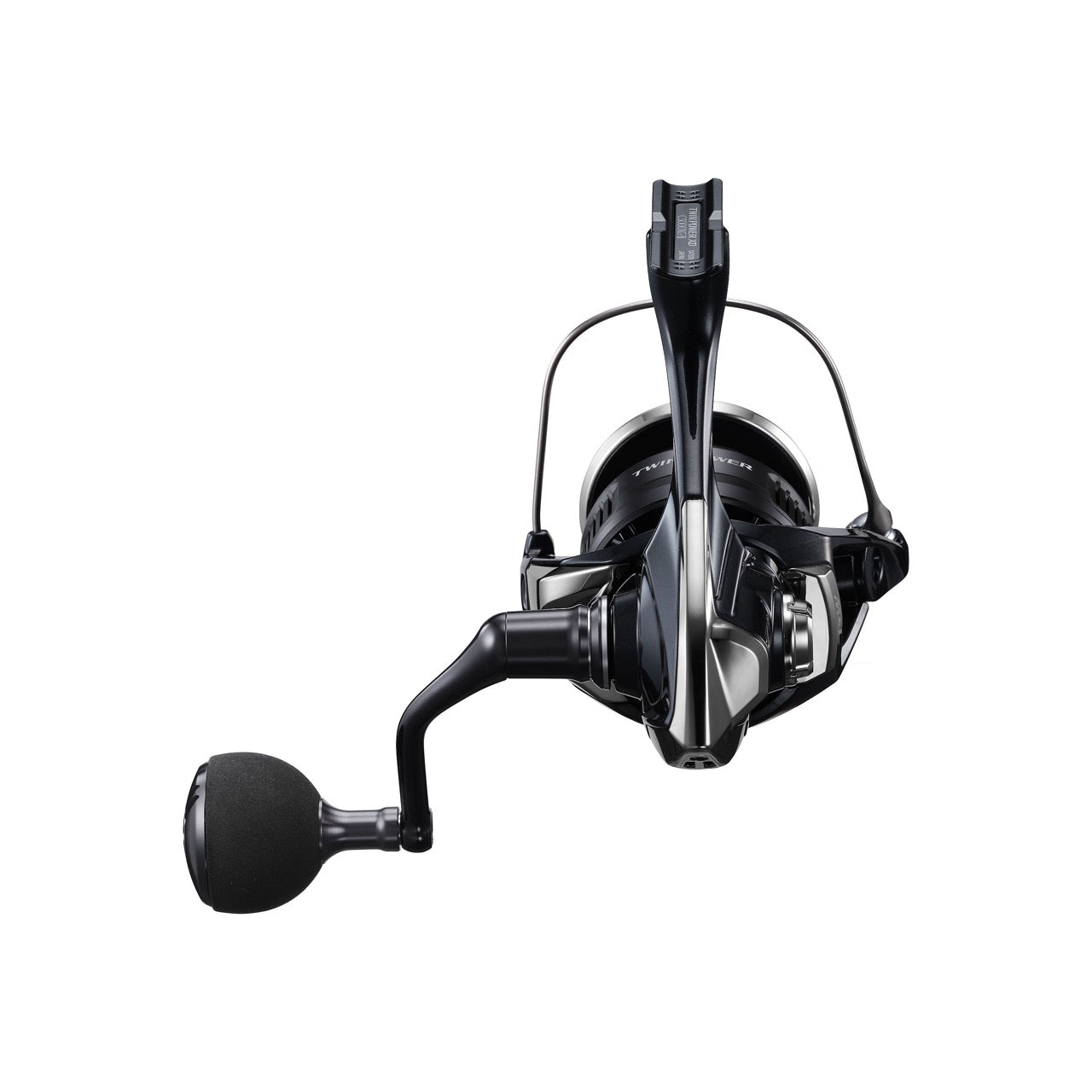

Shimano - TwinPower XD FB

The toughest offering in Shimano's MagnumLite series of spinning reels, the all-new TwinPower XD FB incorporates Shimano's latest premium spinning reel technologies to elevate inshore angling performance.

Constructed from CI4+ carbon-reinforced resin, the MGL Rotor provides light and sensitive rotation for increased precision and lure control during technical inshore angling. With a focus on improved drag performance and an enhanced reeling experience, the new TwinPower XD FB adds Shimano's Duracross technology for improved drag smoothness and longevity while also incorporating InfinityDrive and InfinityXross technologies for increased winding power and enhanced gear durability. Built to endure harsh saltwater environments, a new X-Protect design reduces reeling noise and improves bearing longevity by draining water to the outermost point of the reel. The addition of Shimano's InfinityLoop technology enhances line lay to improve casting performance and increase drag consistency by reducing drag spikes.

A reel built for toughness without sacrificing sensitivity, the TwinPower XD FB has no equal for inshore anglers.

Features:

• HAGANE - A reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
• HAGANE Gear - With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.
• MicroModule Gear II - Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.
• X-Ship - X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alighment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benedit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance with lighter lures.
• HAGANE Body - The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler’s actions directly into cranking power, increasing efficiency through strength.
• InfinityLoop - InfinityLoop technology delivers exceptional casting performance by drastically reducing friction on the line leaving the spool. Advancements in the internal structure and design extend the spools oscillation to enable the spool to move up and down at an extremely low speed. This technology creates a precise winding pattern with less overlap that significantly reduces friction as the line leaves the spool during a cast. The result is smooth and exceptional casting performance, especially with light lures.
• InfinityXross - InfinityXross provides superior gear durability through industry-leading design and cutting-edge manufacturing technology. Advancements in the gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.
• Infinity Drive - The Infinity Drive structure is an advanced structure that creates exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.
• DuraCross - DuraCross provides smooth and reliable drag performance with incredible durability. Constructed to enhance overall durability, this revolutionary drag washer incorporates cutting-edge materials woven in a unique pattern compared to conventional drag washers. Without sacrificing a smooth drag feel, this new material is greater than 10x more durable for improved drag performance.
• SilentDrive - SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.
• MGL Rotor - The new MGL Rotor produces unprecedented light rotation within the MagnumLite family of spinning reels. Engineers redesigned the preciously symmetrical MagnumLite rotor to be asymmetrical and relocated the bail arm mechanism to the opposite side of the line roller to improve the overall balance of the rotor. Combined with a lightweight line roller, titanium bail and optimum arrangement of rotor thickness, the new MGL rotor achieves up to a 14% reduction in rotational inertia to increase sensitivity to unprecedented levels. But the evolution of the MGL rotor is not limited to just reduced weight. The MGL Rotor rigidity is up to 30% higher than conventional models and contributes to enhanced drag performance.
• Anti-Twist Fin - Shimano designed the Anti-Twist Fin for enhanced line management resulting in more effective fishing. The flexible polymer fin is installed near the line roller. This maintains line tension to reduce sagging and prevents the line from falling off the bottom of the spool or wrapping around the spool in an uneven manner.
• X-Protect - X-Protect provides high-level water resistance without sacrificing light gear and rotor rotation. By combining Shimano’s water-repellent coating with a water-channeling labyrinth construction, X-Protect provides added durability in tough conditions.
• G-Free Body - G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.
• Long Stroke Spool - The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.
• CI4+ Spinning - CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.
• Rigid Support Drag - By strengthening the spool support of the main shaft, the play and fluctuation of the spool during drag operation are suppressed. The Rigid Support Drag allows smooth and consistent drag delivery, even under high load.
• S A-RB Bearings - S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
• One-Piece Bail - One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.

Specifications:
