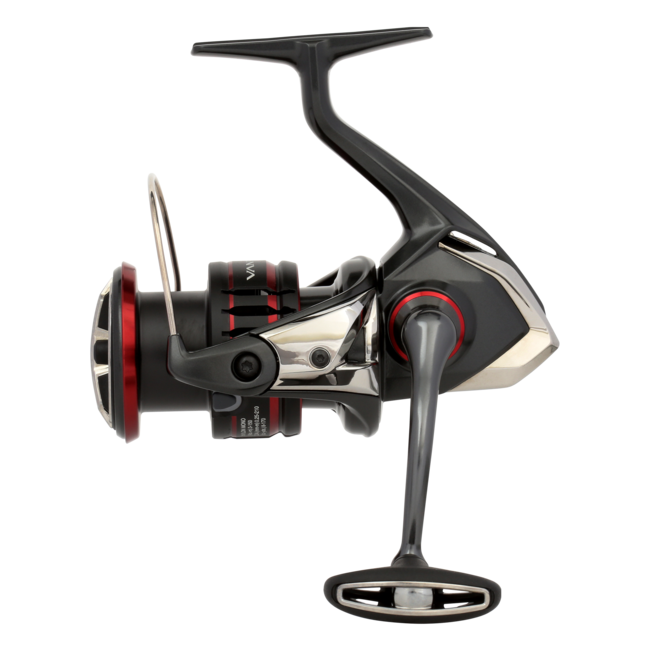

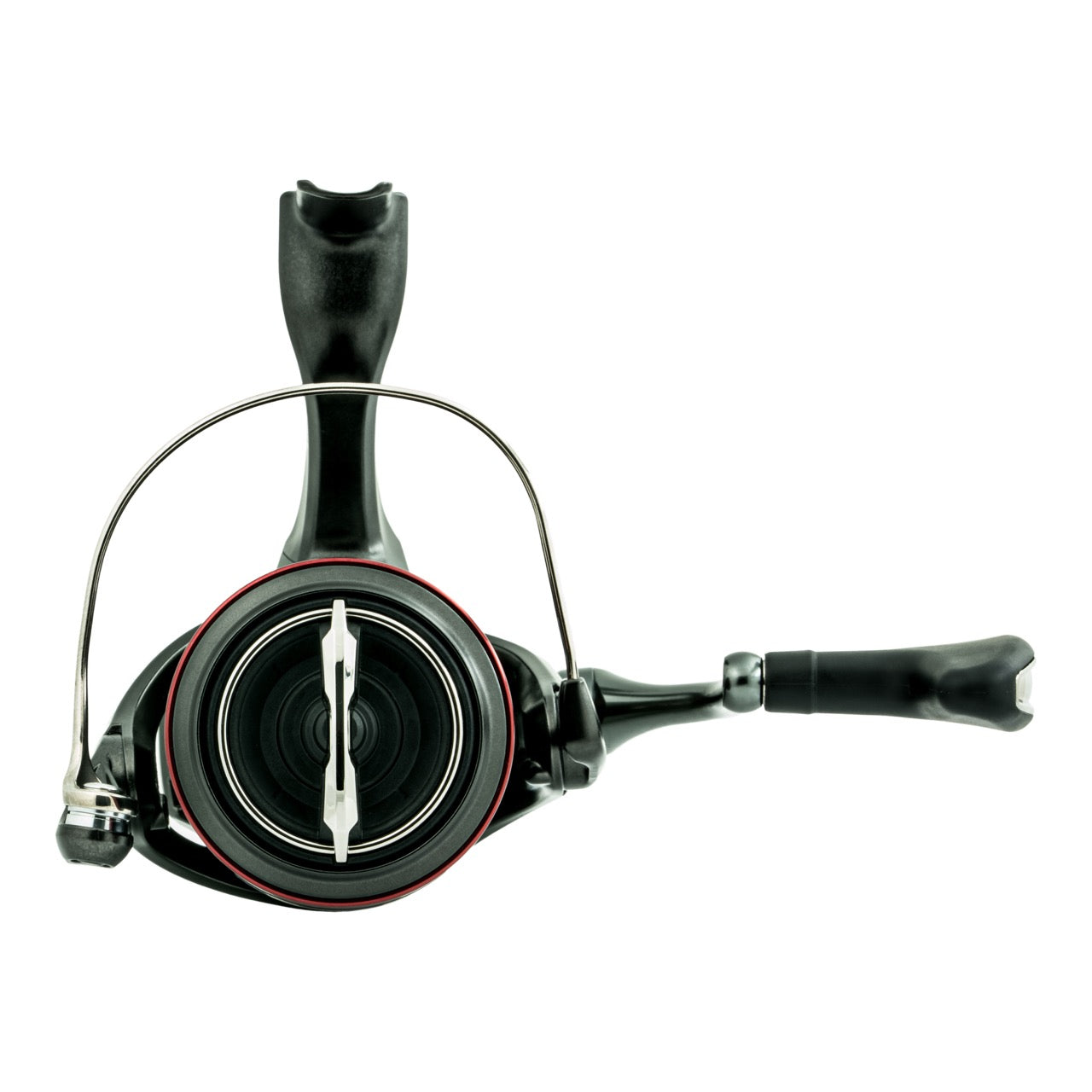

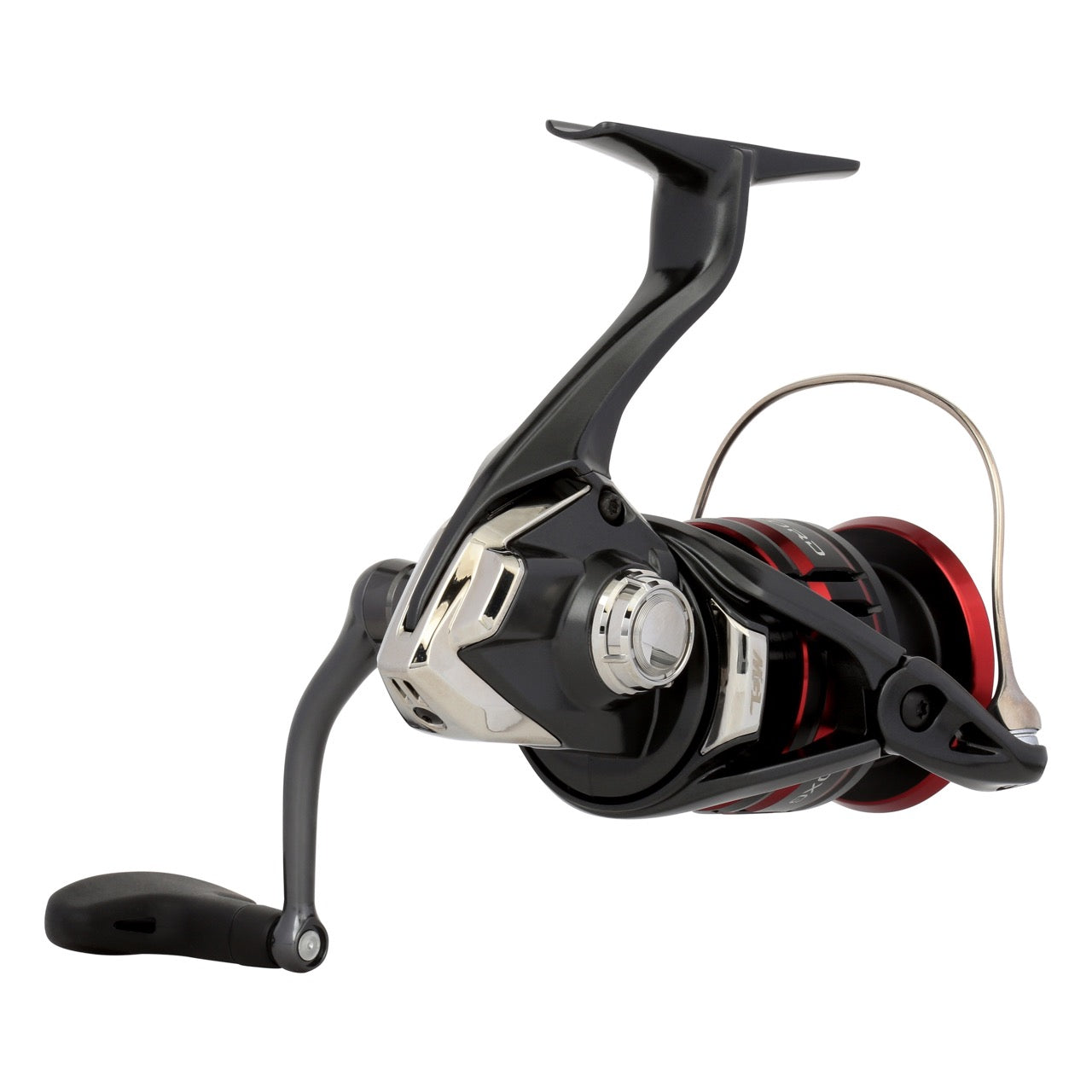

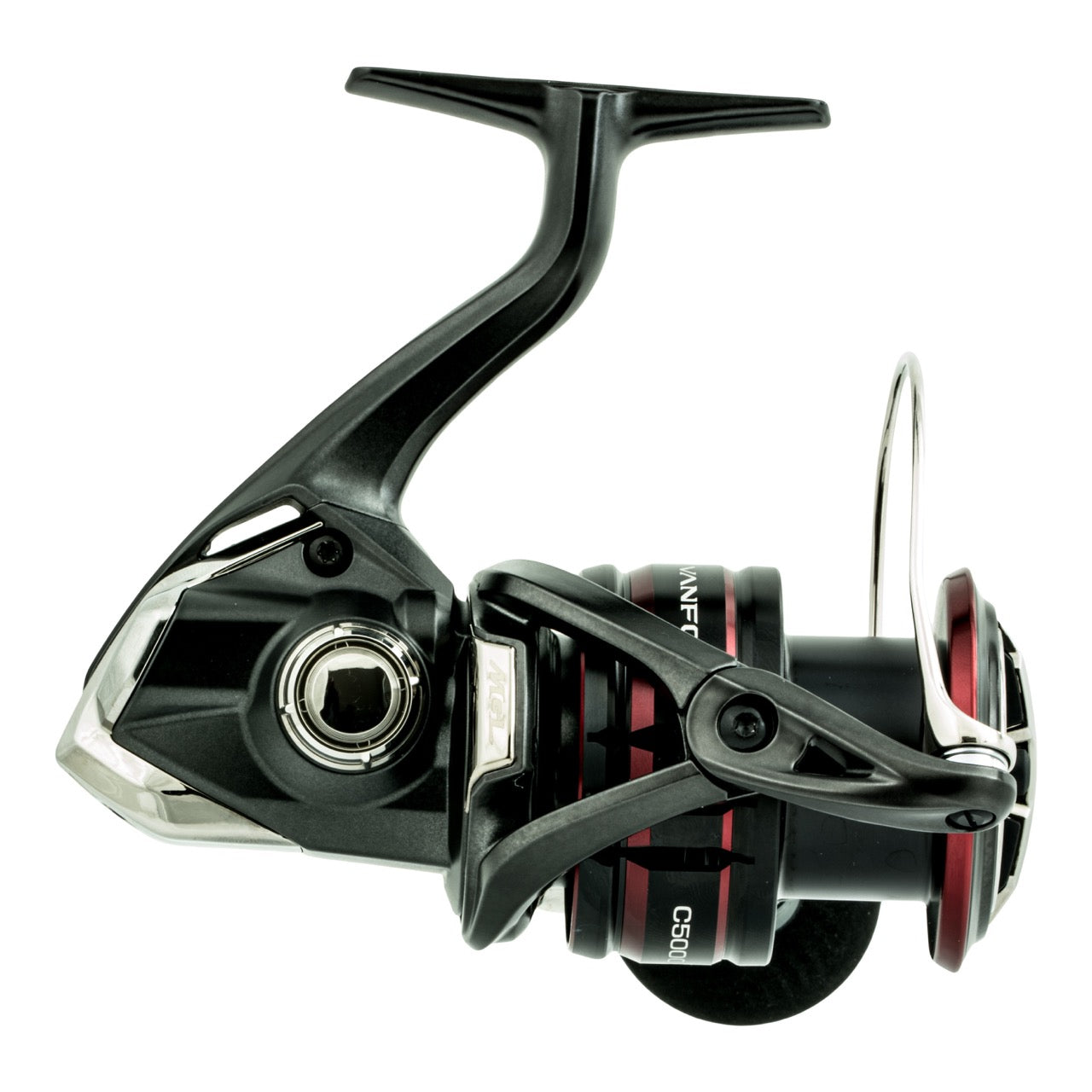

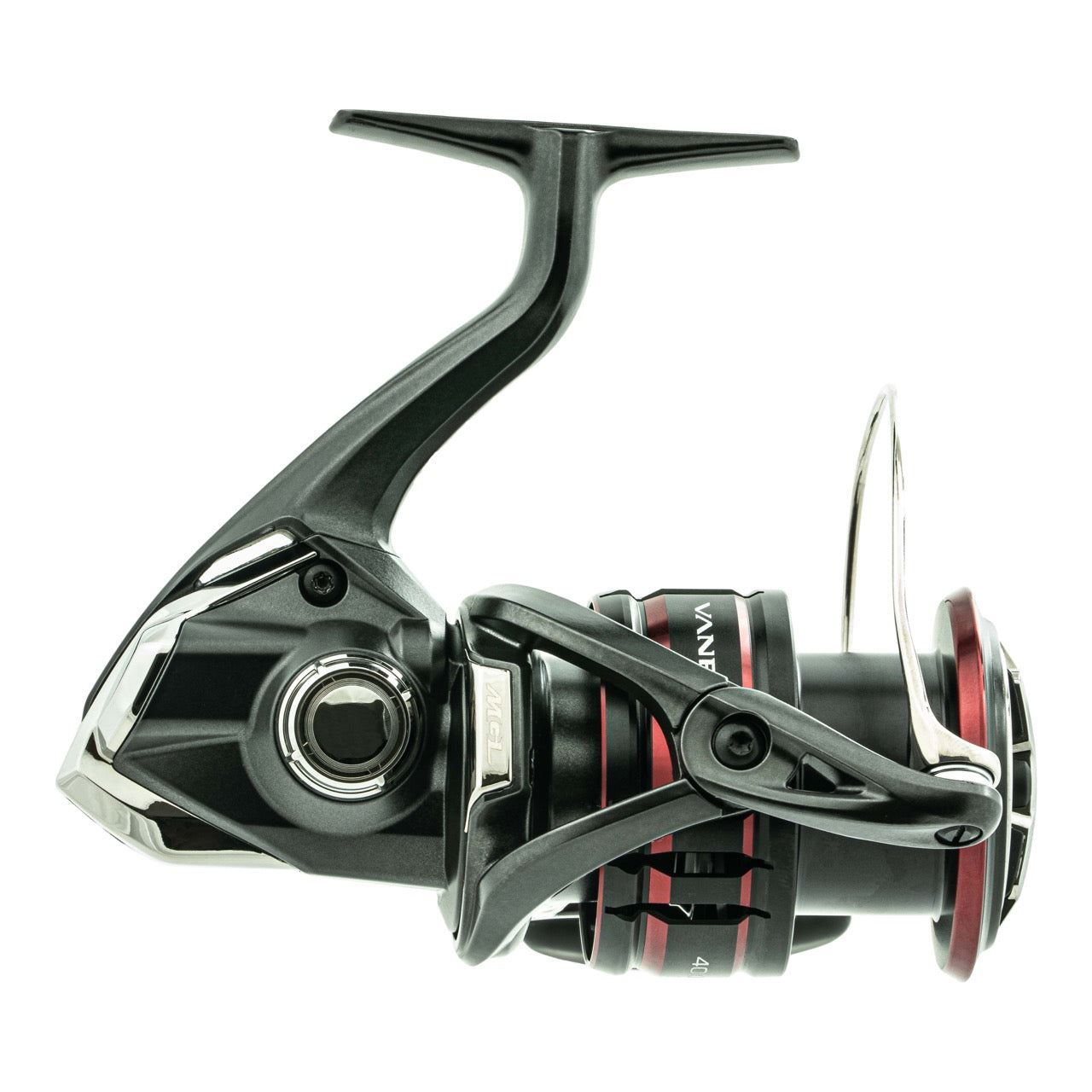

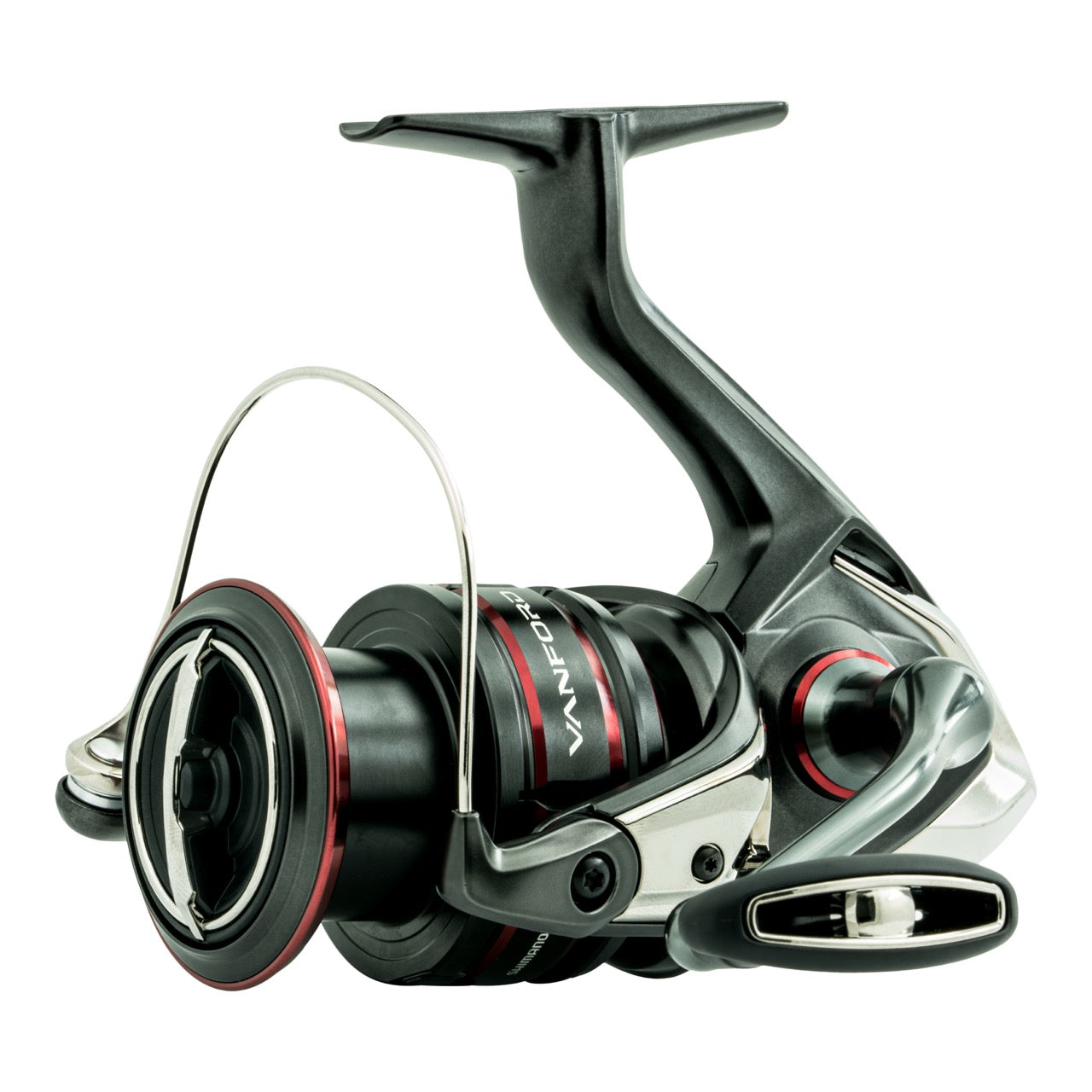

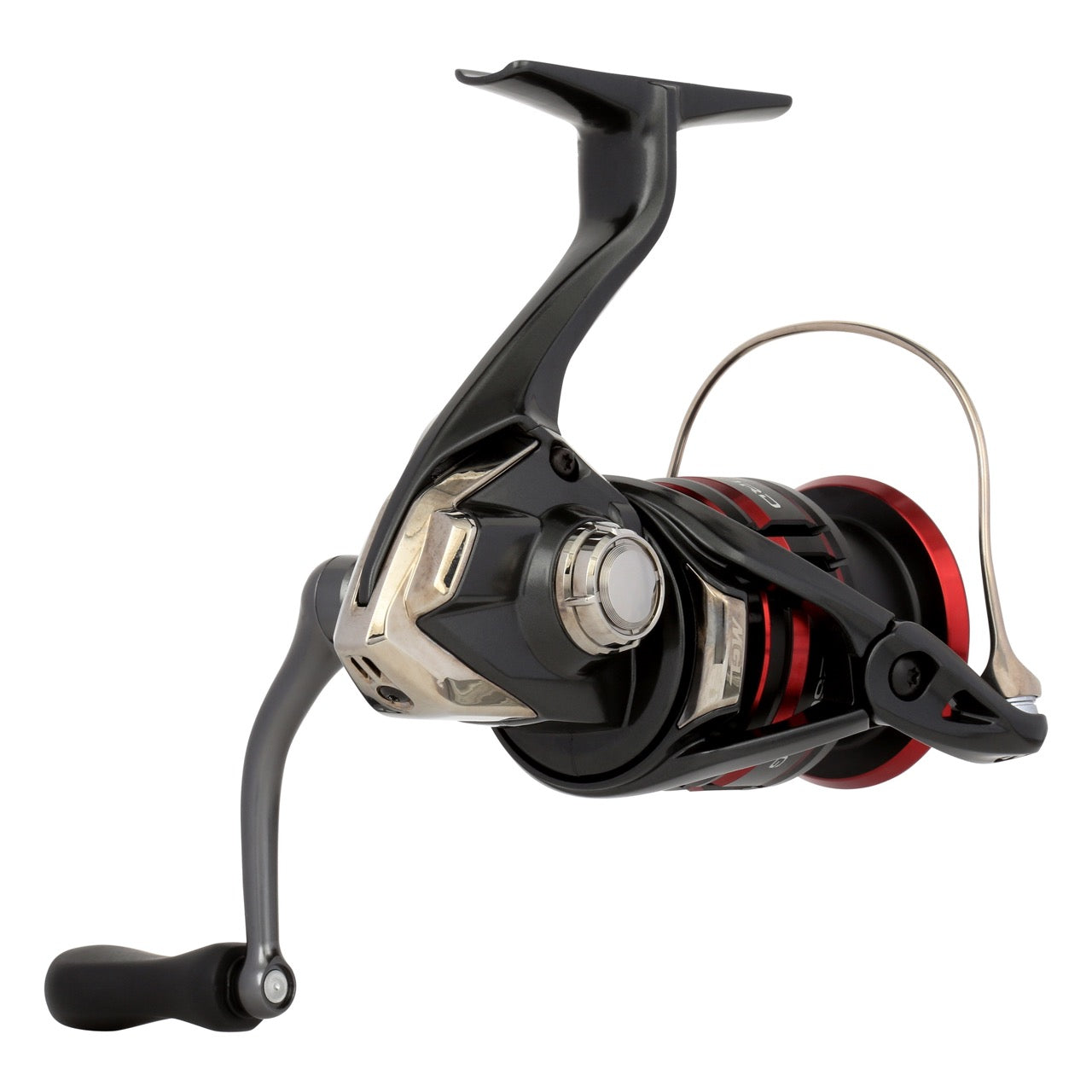

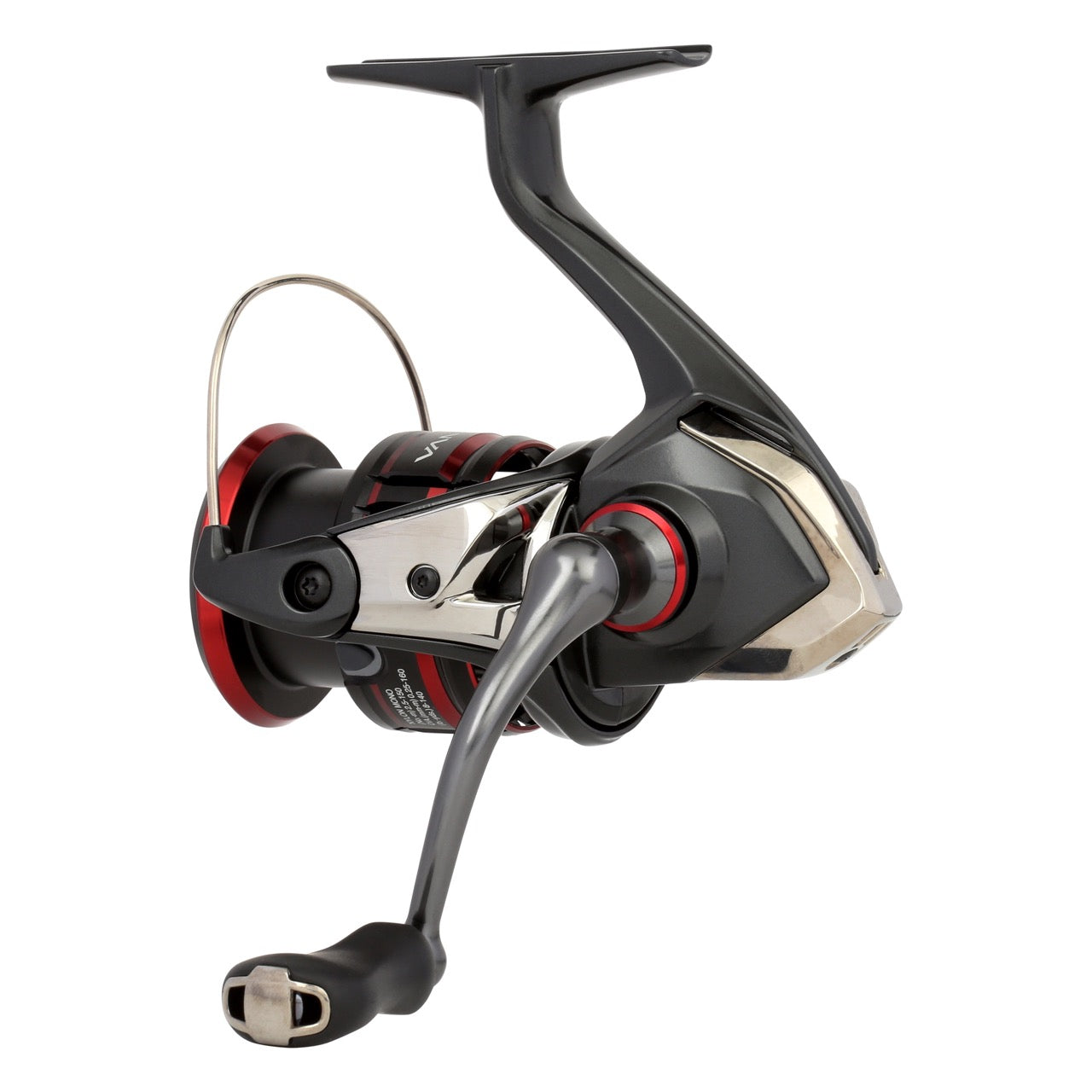

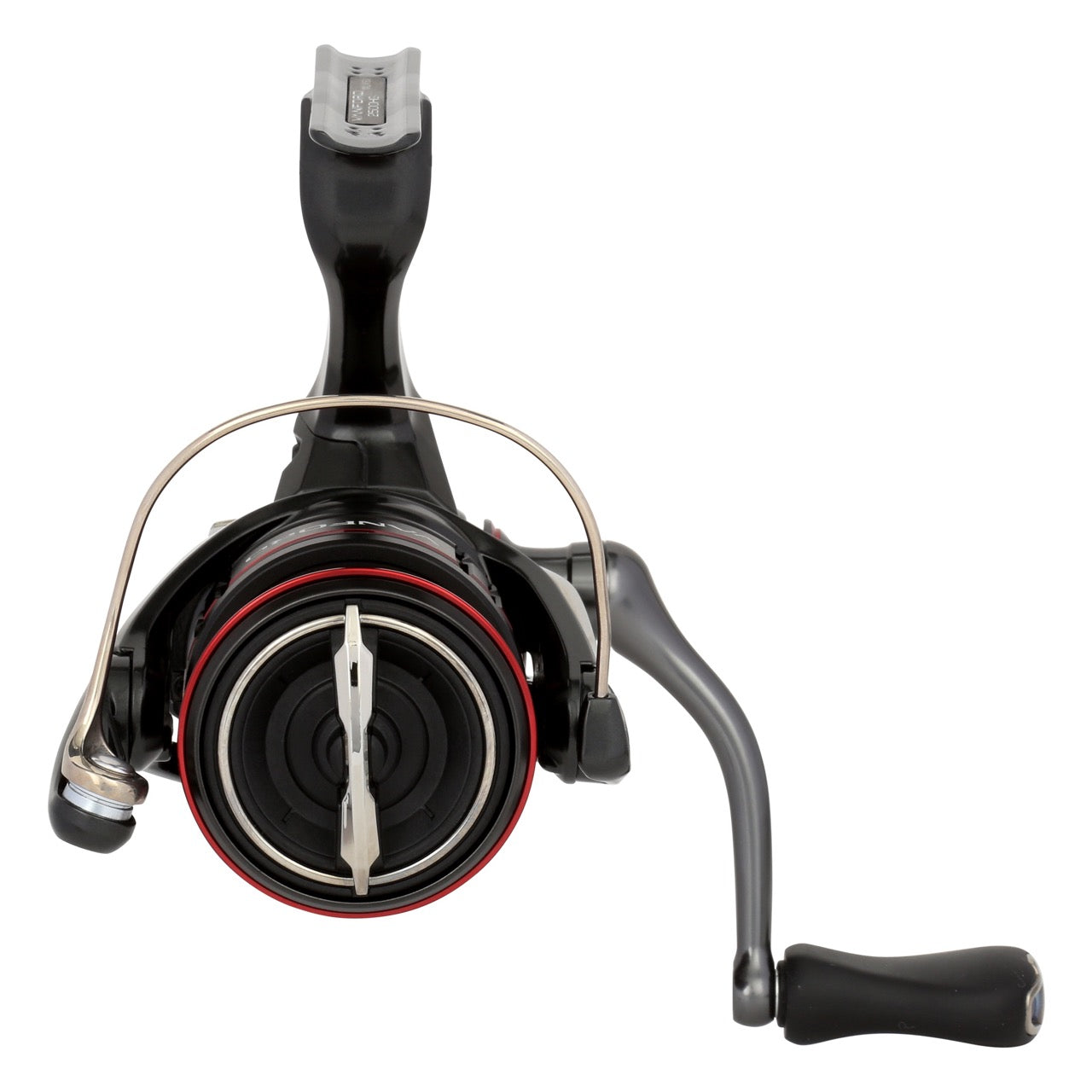

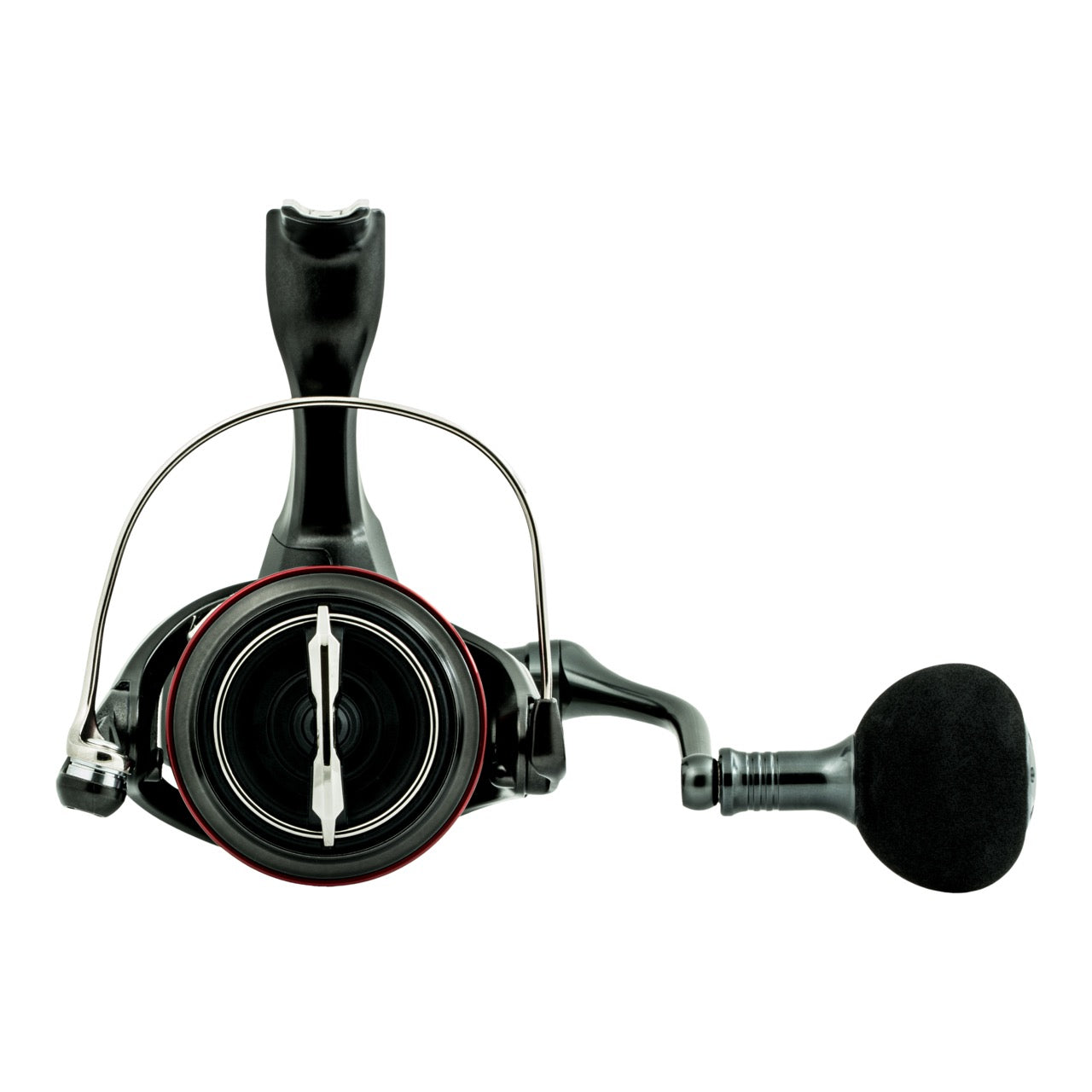

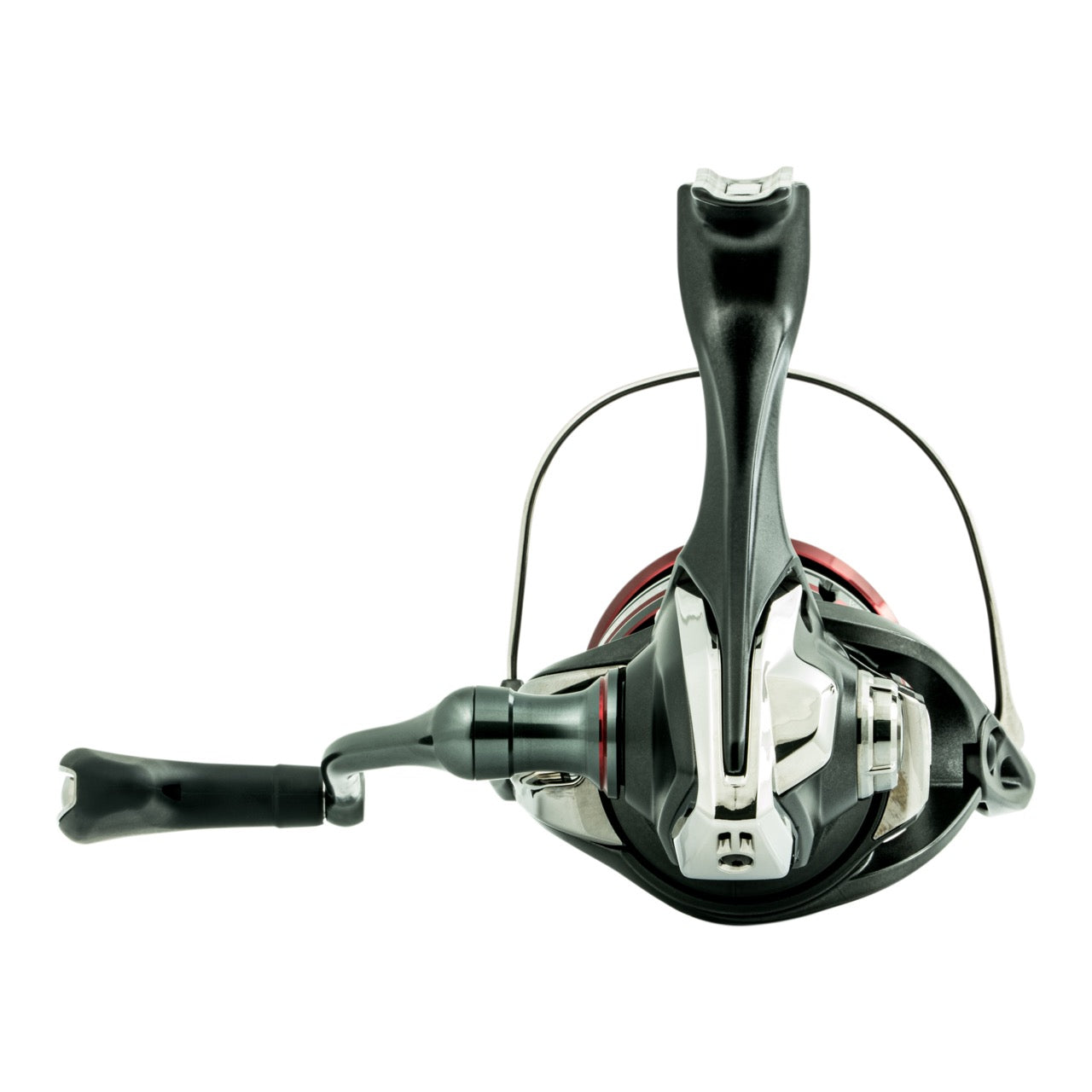

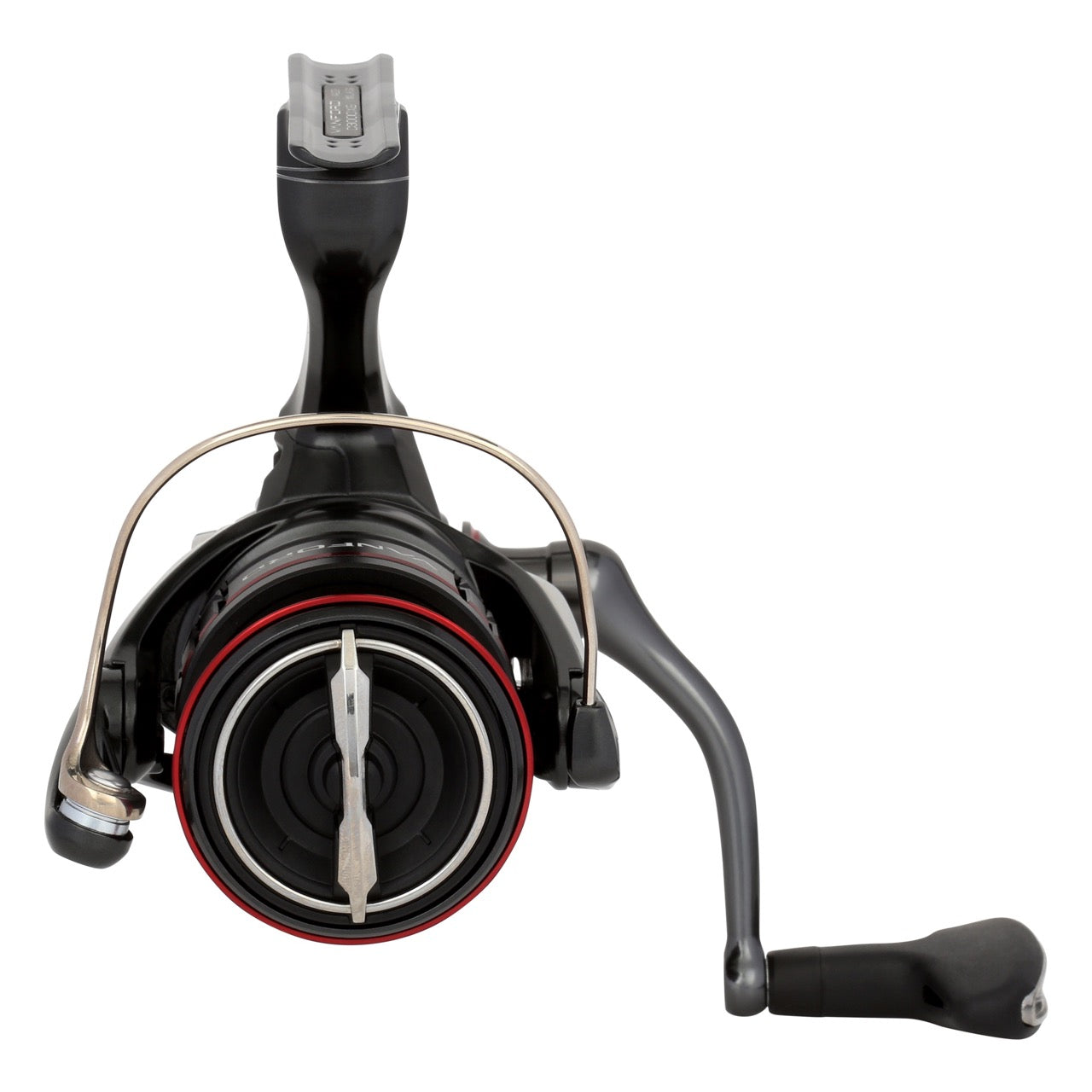

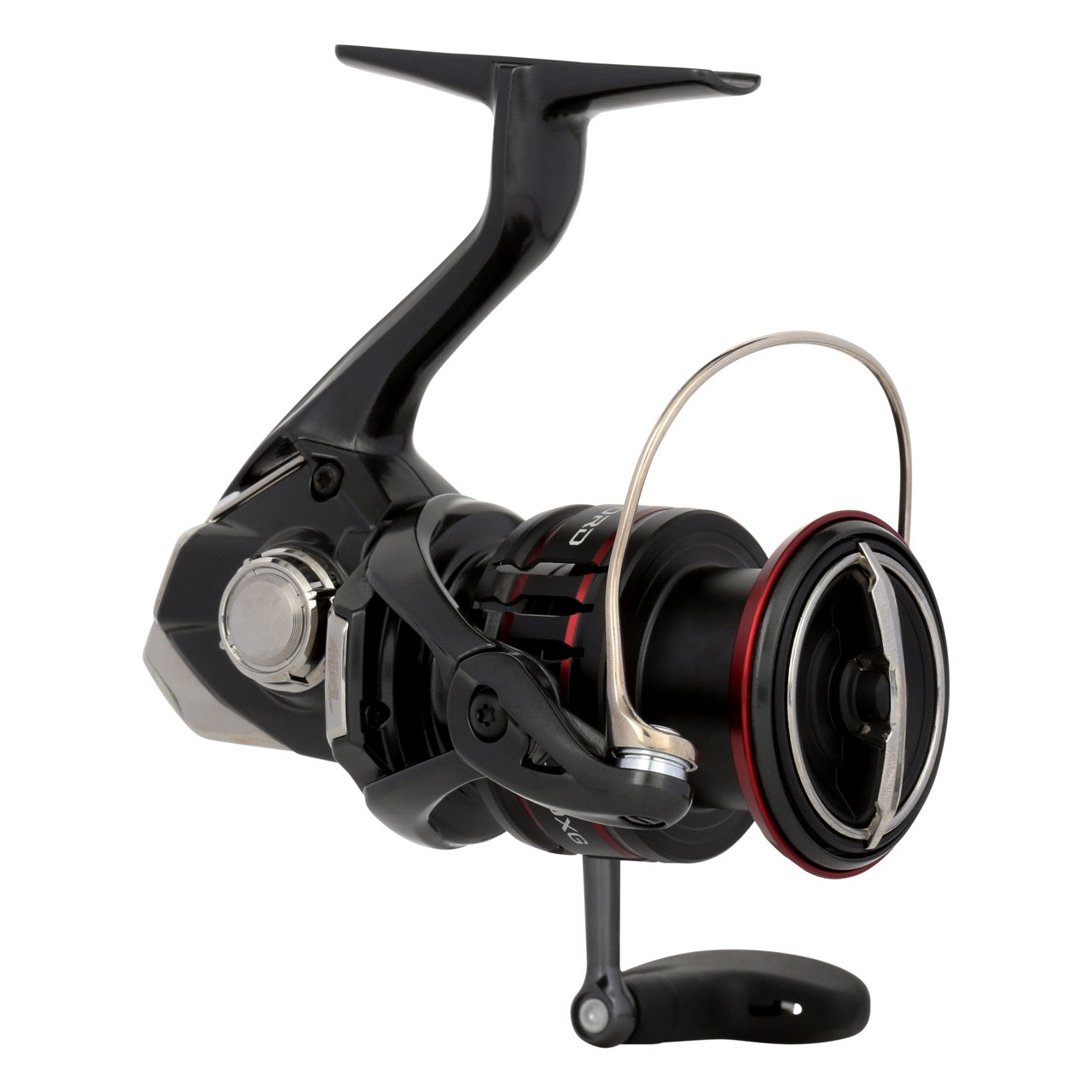

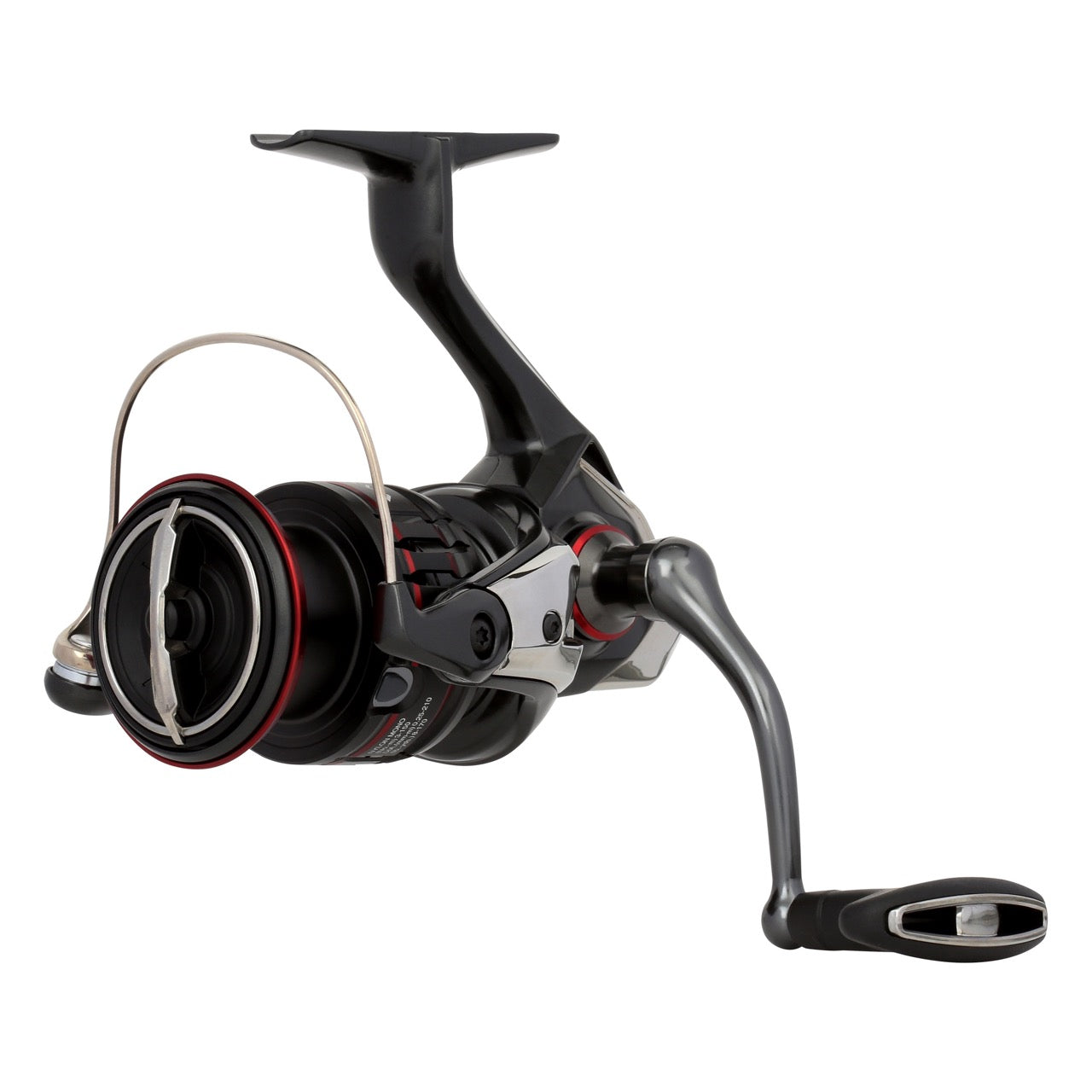

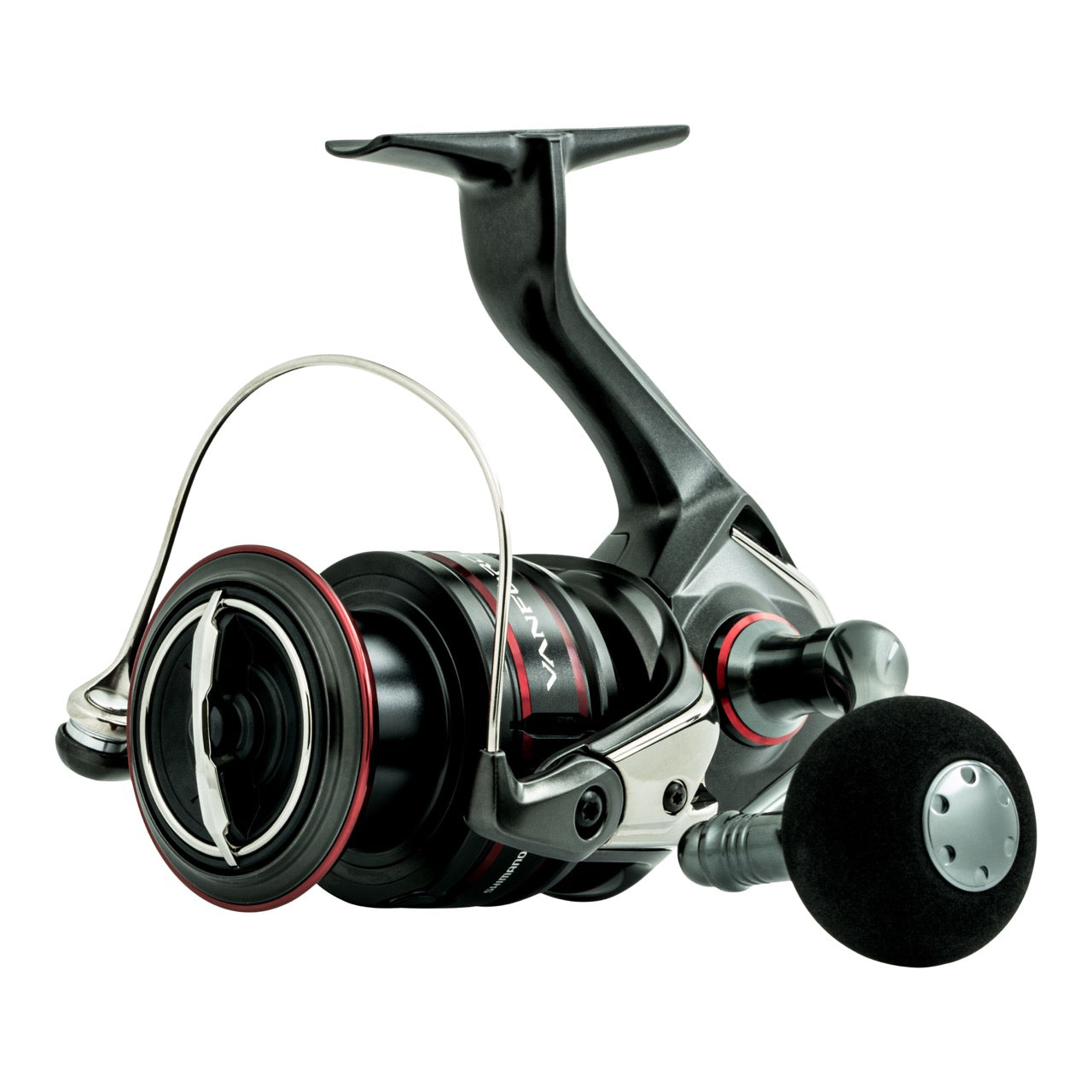

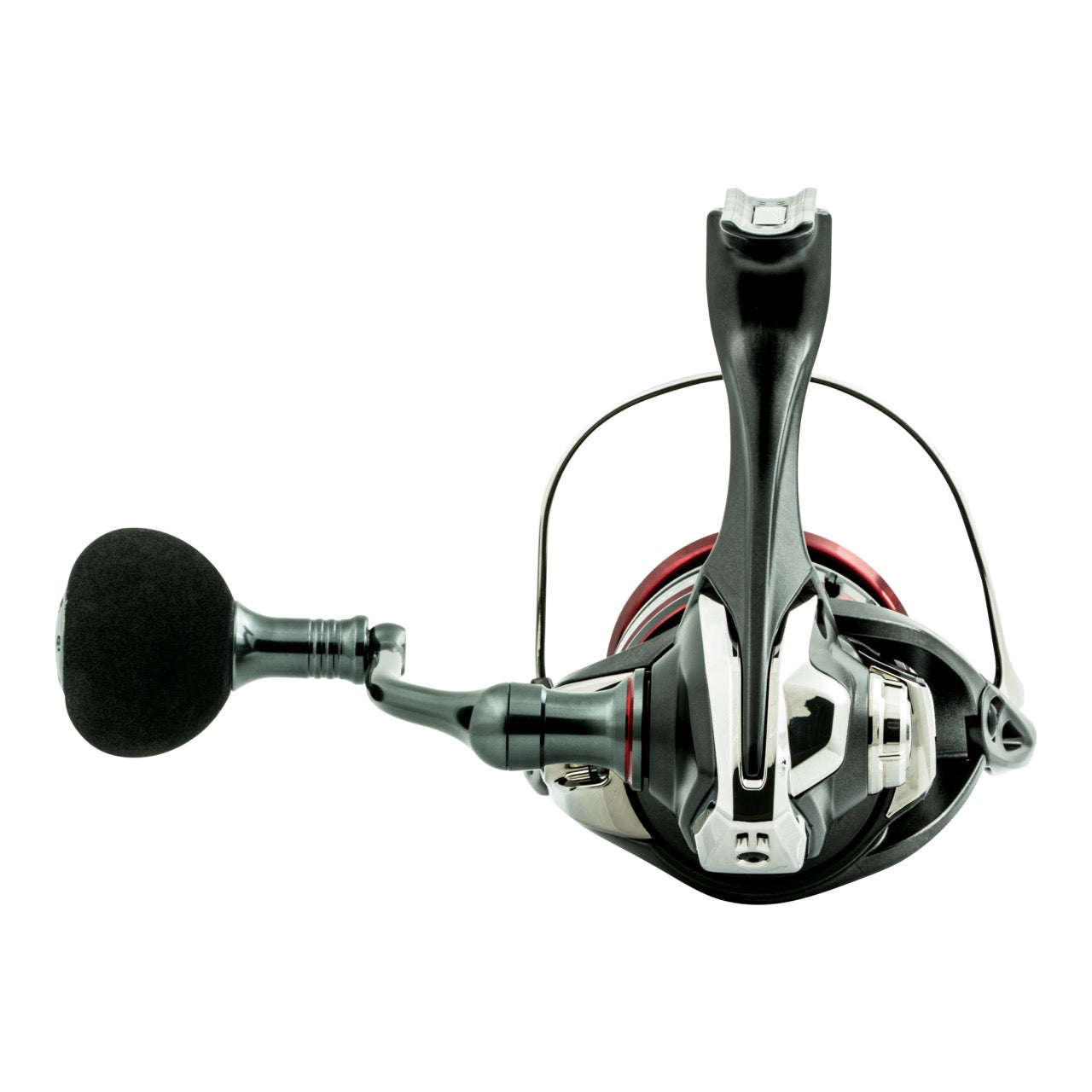

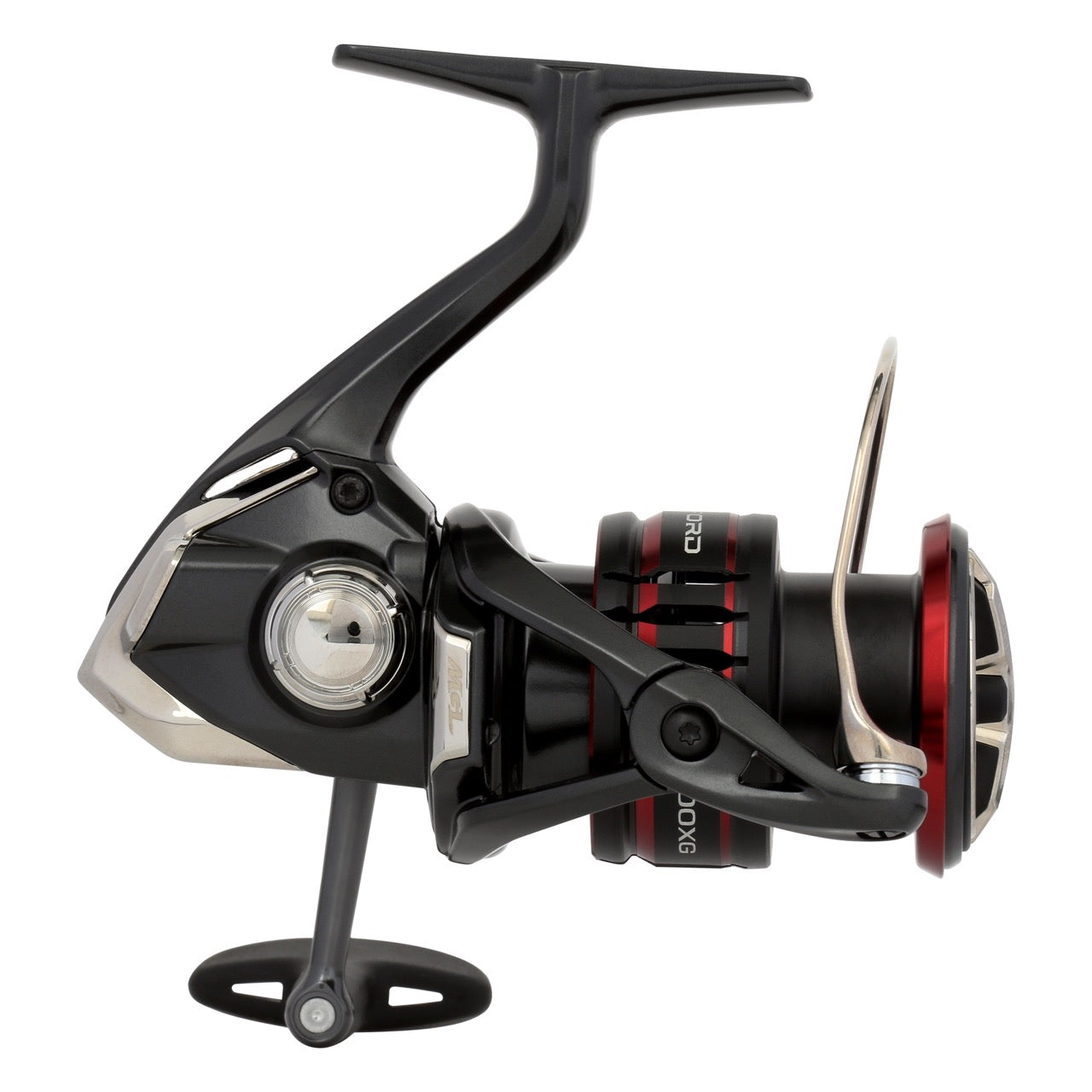

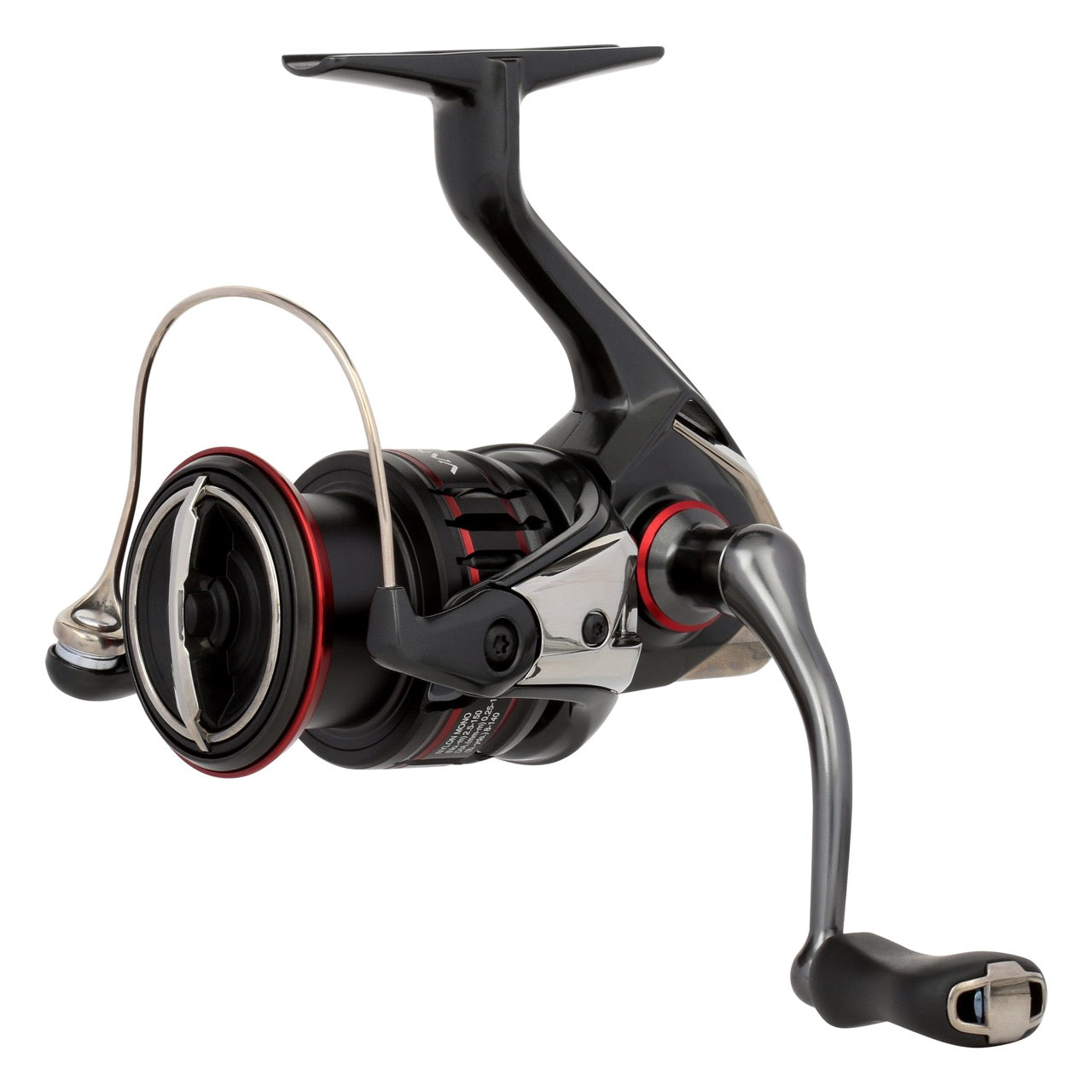

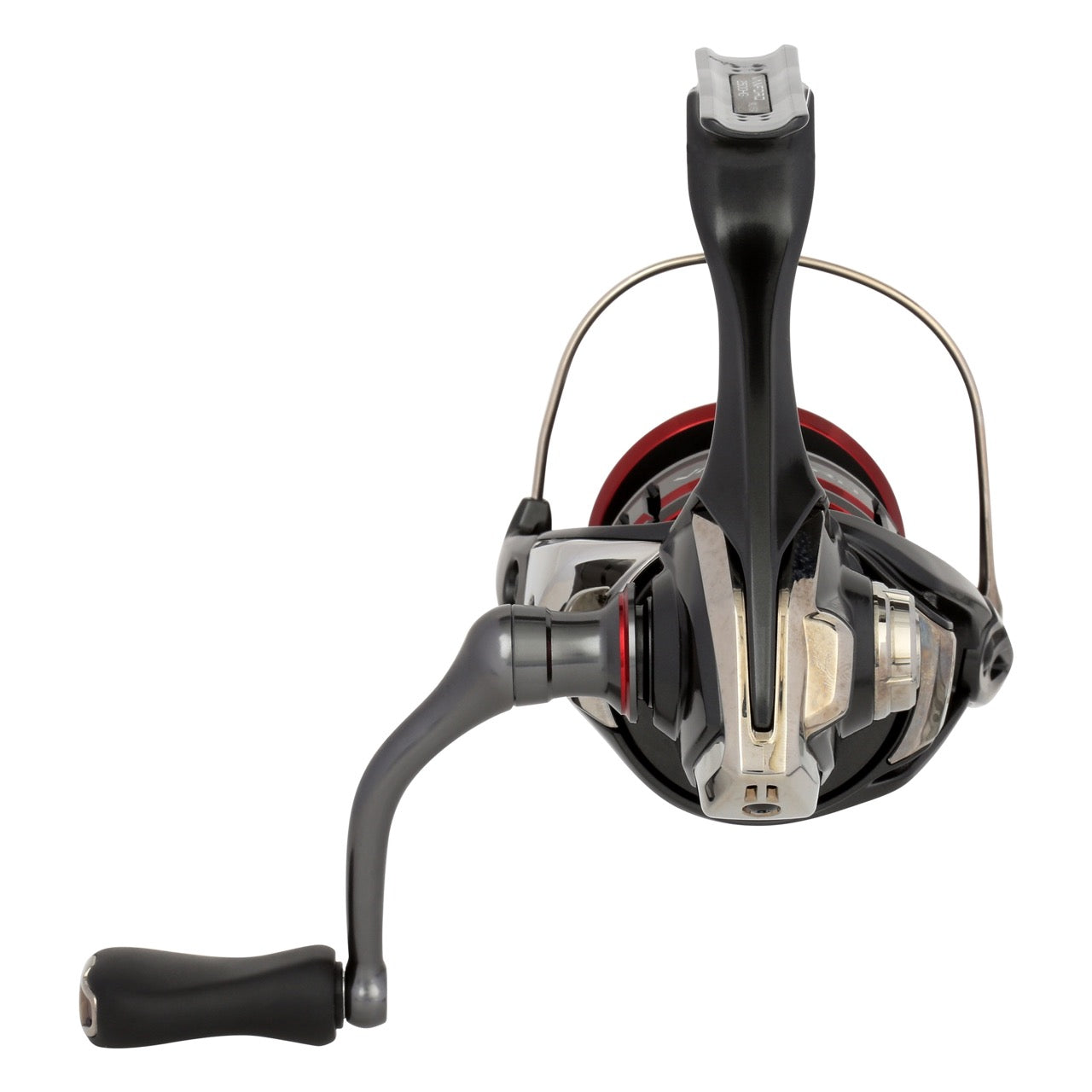

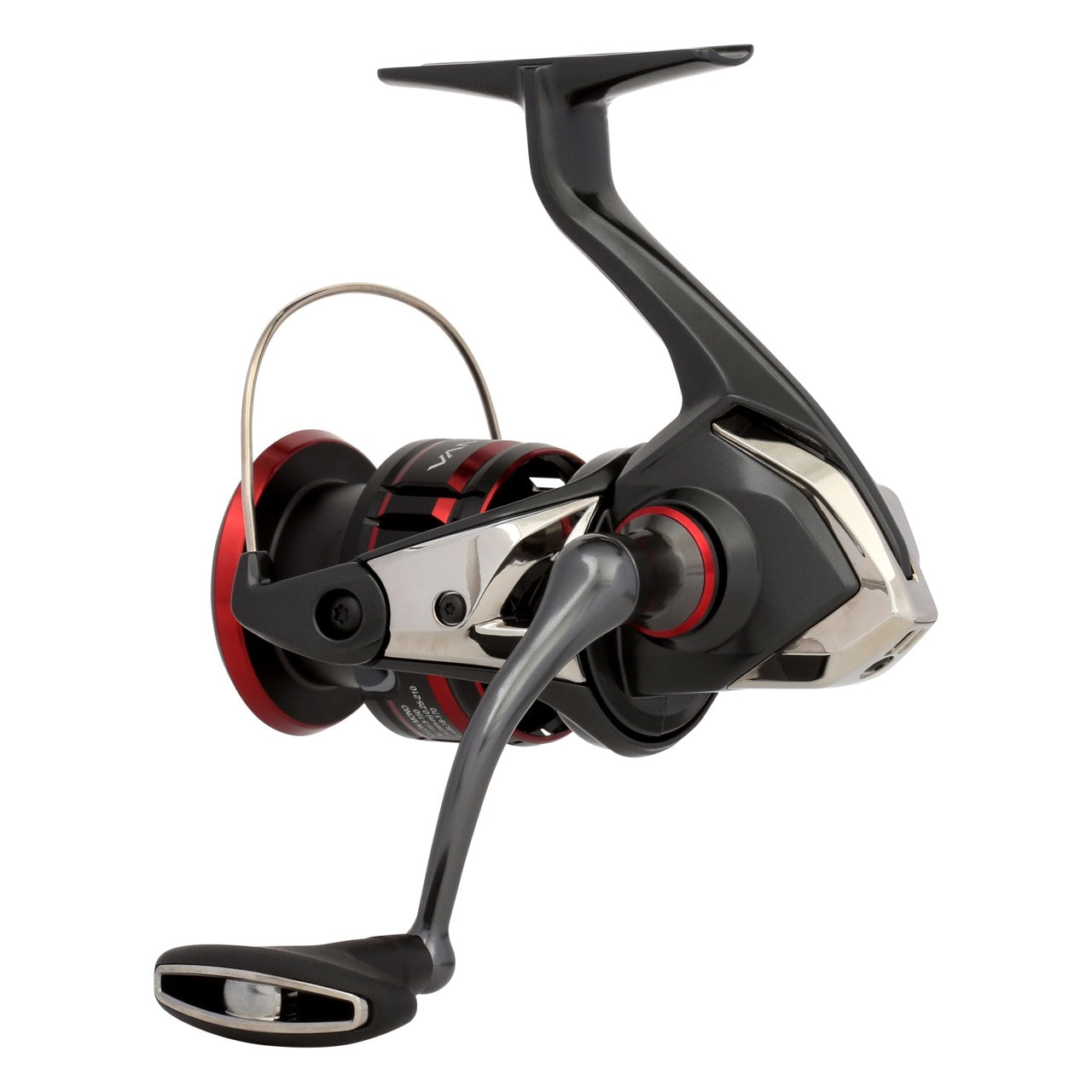

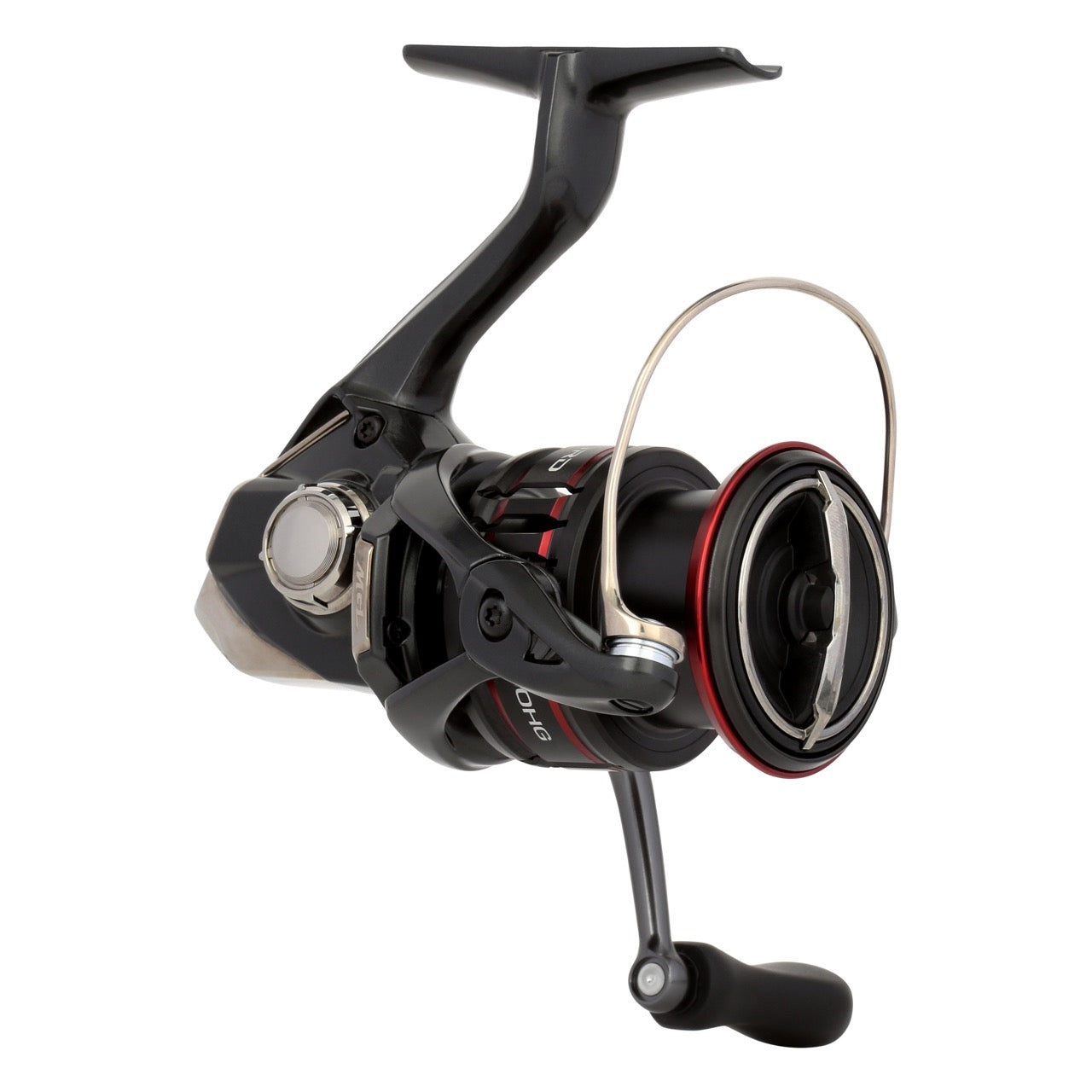

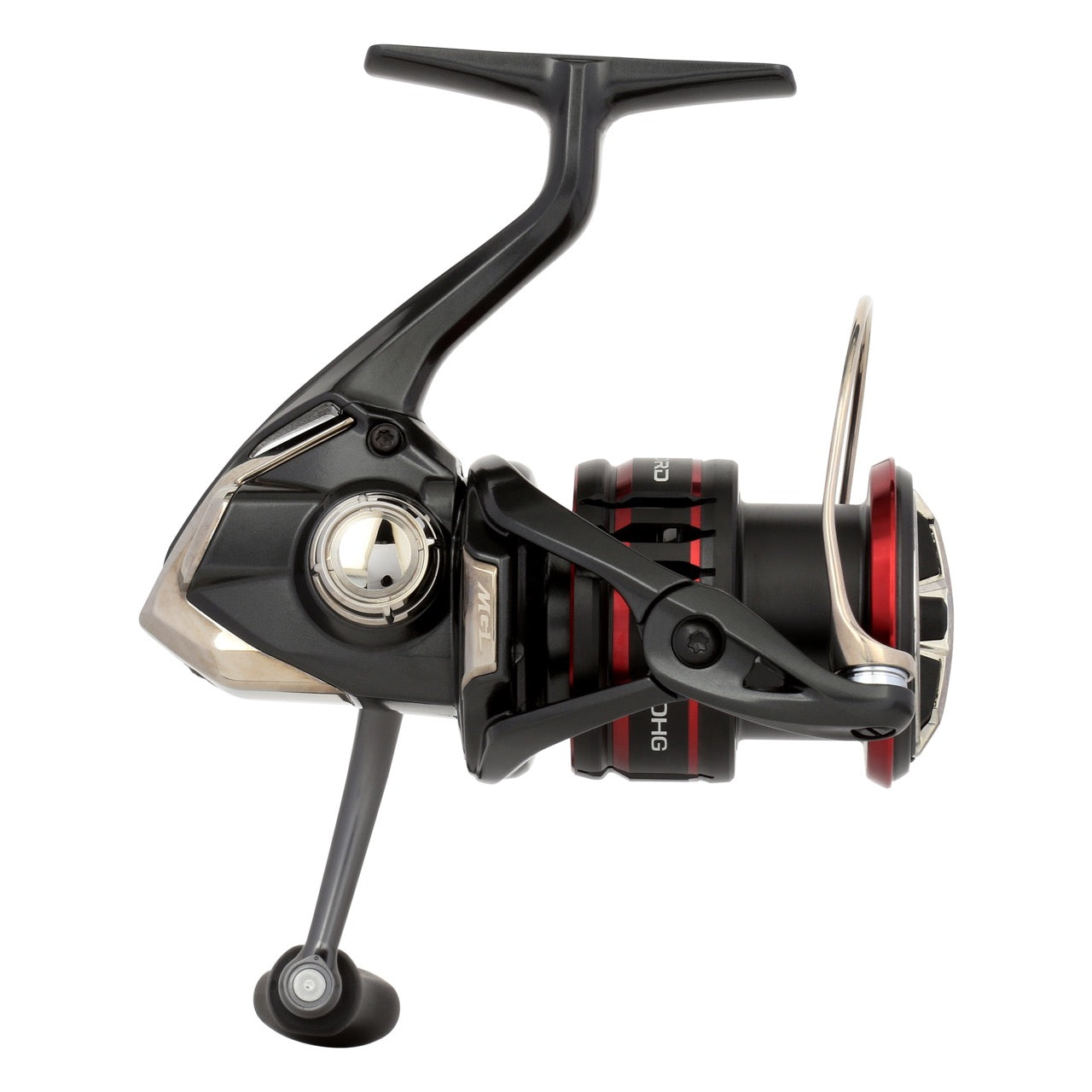

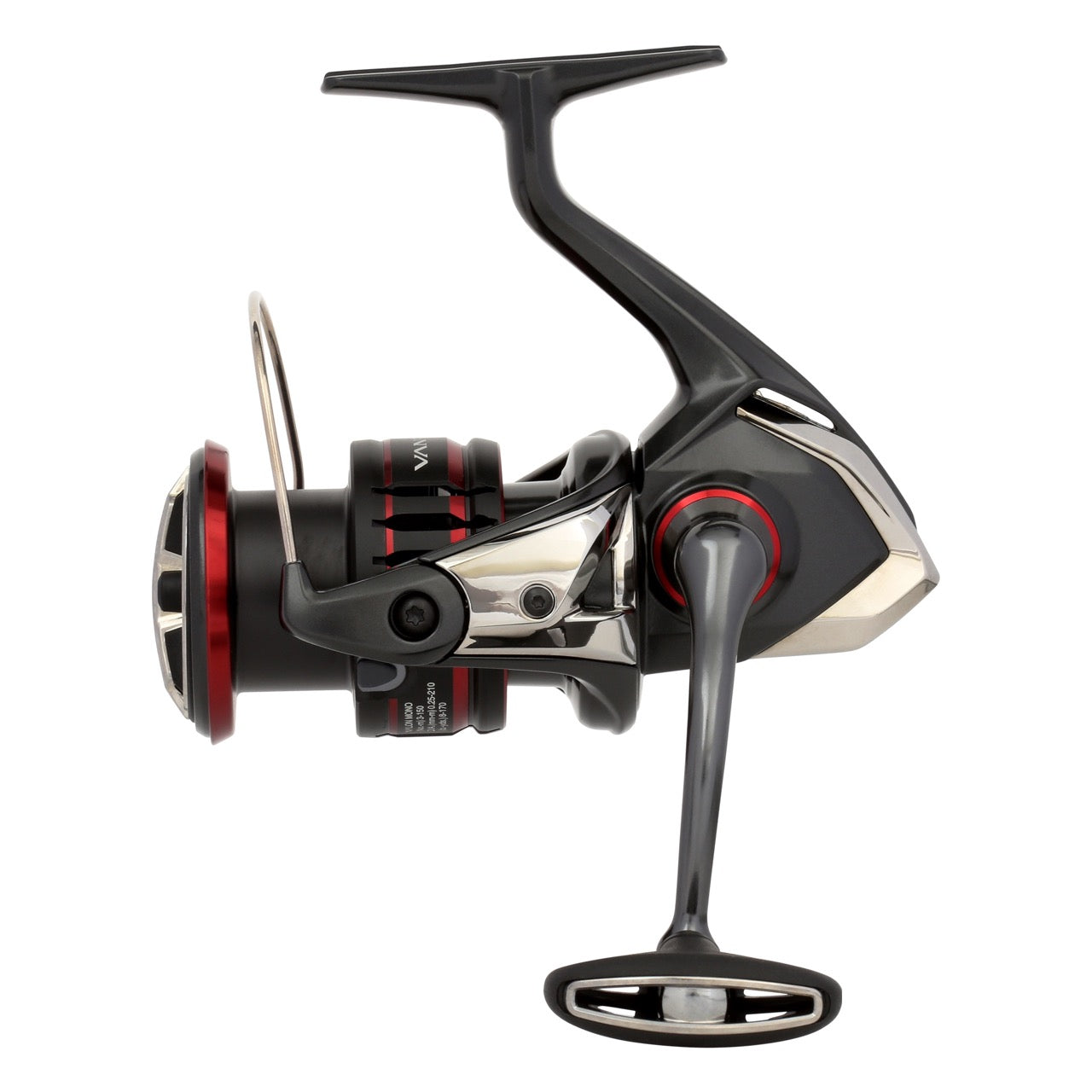

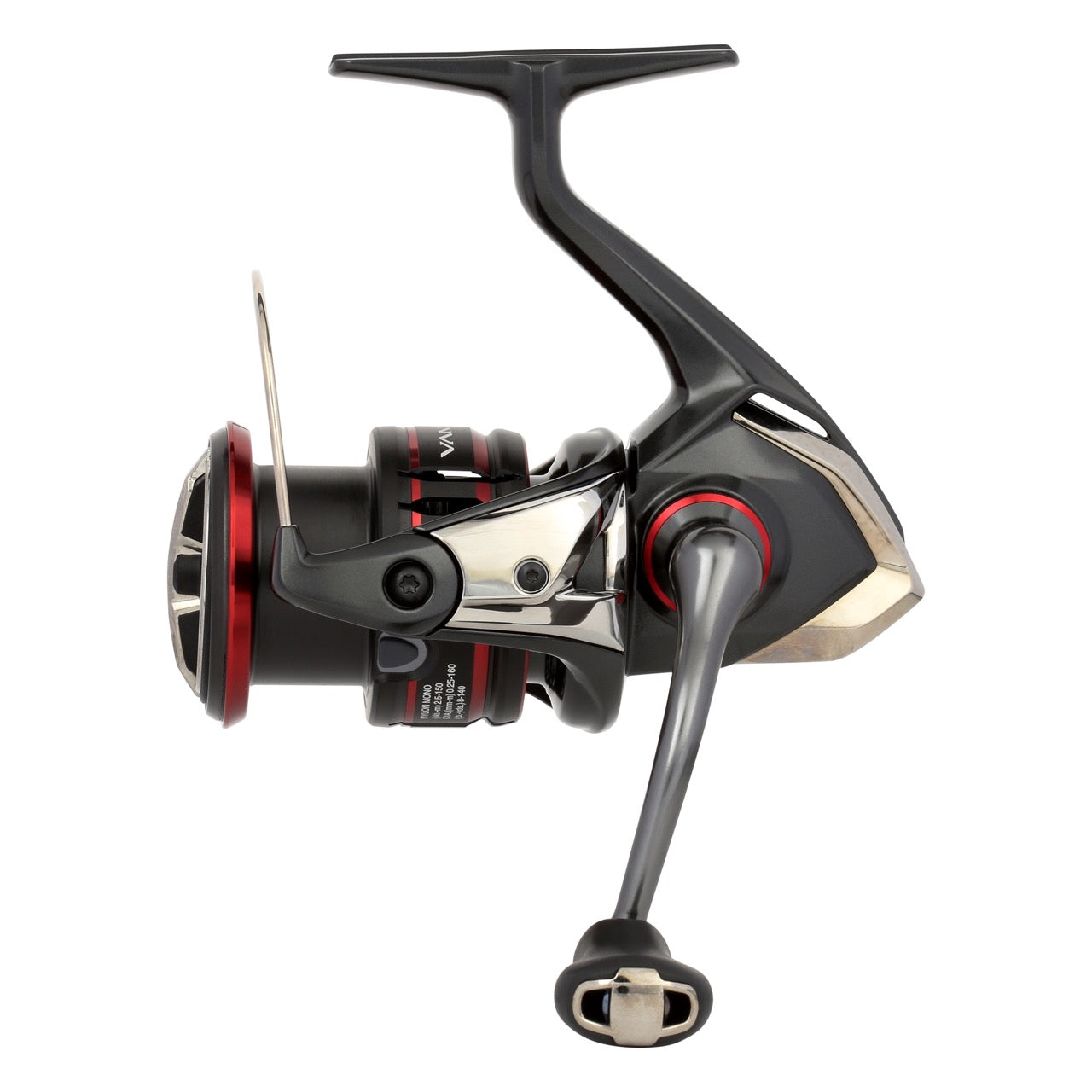

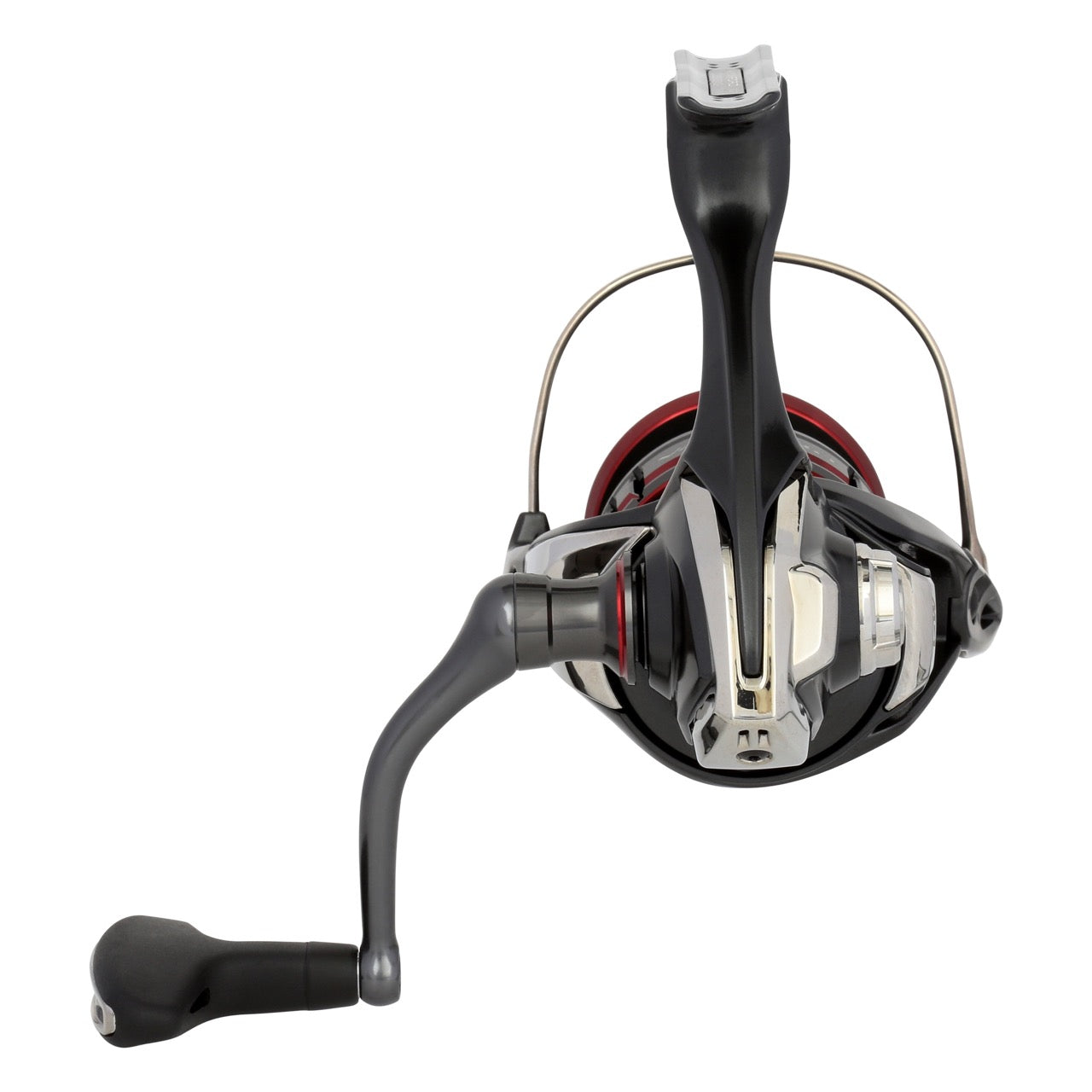

Shimano - Vanford F Spinning Reels

Sculpted from over a decade of engineering advancement and a rich lineage of predecessors, the new Vanford tests the boundaries of technology and engineering found in spinning reels. A legend is born.

Built upon a CI4+ body for both a lightweight feel and carbon rigidity, the Vanford incorporates a MagnumLite (MGL) Rotor for up to 48% less rotational inertia than traditional rotor construction for a quick response in critical situations. The Vanford features Shimano’s cold-forged HAGANE Gear and many of Shimano’s premium technologies for increased fishing performance and years of durability. Vanford’s SilentDrive and MicroModule Gear II technologies combine to produce a new level of smooth rotational performance while reducing overall reel vibration. Vanford also incorporates Long Stroke Spool technology to increase casting distance while producing a smoother line lay on the spool during retrieval. X-Protect technology and water-channeling construction enhance Vanford’s water resistance and overall durability — an important feature for a reel sure to be found in inshore environments.

Features:

• CI4+ Body - CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.

• MGL Rotor - The new design of the MagnumLite Rotor produces unprecedented light rotation. The rotor profile — which was previously symmetrical — is now asymmetrical, and the bail arm mechanism — previously situated on the same side as the line roller — has been moved to the opposite side. This ultimately improves the overall balance. Combined with a lightweight line roller, titanium bail and optimum arrangement of rotor thickness, the MGL rotor achieves a 14% reduction in rotational inertia to increase sensitivity to unprecedented levels. But the evolution of rotors is not limited to just reduced weight, the rotor rigidity on the line-roller side is an important performance factor as well. When compared to conventional models, the rigidity for the MGL Rotor is up to 30% higher and contributes to enhanced drag performance.

• HAGANE Gear - With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.

• MicroModule Gear II - Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.

• SilentDrive - SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.

• X-Protect - X-Protect provides high-level water resistance without sacrificing light gear and rotor rotation. By combining Shimano’s water-repellent coating with a water-channeling labyrinth construction, X-Protect provides added durability in tough conditions.
• G-Free Body - G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.

• X-Ship - X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

• Long Stroke Spool - The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.
• Propulsion Line Management System - The most obvious component of the Propulsion Line Management System is the new Propulsion Spool Lip design. Through tens of thousands of casting tests and computer simulations, Shimano’s new spool lip design provides longer casting distances than a standard spool lip design while also preventing backlashes and wind knots from forming.

• Aero Wrap II - This two-speed oscillation system layers the line onto the spool in a precise crisscross pattern that reduces line-to-line friction for longer casts. Reels with Aero Wrap II technology utilize a patented worm gear design to move the spool upward quickly and downward slowly to wind the line in a precise pattern, reducing friction and giving anglers smoother and longer casting ability.

• Cross Carbon Drag (C3000-C5000) - The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
• Water Resistant Drag - to ensure durability and consistency in extreme conditions.

• One-Piece Bail (Titanium) - One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.

• S A-RB Bearings - S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.

Specifications:
